TEHALIT.VE-EE Hinged cover plate assembly E04 147X247 8mm black PA KDE04089005

local index:
MAV022TEHA
Catalog No:
KDE04089005
EAN code:
4012002247242
Manufacturer: TEHALIT
Halogen free: Yes
Color: Black
Shape: Rectangular
Price:
28,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

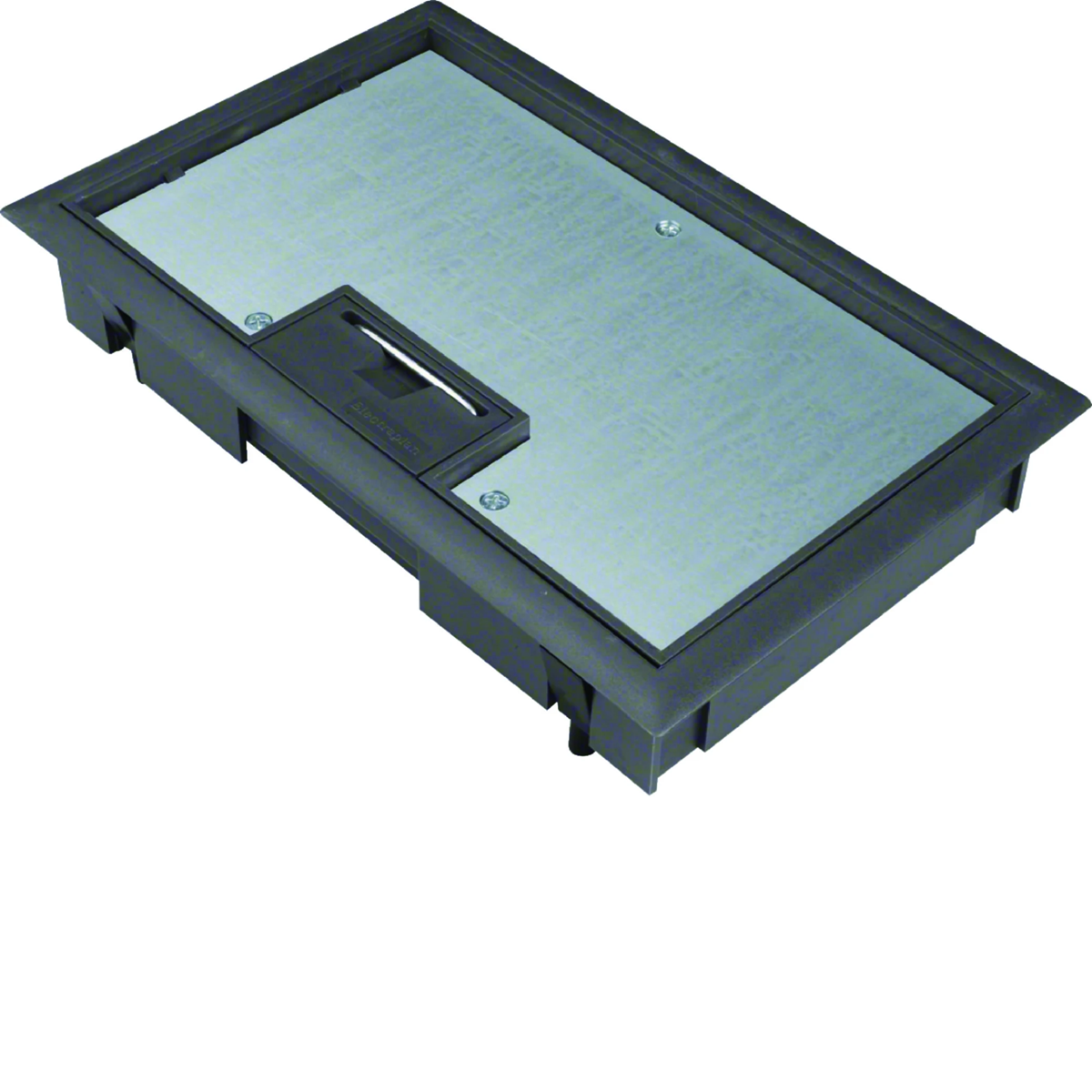

Hinged cover for shallow mounting, for dry-cleaned floors, series tehalit.VE-EE:

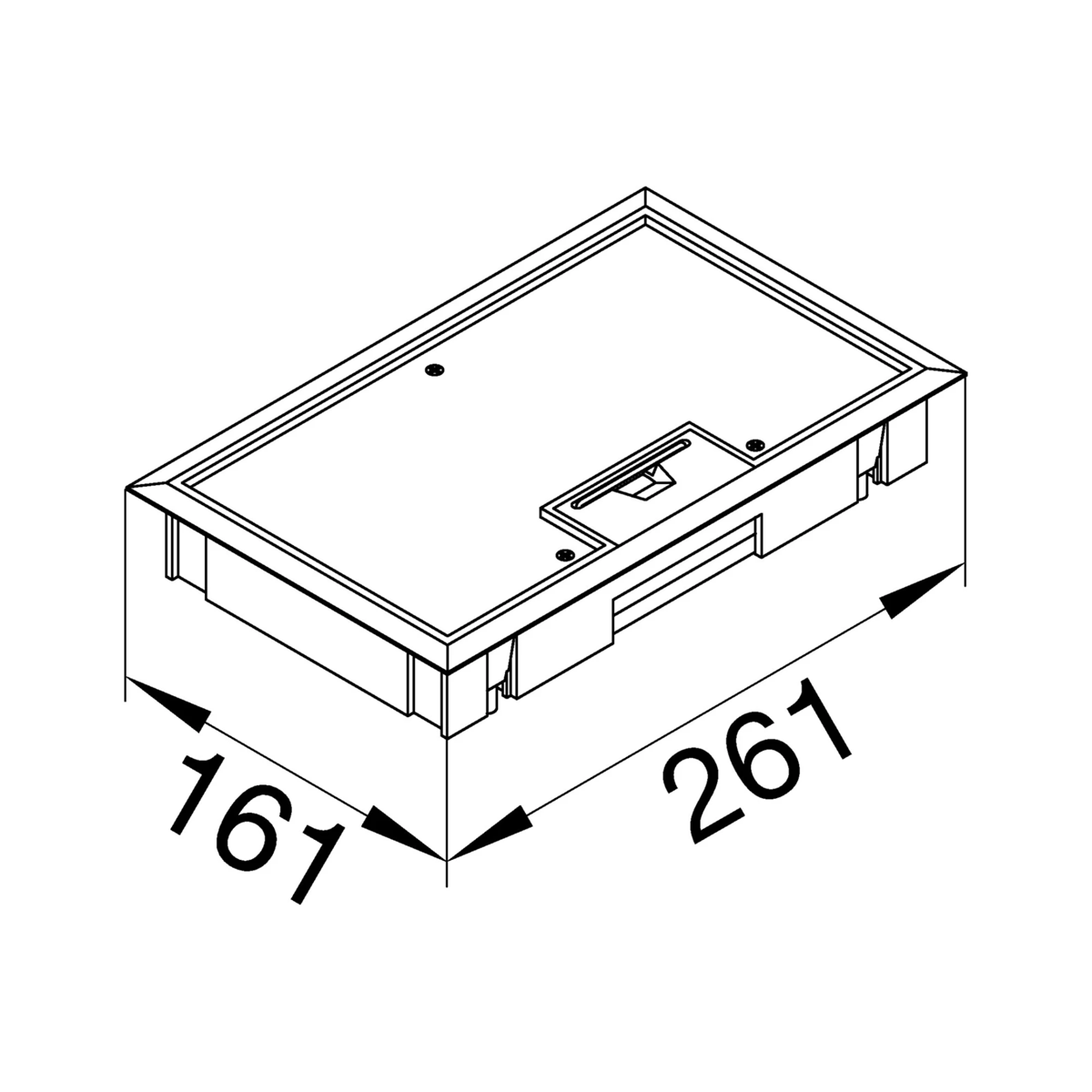

  • external dimensions: 261 x 161 mm
  • mounting dimensions: 247 x 147 mm
  • up to 4 devices in 2 GBES2 boxes (minimum mounting depth 50 mm) or GBM5050 (minimum mounting depth 60 mm)
  • minimum installation depth: 50 mm
  • for 8 mm floor covering thickness

Series characteristics:

< p> A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Shape
    Rectangular
  • Family
    TEHALIT.VE-EE
  • How to use and clean the floor
    dry
  • Mounting dimension (width) [mm]
    247
  • Color
    Black
  • Material
    Plastic
  • Minimum installation depth [mm]
    53
  • Mounting dimension (length) [mm]
    147
  • PKWIU
    22.23.19.0

Other technical data

  • Number of device cups
    2
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    8 mm
  • Colour
    Black
  • Suitable for subfloor duct
    Yes
  • Suitable for double floor built-in
    No
  • Width outside dimension
    261 mm
  • Length built-in dimension
    147 mm
  • Min. built-in depth
    53 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    4
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • RAL-number
    9005
  • Suitable for hollow floor
    No
  • Suitable for wet cleaning
    No
  • Długość zewnętrzna
    161 mm
  • Width built-in dimension
    247 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 224 pcs.
Weight (kg) 0,949 0,950 4,220 261,320
Width (m) 0,261 0,165 0,240 0,800
Length (m) 0,062 0,055 0,270 1,050
Depth (m) 0,161 0,265 0,290 1,200
