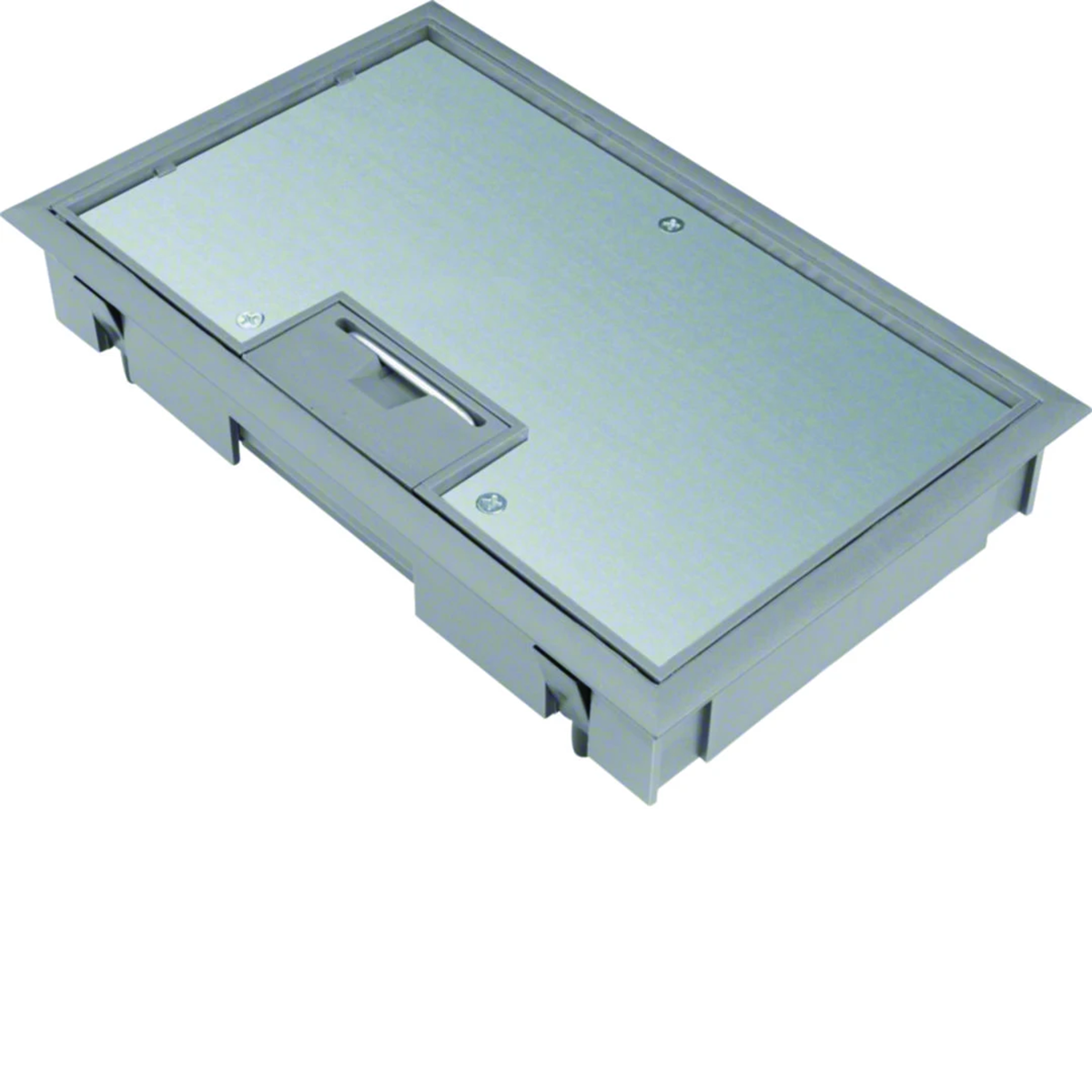

TEHALIT.VE-EE Hinged cover plate assembly E04 147X247 5mm gray steel PA KDE04057011

Indice locale:
MAV019TEHA
Numero di catalogo:
KDE04057011
Codice EAN:
4012002247211
Produttore: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Rectangular
Prezzo:
29,45 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Hinged cover for shallow mounting, for dry-cleaned floors, series tehalit.VE-EE:

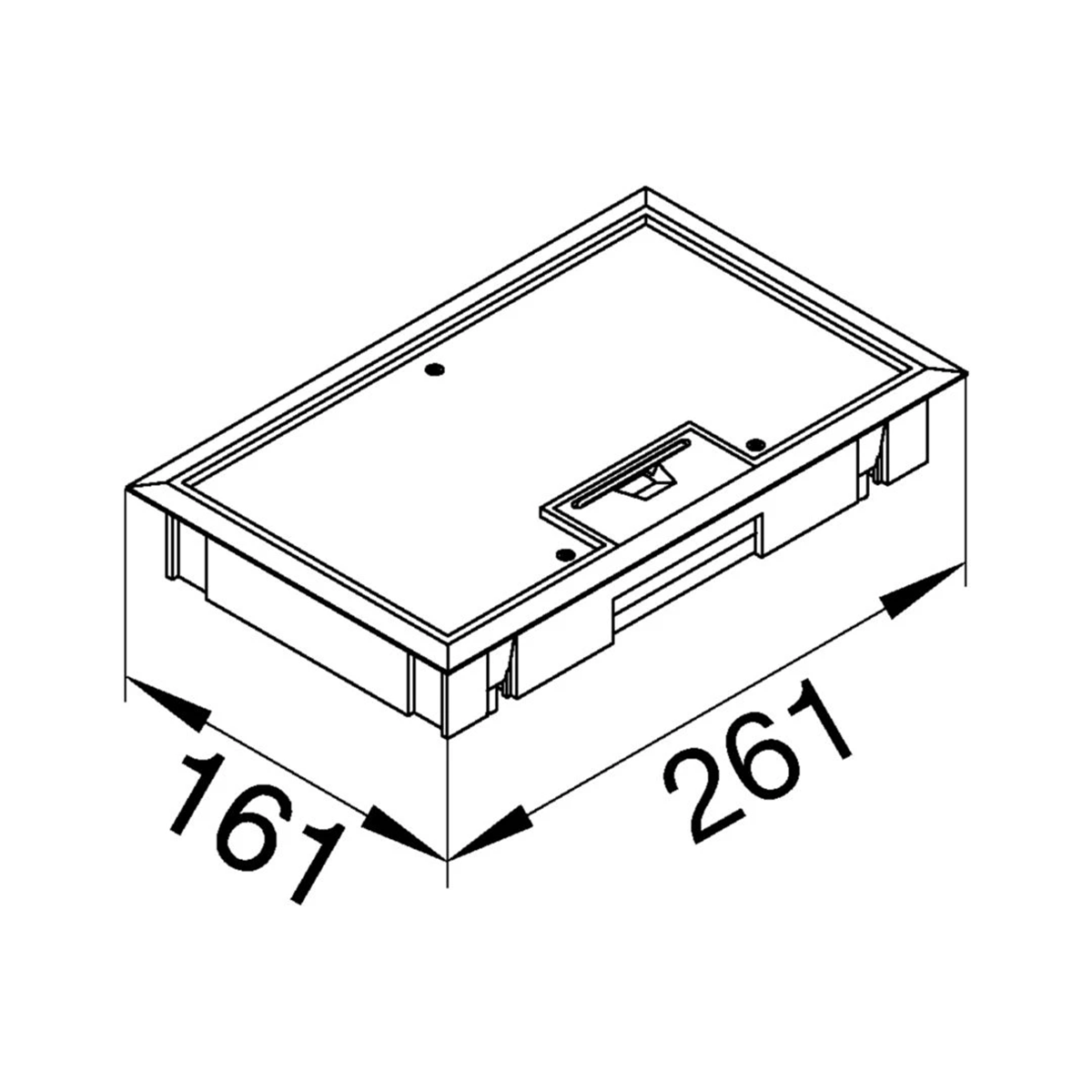

  • external dimensions: 261 x 161 mm
  • mounting dimensions: 247 x 147 mm
  • up to 4 devices in 2 GBES2 boxes (minimum mounting depth 50 mm) or GBM5050 (minimum mounting depth 60 mm)
  • minimum installation depth: 50 mm
  • for 5 mm floor covering thickness

Series characteristics:

< p> A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Dati tecnici

  • Halogen free
    Yes
  • Shape
    Rectangular
  • Family
    TEHALIT.VE-EE
  • Minimum installation depth [mm]
    50
  • Mounting dimension (length) [mm]
    147
  • PKWIU
    22.23.19.0
  • Color
    Silver
  • Material
    Plastic
  • Accurate color
    Steel
  • How to use and clean the floor
    dry
  • Mounting dimension (width) [mm]
    247

Altri dati tecnici

  • Number of device cups
    2
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    5 mm
  • Colour
    Grey
  • Suitable for subfloor duct
    Yes
  • Suitable for double floor built-in
    No
  • Width outside dimension
    261 mm
  • Length built-in dimension
    147 mm
  • Min. built-in depth
    50 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    4
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • RAL-number
    7011
  • Suitable for hollow floor
    No
  • Suitable for wet cleaning
    No
  • Długość zewnętrzna
    161 mm
  • Width built-in dimension
    247 mm

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 1 pezzi 4 pezzi 224 pezzi
Peso (kg) 0,944 0,945 4,170 256,520
Larghezza (m) 0,261 0,170 0,200 0,800
Lunghezza (m) 0,050 0,055 0,250 1,020
Profondità (m) 0,161 0,270 0,290 1,200
