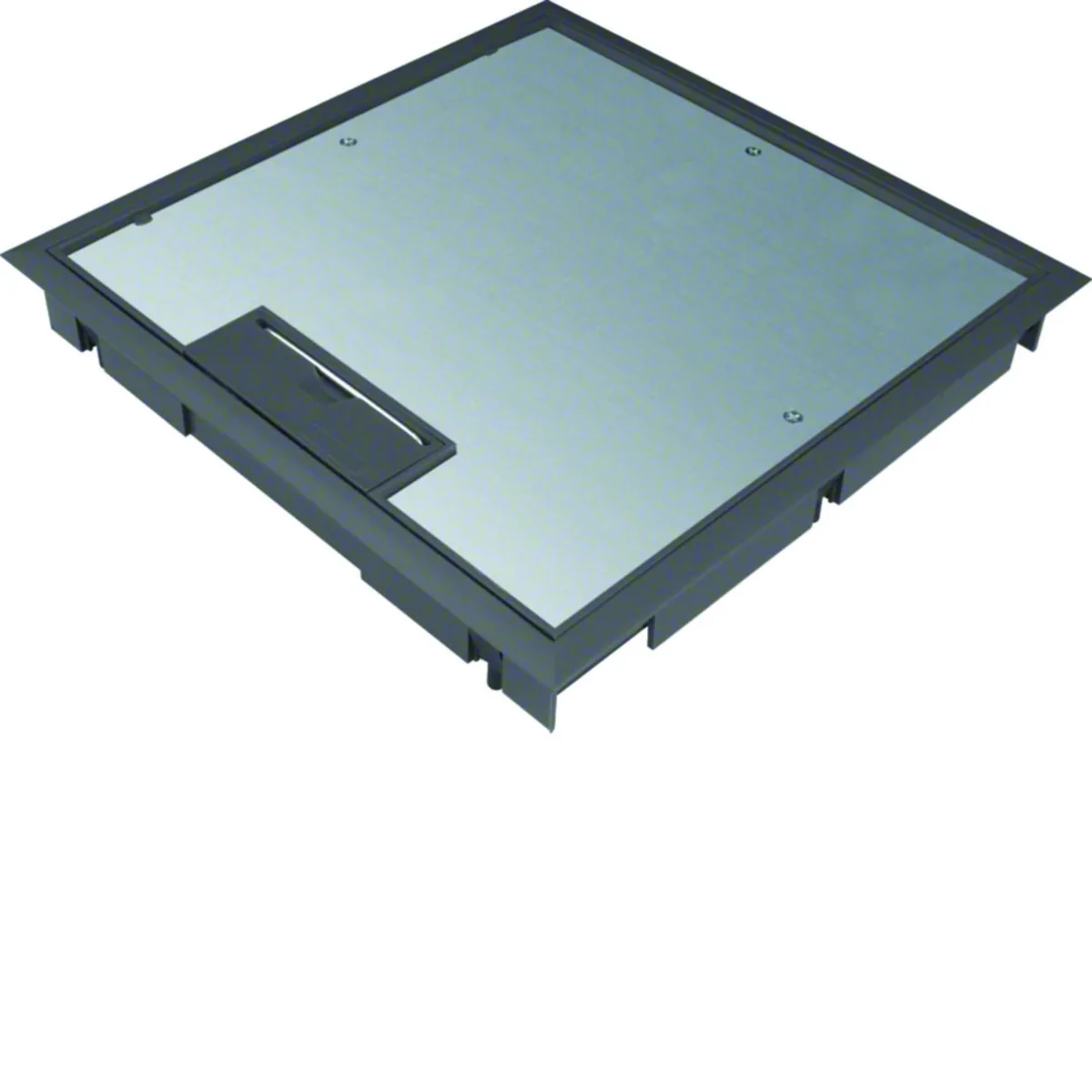

TEHALIT.VE-EE Hinged cover for mounting plate Q08 294X294 5mm black PA KDQ08059005

Hinged cover for shallow mounting, for dry-cleaned floors, series tehalit.VE-EE:

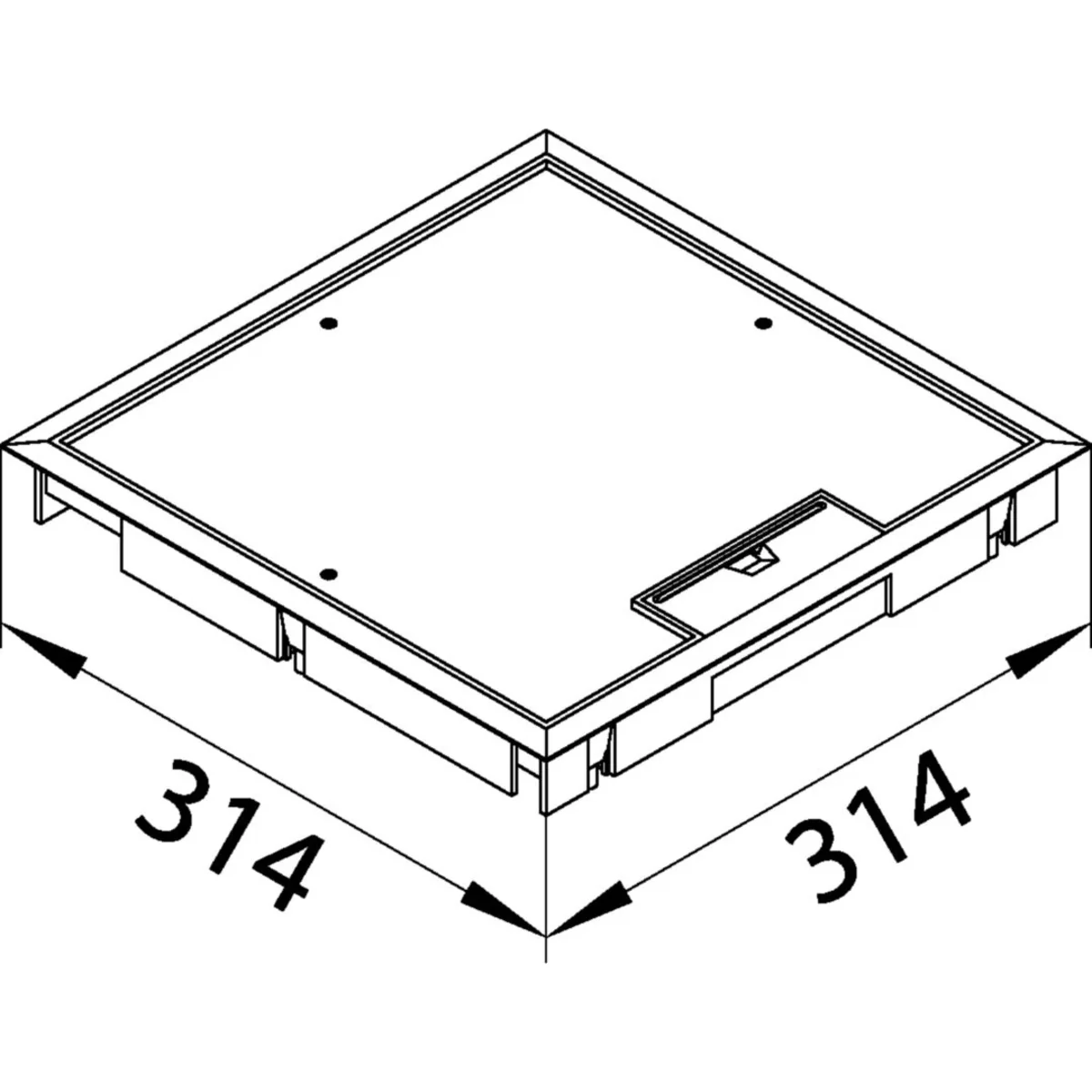

• external dimensions: 314 x 314 mm
• mounting dimensions: 294 x 294 mm
• up to 8 devices in 4 boxes GBES2 (minimum mounting depth 50 mm) or GBM5050 (minimum mounting depth 60 mm)
• minimum installation depth: 50 mm
• for 5 mm floor covering thickness

Series characteristics:

< p> A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.
