TEHALIT

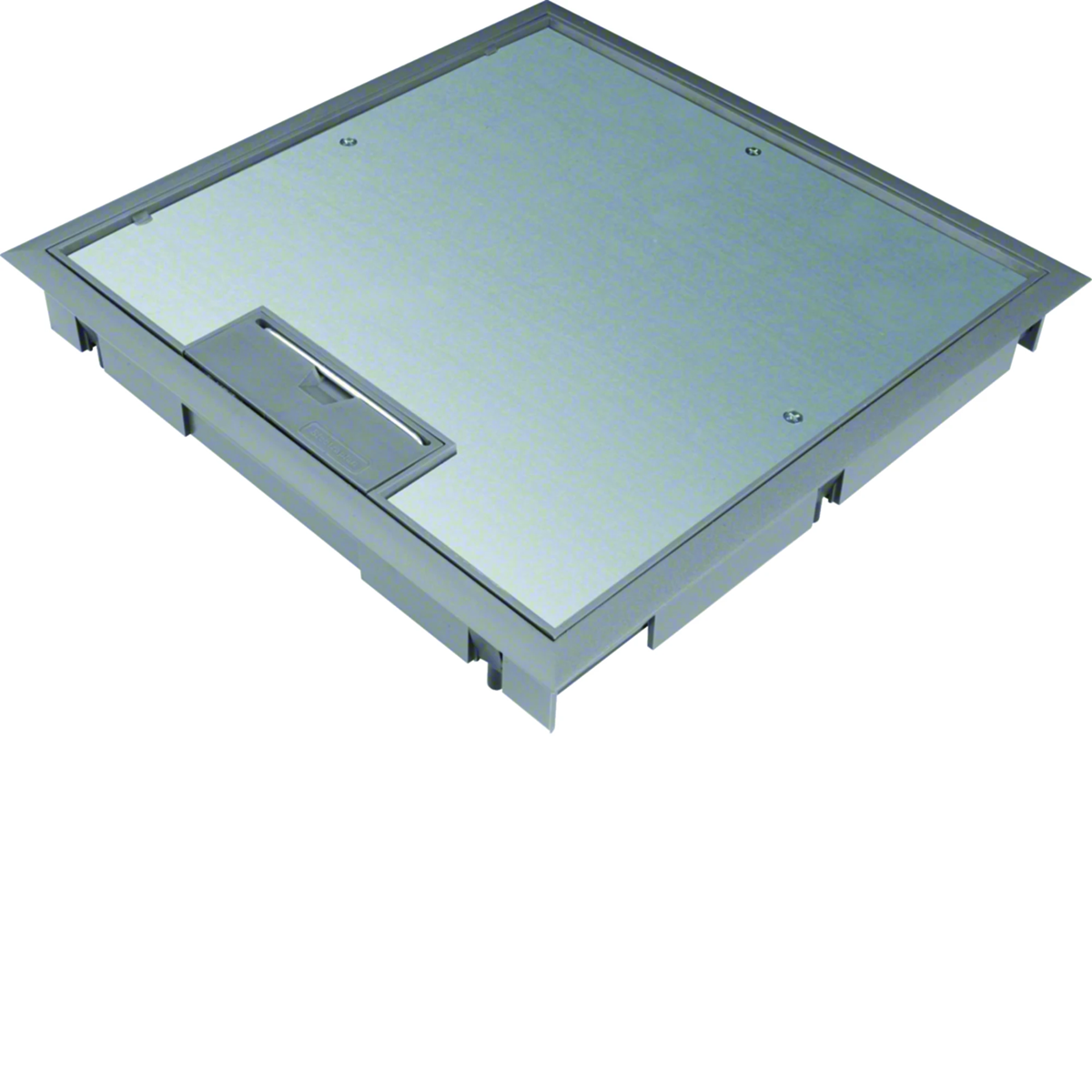

TEHALIT.VE-EE Hinged cover for mounting plate Q08 294X294 12mm gray steel PA KDQ08127011

local index:
MAV025TEHA
Catalog No:
KDQ08127011
EAN code:
4012002247273
Price:
70,80 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Hinged cover for shallow mounting, for dry-cleaned floors, series tehalit.VE-EE:

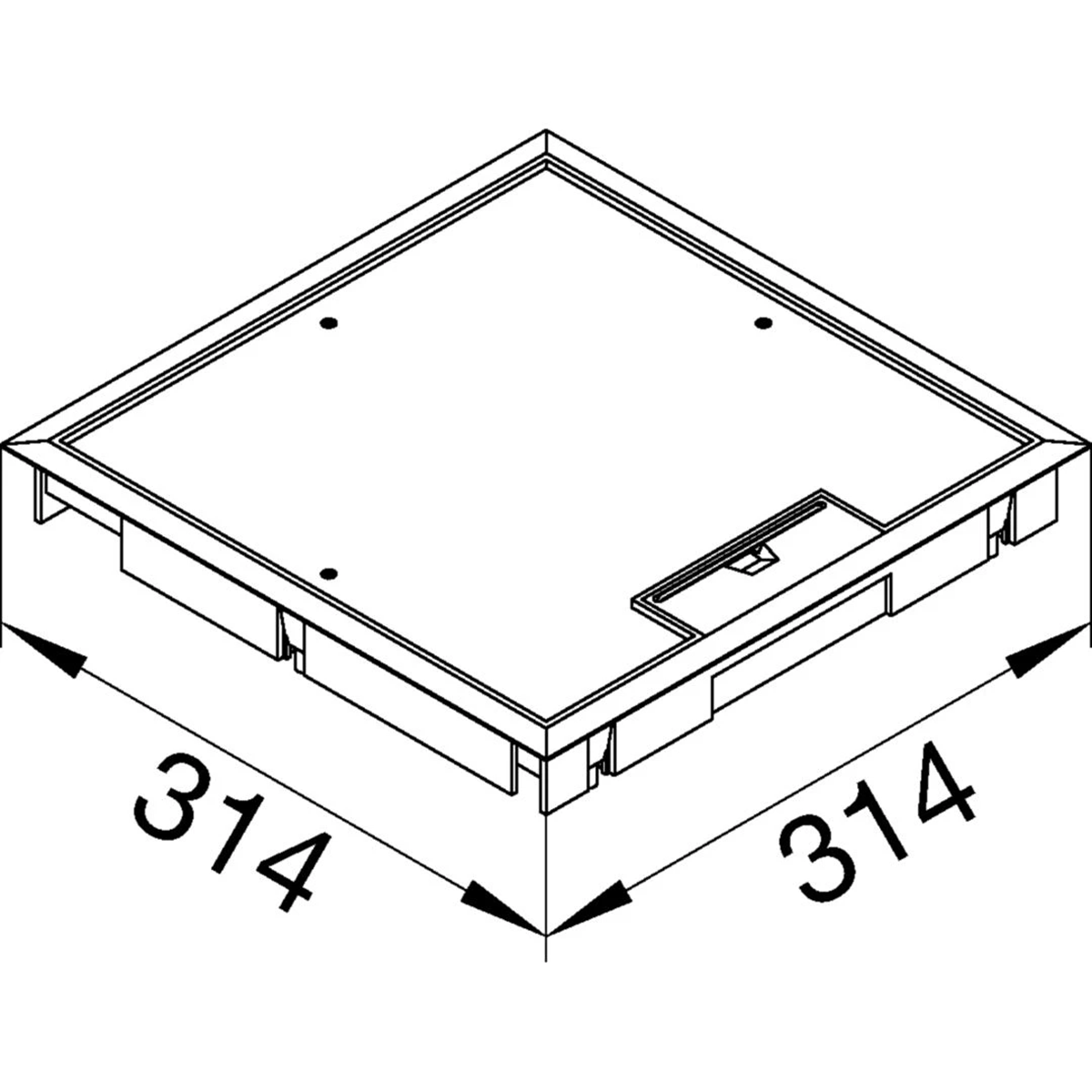

  • external dimensions: 314 x 314 mm
  • mounting dimensions: 294 x 294 mm
  • up to 8 devices in 4 boxes GBES2 (minimum mounting depth 50 mm) or GBM5050 (minimum mounting depth 60 mm)
  • minimum installation depth: 50 mm
  • for 12 mm floor covering thickness

Series characteristics:

< p> A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Shape
    Square
  • Family
    TEHALIT.VE-EE
  • Minimum installation depth [mm]
    57
  • Mounting dimension (length) [mm]
    294
  • Color
    Silver
  • Material
    Plastic
  • Accurate color
    Steel
  • How to use and clean the floor
    dry
  • Mounting dimension (width) [mm]
    294

Other technical data

  • Number of device cups
    4
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    12 mm
  • Colour
    Grey
  • Suitable for subfloor duct
    yes
  • Suitable for double floor built-in
    no
  • Width outside dimension
    314 mm
  • Length built-in dimension
    294 mm
  • Min. built-in depth
    57 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    8
  • With opening carpeting
    yes
  • Protective frame carpeting
    yes
  • RAL-number
    7011
  • Suitable for hollow floor
    no
  • Suitable for wet cleaning
    no
  • Długość zewnętrzna
    314 mm
  • Width built-in dimension
    294 mm
