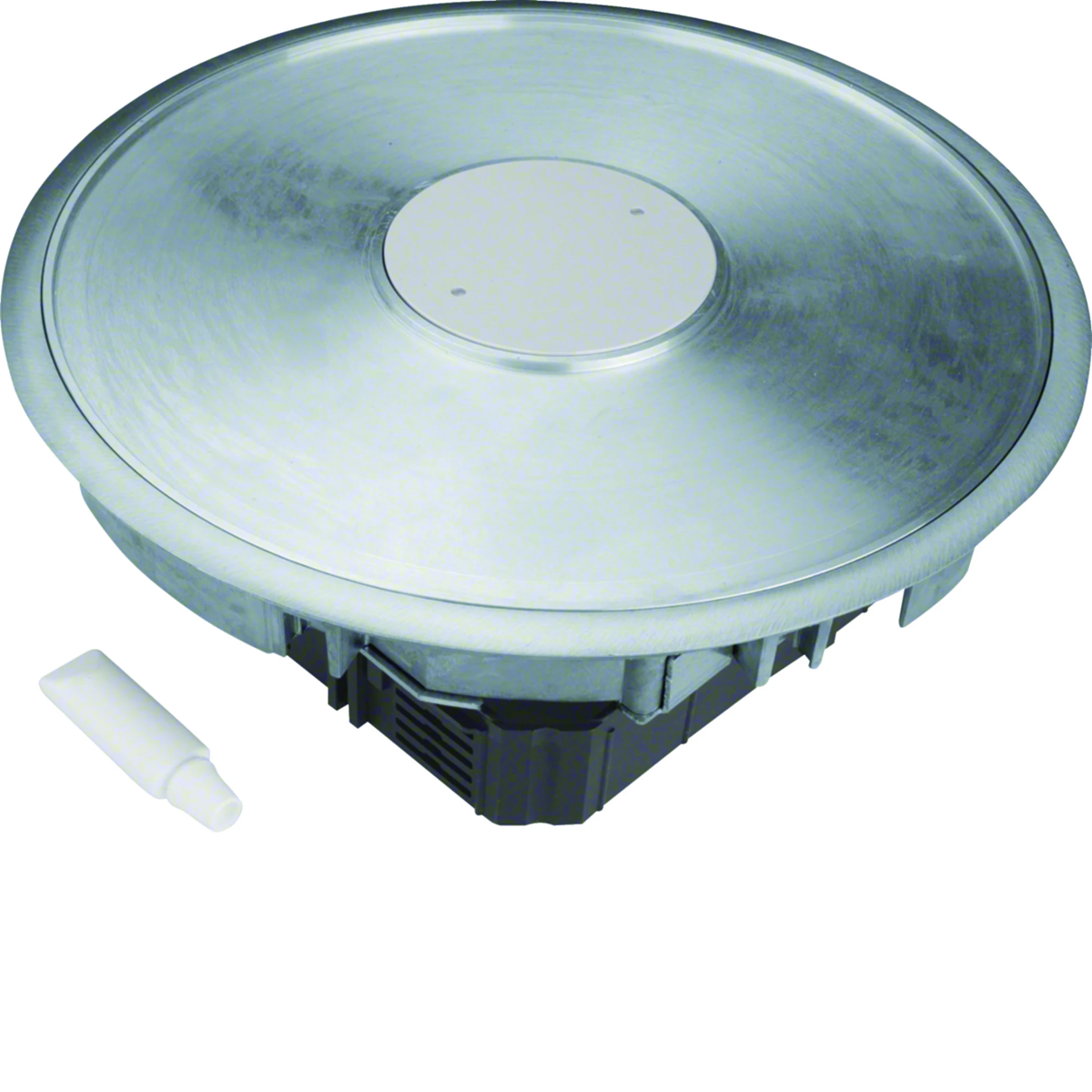

TEHALIT.VE-EE Floor power point Tube R2 3mm aluminum raised floor VANR2003

Lokaler Index:
MVD071TEHA
Katalognummer:
VANR2003
EAN-Code:
4012002247952
Hersteller: TEHALIT
Halogen free: Yes
Length [mm]: 242
Color: Silver
Preis:
1 597,11 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 4 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Floor power point for IP66 wet-cleaned floors, for mounting the VANR06 aluminum tube, tehalit.VE-EE series.

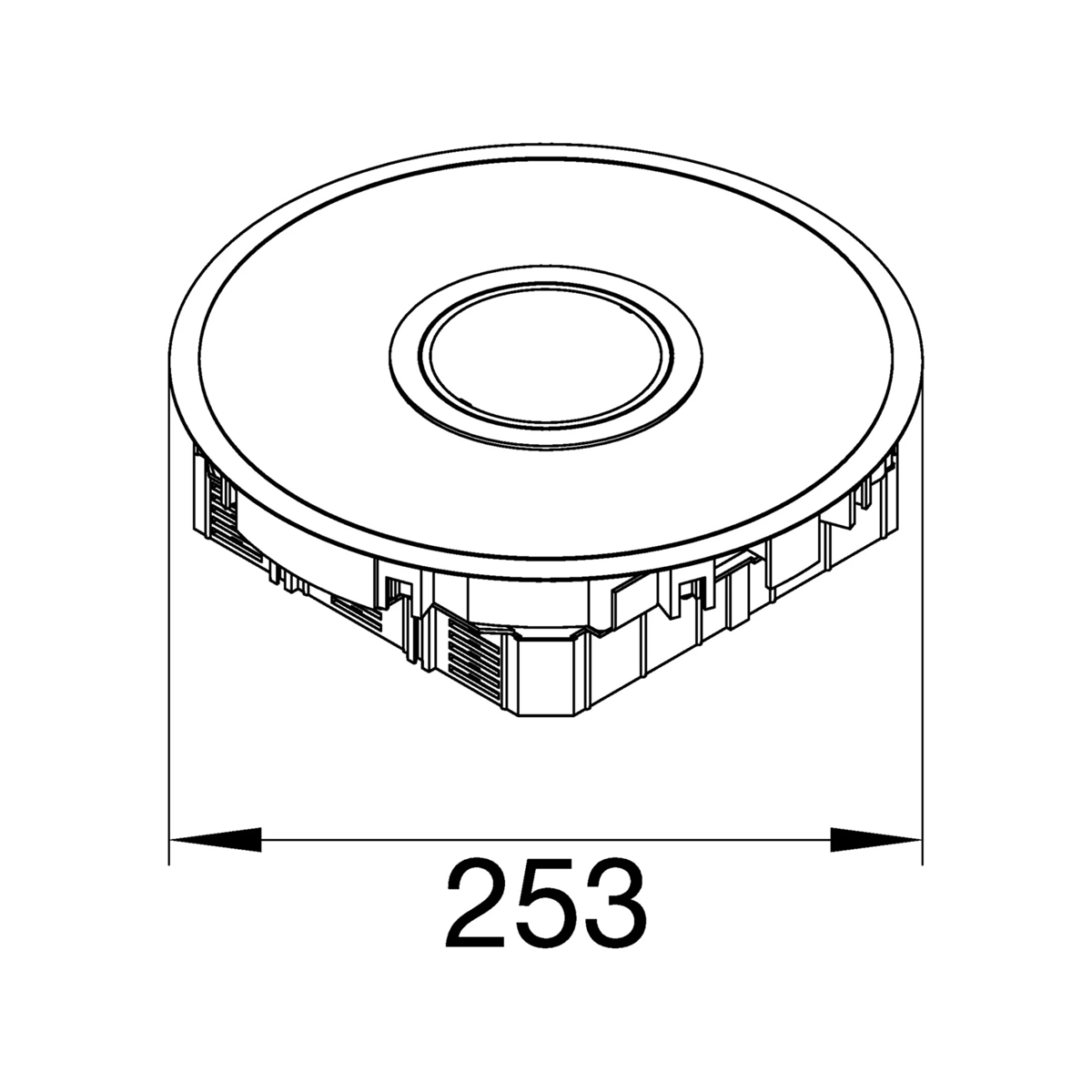

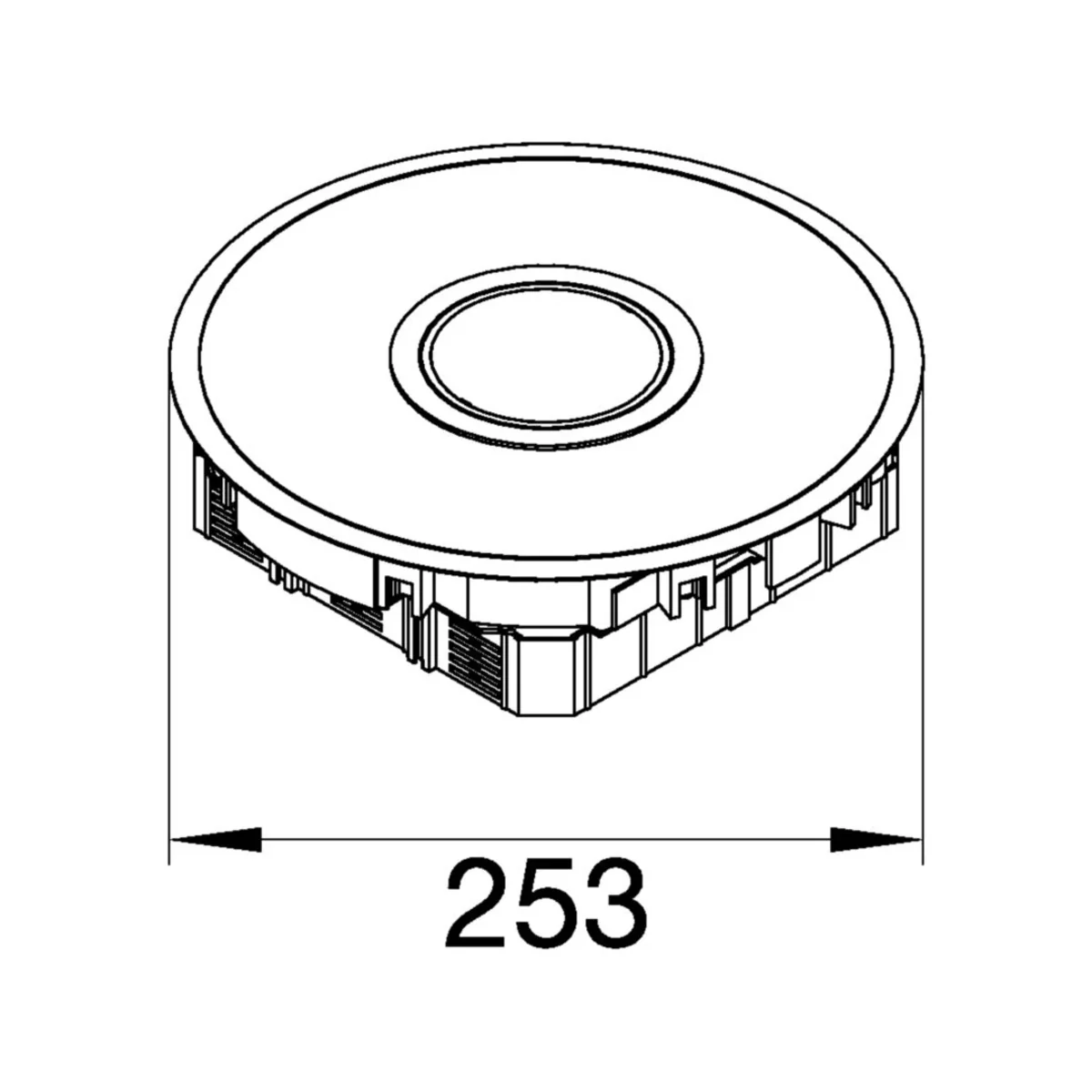

    < li> outer diameter: 253 mm
  • installation diameter: 242 mm
  • minimum installation depth: 90-95 mm
  • cover for carpet: 3 mm
  • material: aluminum
  • complete aluminum cover for bonding carpet thickness up to 3 mm
  • up to 6 devices in 2 boxes GTVR300, GBVR300 or GTVD200
  • gradual lowering of the GTVR300, GBVR300, GTVD200 boxes to 18 mm
  • mounting height from 90 mm to GBVR300 and GTVD200
  • mounting height from 95 mm to GTVR300

Technische Daten

  • Halogen free
    Yes
  • Color
    Silver
  • Material
    Aluminum
  • Surface finish
    Structure
  • Minimum installation depth [mm]
    90
  • PKWIU
    25.11.23.0
  • Length [mm]
    242
  • Shape
    Round
  • Family
    TEHALIT.VE-EE
  • Accurate color
    Aluminum
  • How to use and clean the floor
    Wet

Weitere technische Daten

  • Number of inlets
    3
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    6
  • Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • Lockable cover
    Yes
  • Housing material
    Aluminium
  • Material cover
    Aluminium
  • Surface treatment cover
    Other
  • Obciążenie pionowe na dużej powierzchni (duże obciążenie) zgodnie z EN 50085-2-2
    10 kN
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • Suitable for indoor installation
    Yes
  • Suitable for subfloor duct
    No
  • Suitable for double floor built-in
    Yes
  • Suitable for floors in computer rooms
    Yes
  • Outer diameter
    253 mm
  • Min. built-in depth
    90 mm
  • Number of device cups
    2
  • Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • With cable outlet in cover
    Yes
  • Lock control
    Key
  • Surface protection housing
    Other
  • Surface protection cover
    Other
  • Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2
    3 kN
  • Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)
    IP20
  • Depth of flooring recess
    3 mm
  • Colour
    Other
  • Suitable for outdoor installation
    No
  • Suitable for hollow floor
    Yes
  • Suitable for concrete installation
    Yes
  • Suitable for wet cleaning
    Yes
  • Built-in diameter
    242 mm

Hersteller-Details

Großpackungen

Eine Art Paket Karton Paleta Karton Paleta
Menge 1 stk. 54 stk. 1 stk. 54 stk.
Gewicht (kg) 2,010 131,540 2,010 131,540
Breite (m) 0,320 0,800 0,320 0,800
Länge (m) 0,090 0,550 0,090 0,550
Tiefe (m) 0,330 1,200 0,330 1,200
