TEHALIT.VE-EE Floor power point Tube R2 3mm aluminum floor box VANR2013
local index:
MVD073TEHA
Catalog No:
VANR2013
EAN code:
4012002247976
Price:
367,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

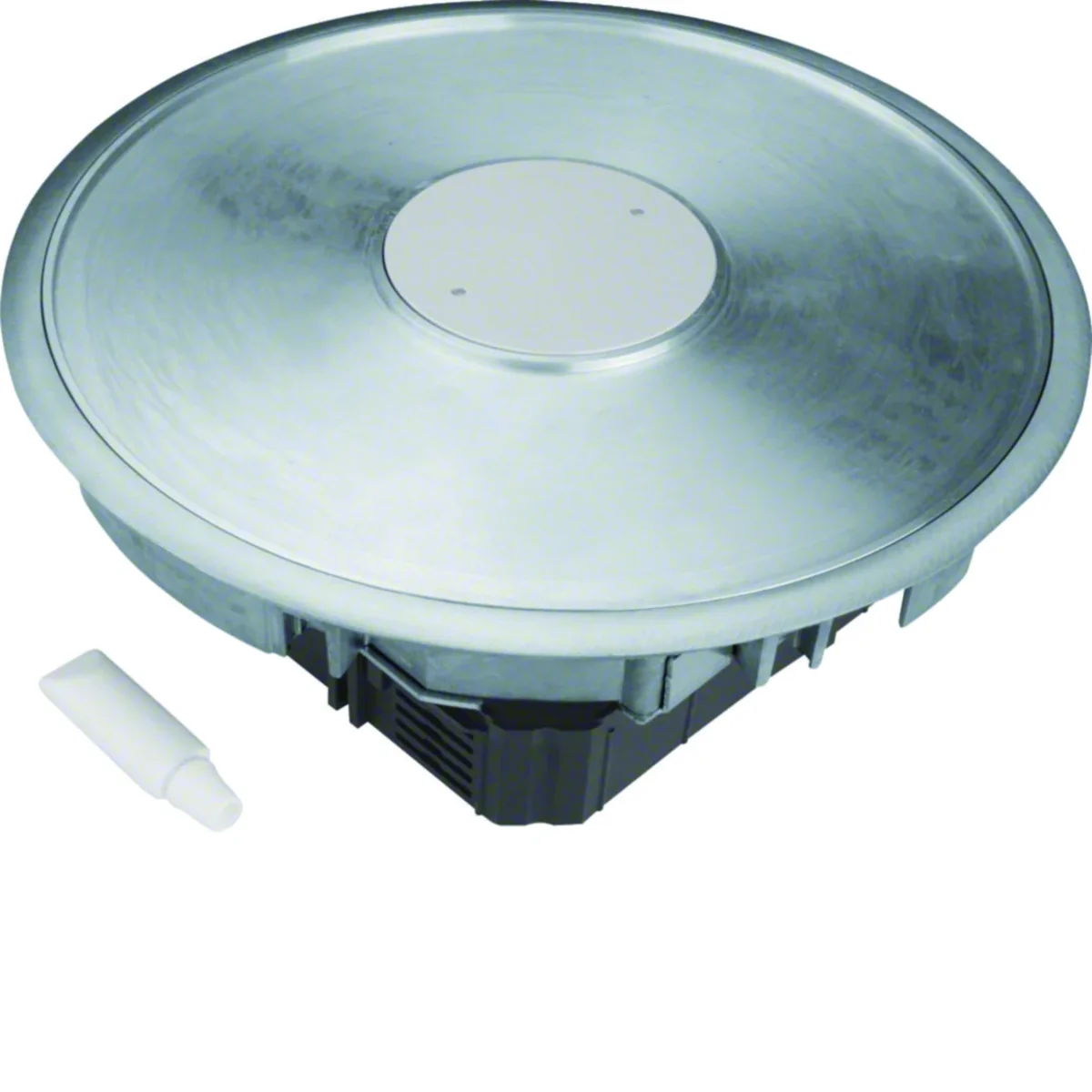

Floor power point for IP66 wet-cleaned floors, for mounting the VANR06 aluminum tube, tehalit.VE-EE series.

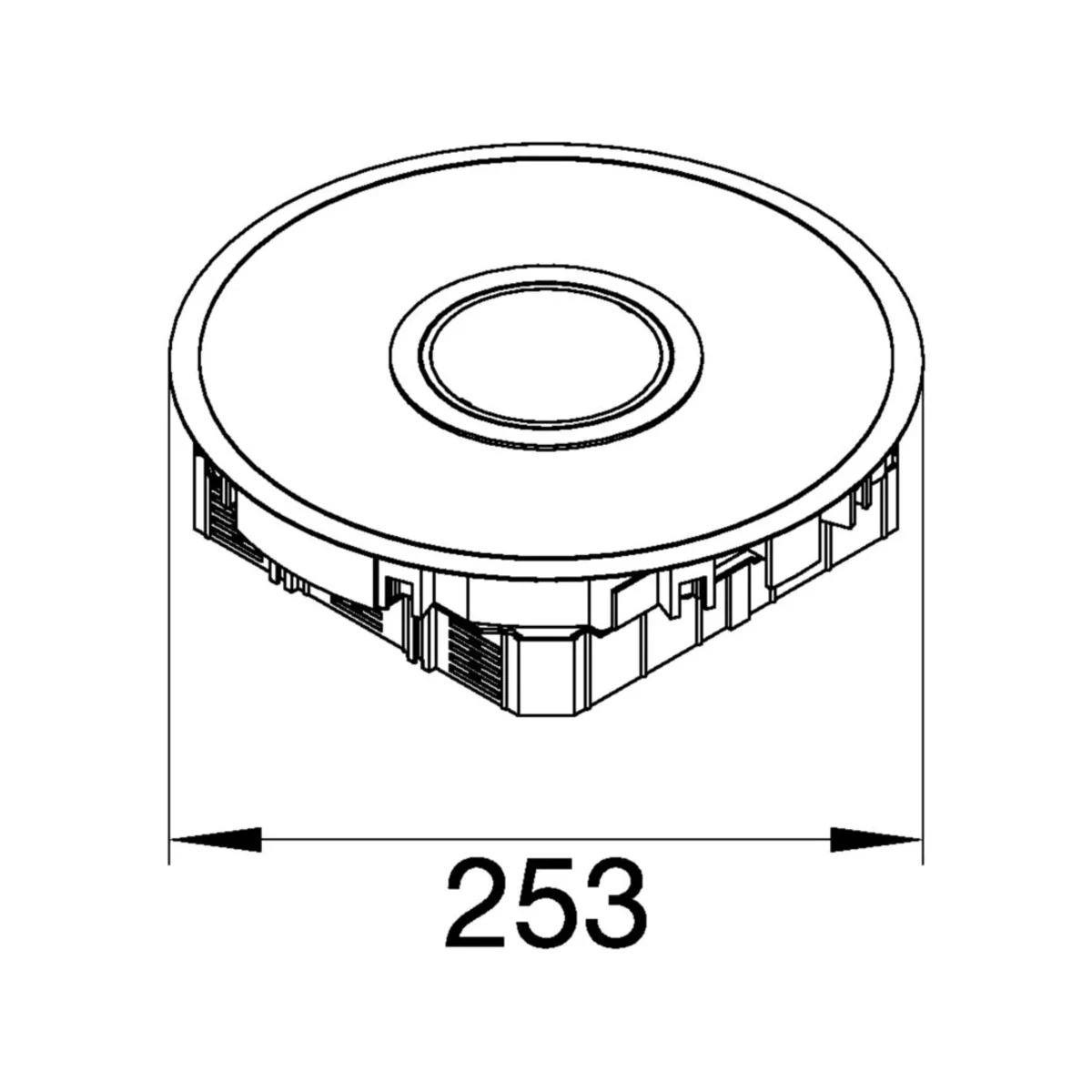

- < li> outer diameter: 253 mm
- installation diameter: 242 mm
- minimum installation depth: 90-95 mm
- cover for carpet: 3 mm
- material: aluminum
- complete aluminum cover for gluing carpet thicknesses up to 3 mm
- up to 6 devices in 2 boxes GTVR300, GBVR300 or GTVD200
- gradual lowering of the GTVR300, GBVR300, GTVD200 boxes to 18 mm
- mounting height from 90 mm to GBVR300 and GTVD200
- mounting height from 95 mm to GTVR300
Technical data
-
Halogen freeYes
-
ColorSilver
-
MaterialAluminum
-
Surface finishStructure
-
Minimum installation depth [mm]90
-
PKWIU25.11.23.0
-
Length [mm]242
-
ShapeRound
-
FamilyTEHALIT.VE-EE
-
Accurate colorAluminum
-
How to use and clean the floorWet
Other technical data
-
Number of device cups2
-
Degree of protection (IP)IP20
-
Depth of flooring recess3 mm
-
ColourOther
-
Suitable for hollow floorYes
-
Suitable for wet cleaningYes
-
Built-in diameter242 mm
-
Number of socket outlets with protective contact CEE 7/3 (type F)6
-
With opening carpetingYes
-
Protective frame carpetingYes
-
Suitable for subfloor ductNo
-
Suitable for double floor built-inYes
-
Outer diameter253 mm
-
Min. built-in depth90 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 54 pcs. |
| Weight (kg) | 1,756 | 1,757 | 94,878 |
| Width (m) | 0,253 | 0,263 | 0,800 |
| Length (m) | 0,079 | 0,115 | 1,050 |
| Depth (m) | 0,253 | 0,294 | 1,200 |
