TEHALIT.VE-EE Floor power point Tube R12 3mm aluminum floor box VANR12013

Name: TEHALIT.VE-EE Floor power point Tube R12 3mm aluminum floor box
Brand: TEHALIT
SKU: MVD066TEHA
Price: 1647.59 PLN
Availability: BackOrder

local index:

MVD066TEHA

Catalog number:

VANR12013

EAN code:

4012002247907

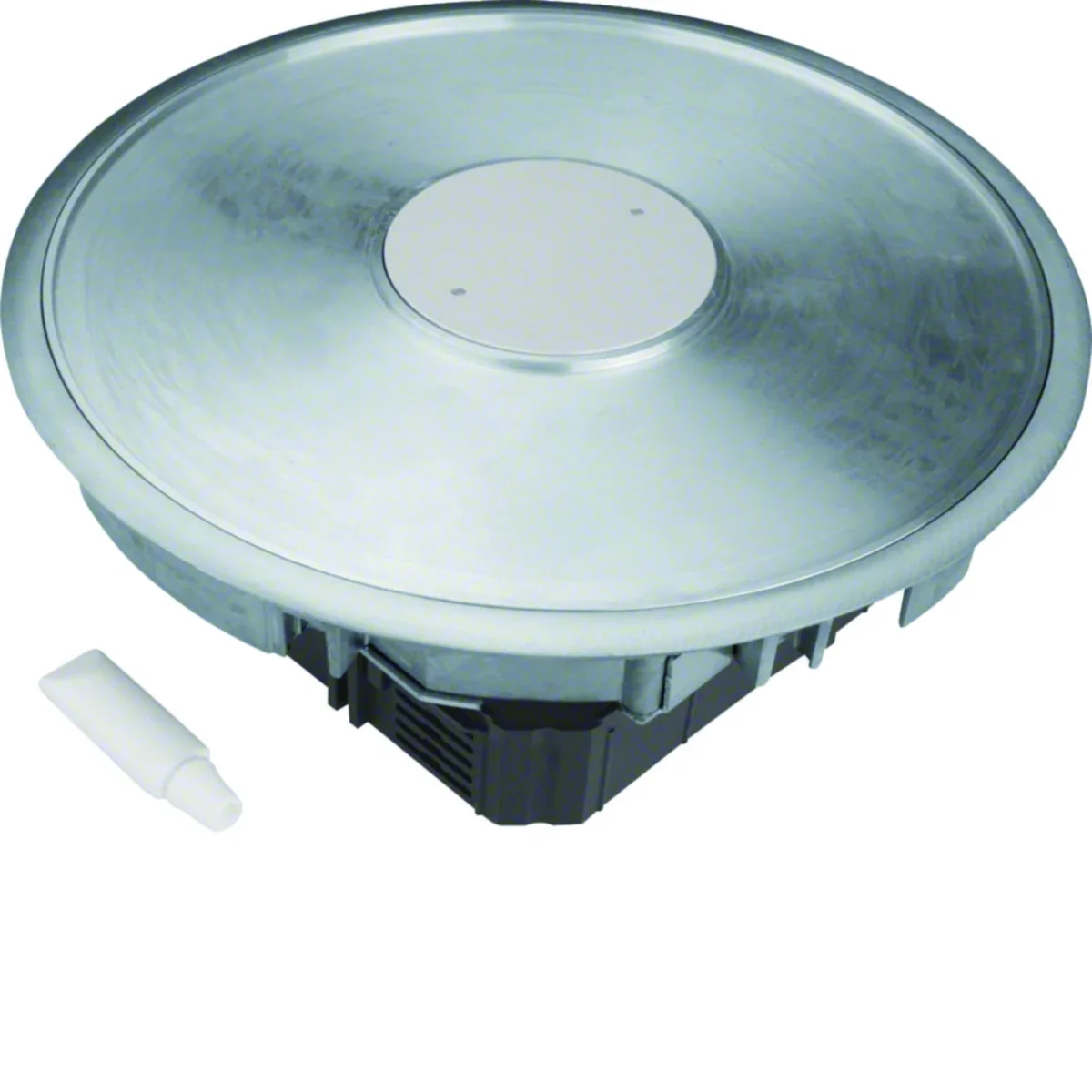

TEHALIT.VE-EE Floor power point Tube R12 3mm aluminum floor box

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: Yes

Length [mm]: 306

Color: Silver

See full description

Price:

1 647,59 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Floor power point for IP66 wet-cleaned floors, for mounting the VANR12 aluminum tube, tehalit.VE-EE series.

installation diameter: 306 mm
minimum installation depth: 90-95 mm
cover for carpet: 3 mm
material: aluminum
complete aluminum cover for bonding carpet thickness up to 3 mm
up to 12 devices in 3 boxes GTVR400, GBVR400 or GTVD300
gradual lowering of the GTVR400, GBVR400, GTVD300 boxes to 18mm
mounting height from 90 mm to GBVR400 and GTVD300
mounting height from 95 mm to GTVR400

Technical data

Halogen free

Yes
Color

Silver
Material

Aluminum
Surface finish

Structure
Minimum installation depth [mm]

90
PKWIU

25.11.23.0

Length [mm]

306
Shape

Round
Family

TEHALIT.VE-EE
Accurate color

Aluminum
How to use and clean the floor

Wet

Other technical data

Cover model

Round
Number of device cups

3
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

Yes
Lock control

Key
Surface protection housing

Other
Surface protection cover

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

3 kN
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
Depth of flooring recess

3 mm
Colour

Other
Suitable for outdoor installation

No
Suitable for hollow floor

No
Suitable for concrete installation

Yes
Suitable for wet cleaning

Yes
Built-in diameter

306 mm

Number of inlets

3
Number of socket outlets with protective contact CEE 7/3 (type F)

12
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Aluminium
Material cover

Aluminium
Surface treatment cover

Other
Obciążenie pionowe na dużej powierzchni (duże obciążenie) zgodnie z EN 50085-2-2

10 kN
With opening carpeting

Yes
Protective frame carpeting

Yes
Suitable for indoor installation

Yes
Suitable for subfloor duct

No
Suitable for double floor built-in

No
Suitable for floors in computer rooms

Yes

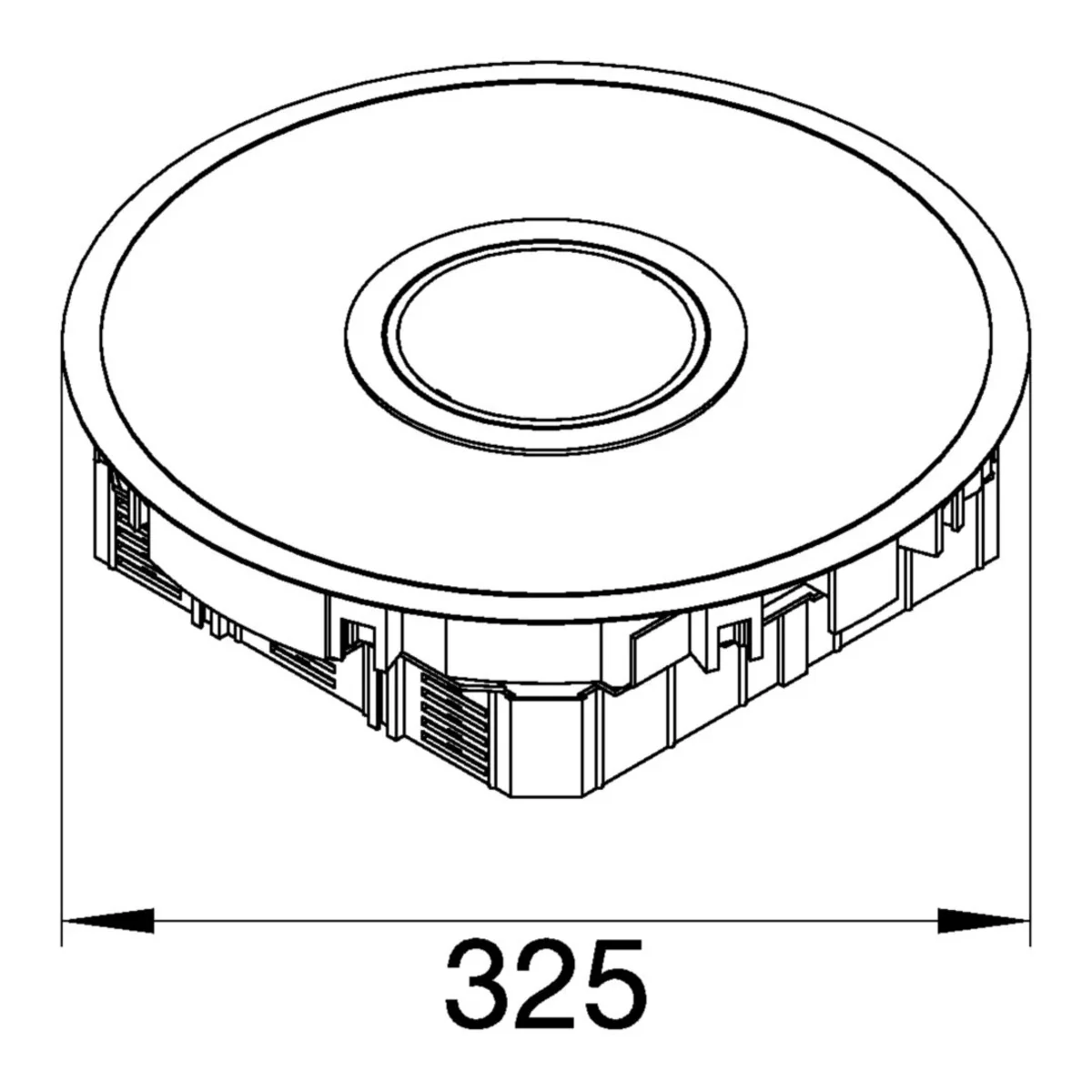

Outer diameter

325 mm
Min. built-in depth

90 mm

Manufacturer details

Manufacturer

Tehalit GmbH
Address

67716 Heltersberg Seebergstrasse 37 Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	54 pcs.	1 pcs.	54 pcs.
Weight (kg)	2,462	201,093	2,462	201,093
Width (m)	0,330	0,800	0,330	0,800
Length (m)	0,090	0,850	0,090	0,850
Depth (m)	0,350	1,200	0,350	1,200
