TEHALIT.VE-EE Floor Grooved Power Point Tube R12 Aluminum Raised Floor VANR1200

Name: TEHALIT.VE-EE Floor Grooved Power Point Tube R12 Aluminum Raised Floor
Brand: TEHALIT
SKU: MVD059TEHA
Price: 1689.65 PLN
Availability: BackOrder

Indice locale:

MVD059TEHA

Numero di catalogo:

VANR1200

Codice EAN:

4012002247464

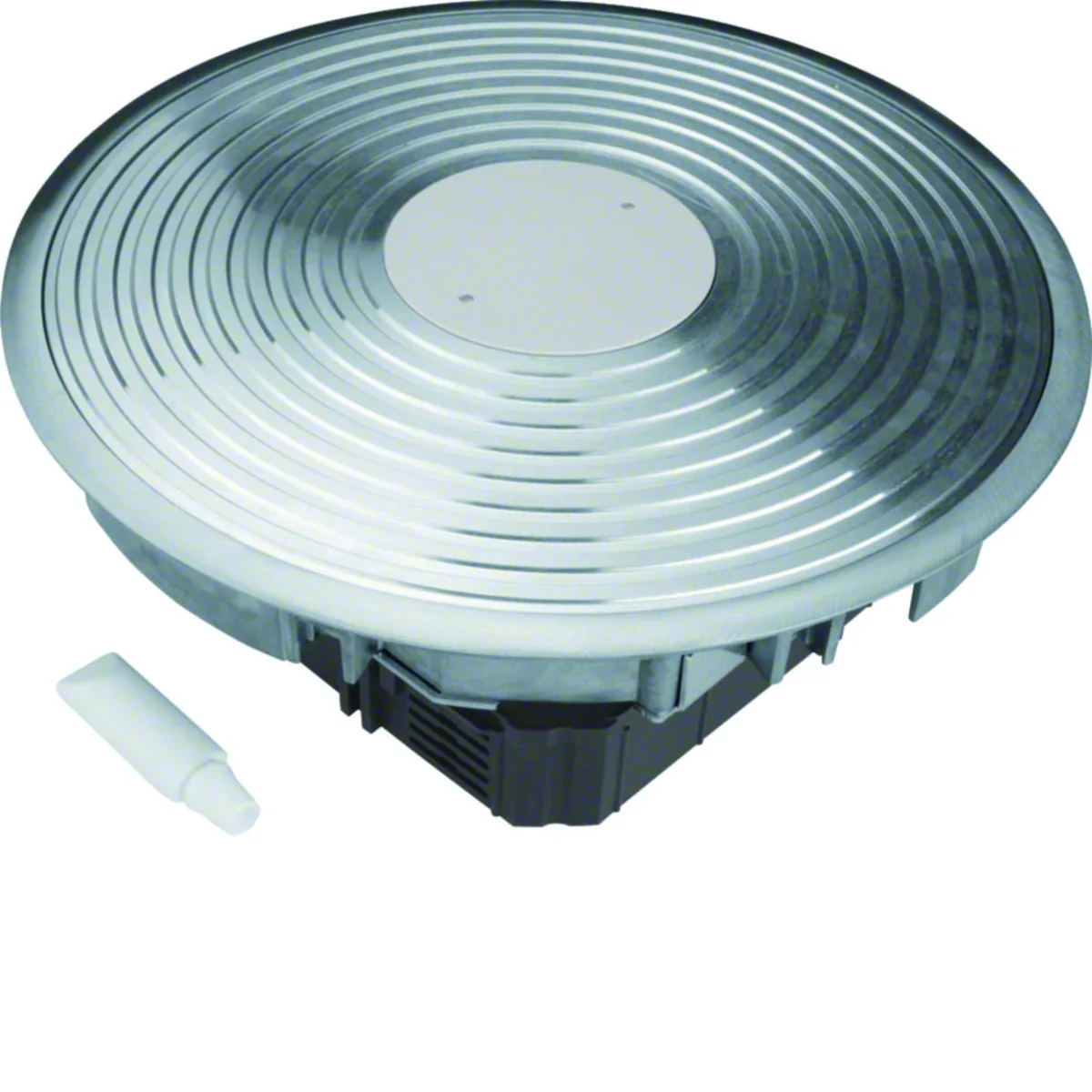

TEHALIT.VE-EE Floor Grooved Power Point Tube R12 Aluminum Raised Floor

Clicca sulla foto per ingrandire

Produttore: TEHALIT

Halogen free: Yes

Length [mm]: 325

Color: Silver

Vedi la descrizione completa

Prezzo:

1 689,65 zł

gross / pezzi

(inclusa IVA 23%)

fino a 4 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Floor grooved power point for IP66 wet-cleaned floors, for mounting the VANR12 aluminum tube, series tehalit.VE-EE.

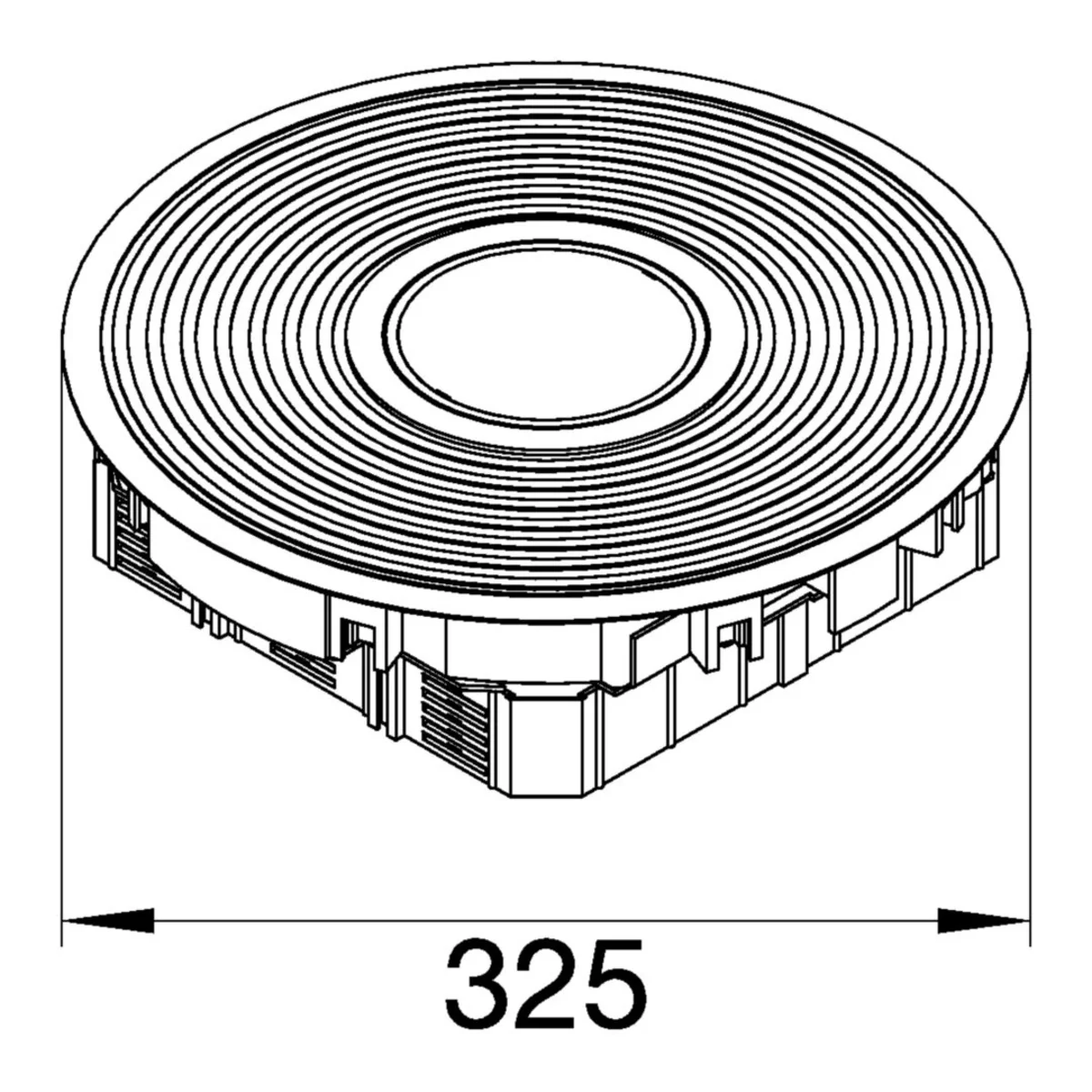

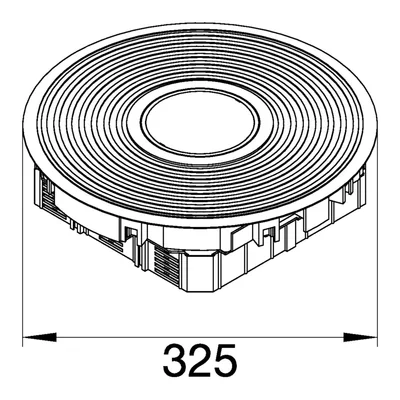

outer diameter: 325 mm
installation diameter: 306 mm
minimum installation depth: 90-95 mm
cover with groove: 1-2 mm
material: aluminum
complete aluminum cover with grooved structure
for 12 devices in 3 boxes GTVR400, GBVR400 or GTVD300
gradual lowering boxes GTVR400, GBVR400, GTVD300 to 18mm
mounting height from 90 mm to GBVR400 and GTVD300
mounting height from 95 mm to GTVR400

Dati tecnici

Halogen free

Yes
Color

Silver
Material

Aluminum
Surface finish

Structure
Minimum installation depth [mm]

90
PKWIU

25.11.23.0

Length [mm]

325
Shape

Round
Family

TEHALIT.VE-EE
Accurate color

Aluminum
How to use and clean the floor

Wet

Altri dati tecnici

Cover model

Round
Number of device cups

3
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

Yes
Lock control

Key
Surface protection housing

Other
Surface protection cover

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

3 kN
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
Protective frame carpeting

Yes
Suitable for indoor installation

Yes
Suitable for subfloor duct

No
Suitable for double floor built-in

No
Suitable for floors in computer rooms

Yes
Outer diameter

325 mm
Min. built-in depth

90 mm

Number of inlets

3
Number of socket outlets with protective contact CEE 7/3 (type F)

12
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Aluminium
Material cover

Aluminium
Surface treatment cover

Other
Obciążenie pionowe na dużej powierzchni (duże obciążenie) zgodnie z EN 50085-2-2

10 kN
With opening carpeting

No
Colour

Other
Suitable for outdoor installation

No
Suitable for hollow floor

Yes
Suitable for concrete installation

Yes
Suitable for wet cleaning

Yes
Built-in diameter

306 mm

Dettagli del produttore

Produttore

Tehalit GmbH
Indirizzo

67716 Heltersberg Seebergstrasse 37 Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Paleta	Karton	Paleta
Quantità	1 pezzi	54 pezzi	1 pezzi	54 pezzi
Peso (kg)	3,450	234,281	3,450	234,281
Larghezza (m)	0,320	0,800	0,320	0,800
Lunghezza (m)	0,110	0,990	0,110	0,990
Profondità (m)	0,350	1,200	0,350	1,200
