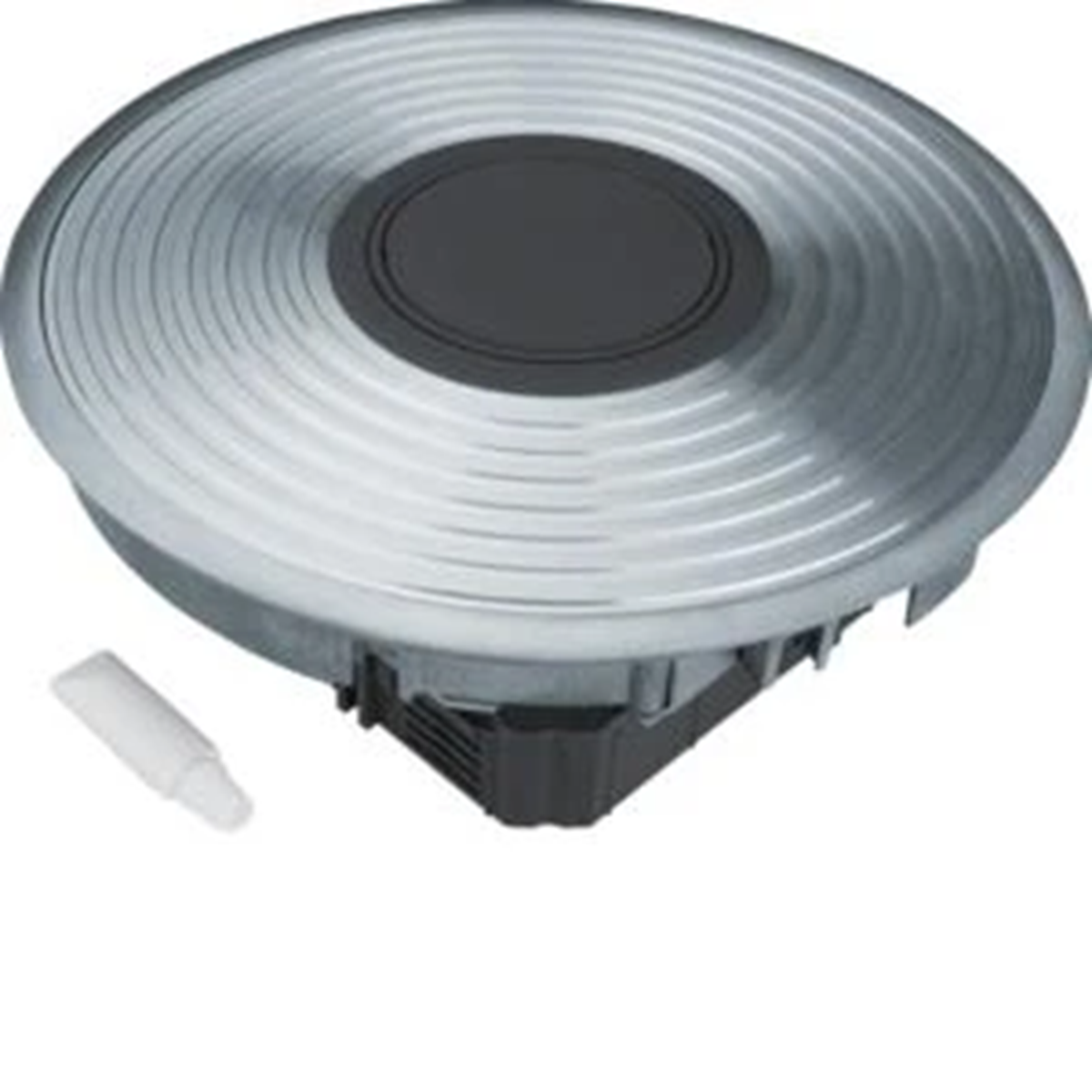

TEHALIT.VE-EE Floor Grooved Power Point PA-Tubus R12 Raised Floor Aluminum VANR1200TU

Floor grooved power point for IP66 wet-cleaned floors, with VANR12 polyamide tube, tehalit.VE-EE series.

< li> outer diameter: 325 mm
• installation diameter: 306 mm
• minimum installation depth: 105-115 mm
• cover with groove: 1-2 mm< /li>
• material: aluminum
• complete cover made of aluminum with grooved structure
• the cable entry of the polyamide tube is integrated in the cover and can be used as an exit by 180° conversion cables
• up to 12 devices in 3 boxes GTVR400, GBVR400 or GTVD300
• gradual lowering of boxes GTVR400, GBVR400, GTVD300 to 18mm
• mounting height from 105 mm to GBVR400 and GTVD300
• mounting height from 115 mm to GTVR400
