TEHALIT.VE-EE Floor Groove Power Point Tube R2 Floor Box Black Aluminum VANR2019005

Name: TEHALIT.VE-EE Floor Groove Power Point Tube R2 Floor Box Black Aluminum
Brand: TEHALIT
SKU: MVD074TEHA
Price: 1727.51 PLN
Availability: BackOrder

local index:

MVD074TEHA

Catalog number:

VANR2019005

EAN code:

4012002247983

TEHALIT.VE-EE Floor Groove Power Point Tube R2 Floor Box Black Aluminum

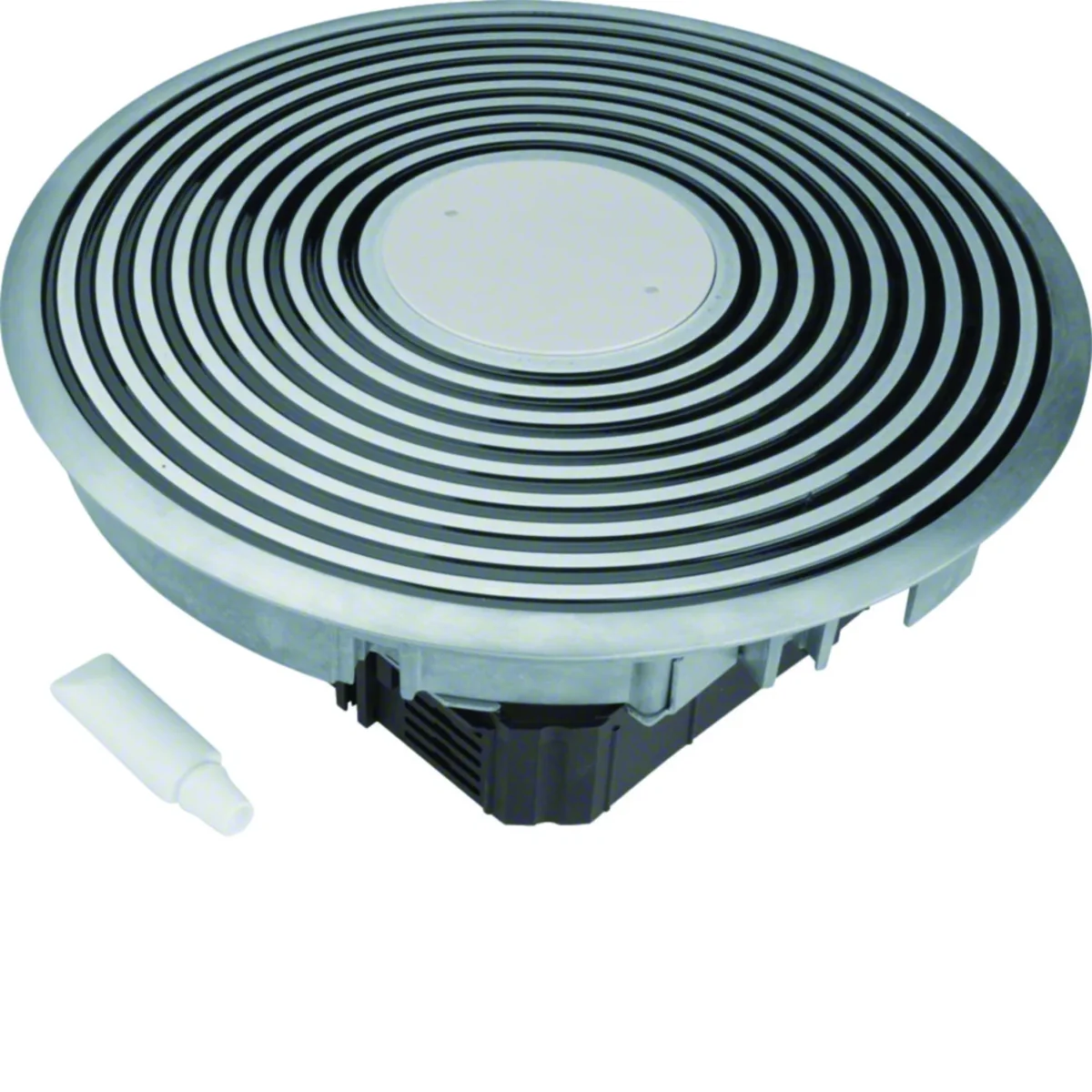

Click on the photo to enlarge

Manufacturer: TEHALIT

Halogen free: Yes

Length [mm]: 242

Color: Silver

See full description

Price:

1 727,51 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Floor grooved power point for IP66 wet-cleaned floors, for mounting the VANR06 aluminum tube, series tehalit.VE-EE.

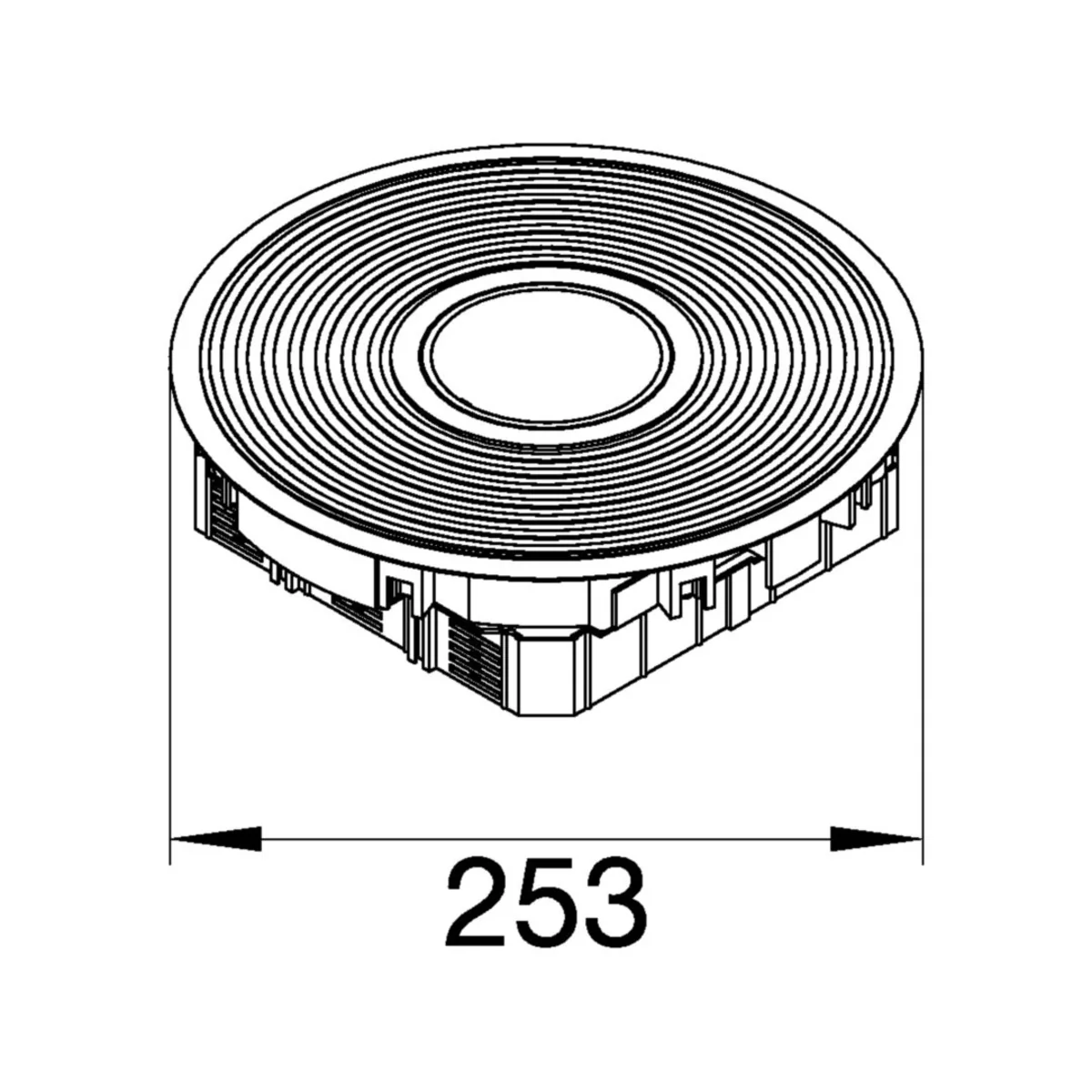

outer diameter: 253 mm
installation diameter: 242 mm
minimum installation depth: 90-95 mm
cover with groove: 1-2 mm
material: aluminum
complete aluminum cover with grooved structure
for 6 devices in 2 boxes GTVR300, GBVR300 or GTVD200
gradual lowering of GTVR300, GBVR300, GTVD200 boxes to 18 mm
mounting height from 90 mm to GBVR300 and GTVD200
mounting height from 95 mm to GTVR300

Technical data

Halogen free

Yes
Color

Silver
Material

Aluminum
Surface finish

Structure
Minimum installation depth [mm]

90
PKWIU

25.11.23.0

Length [mm]

242
Shape

Round
Family

TEHALIT.VE-EE
Accurate color

Aluminum
How to use and clean the floor

Wet

Other technical data

Number of inlets

3
Number of socket outlets with protective contact CEE 7/3 (type F)

6
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

0
Lockable cover

Yes
Housing material

Aluminium
Material cover

Aluminium
Surface treatment cover

Other
Obciążenie pionowe na dużej powierzchni (duże obciążenie) zgodnie z EN 50085-2-2

10 kN
With opening carpeting

No
Protective frame carpeting

Yes
RAL-number

9005
Suitable for outdoor installation

No
Suitable for hollow floor

Yes
Suitable for concrete installation

Yes
Suitable for wet cleaning

Yes
Built-in diameter

242 mm

Number of device cups

2
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

0
With cable outlet in cover

Yes
Lock control

Key
Surface protection housing

Other
Surface protection cover

Other
Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2

3 kN
Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)

IP20
Depth of flooring recess

3 mm
Colour

Other
Suitable for indoor installation

Yes
Suitable for subfloor duct

No
Suitable for double floor built-in

Yes
Suitable for floors in computer rooms

Yes
Outer diameter

253 mm
Min. built-in depth

90 mm

Manufacturer details

Manufacturer

Tehalit GmbH
Address

67716 Heltersberg Seebergstrasse 37 Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	54 pcs.	1 pcs.	54 pcs.
Weight (kg)	2,125	137,750	2,125	137,750
Width (m)	0,260	0,800	0,260	0,800
Length (m)	0,110	1,050	0,110	1,050
Depth (m)	0,290	1,200	0,290	1,200
