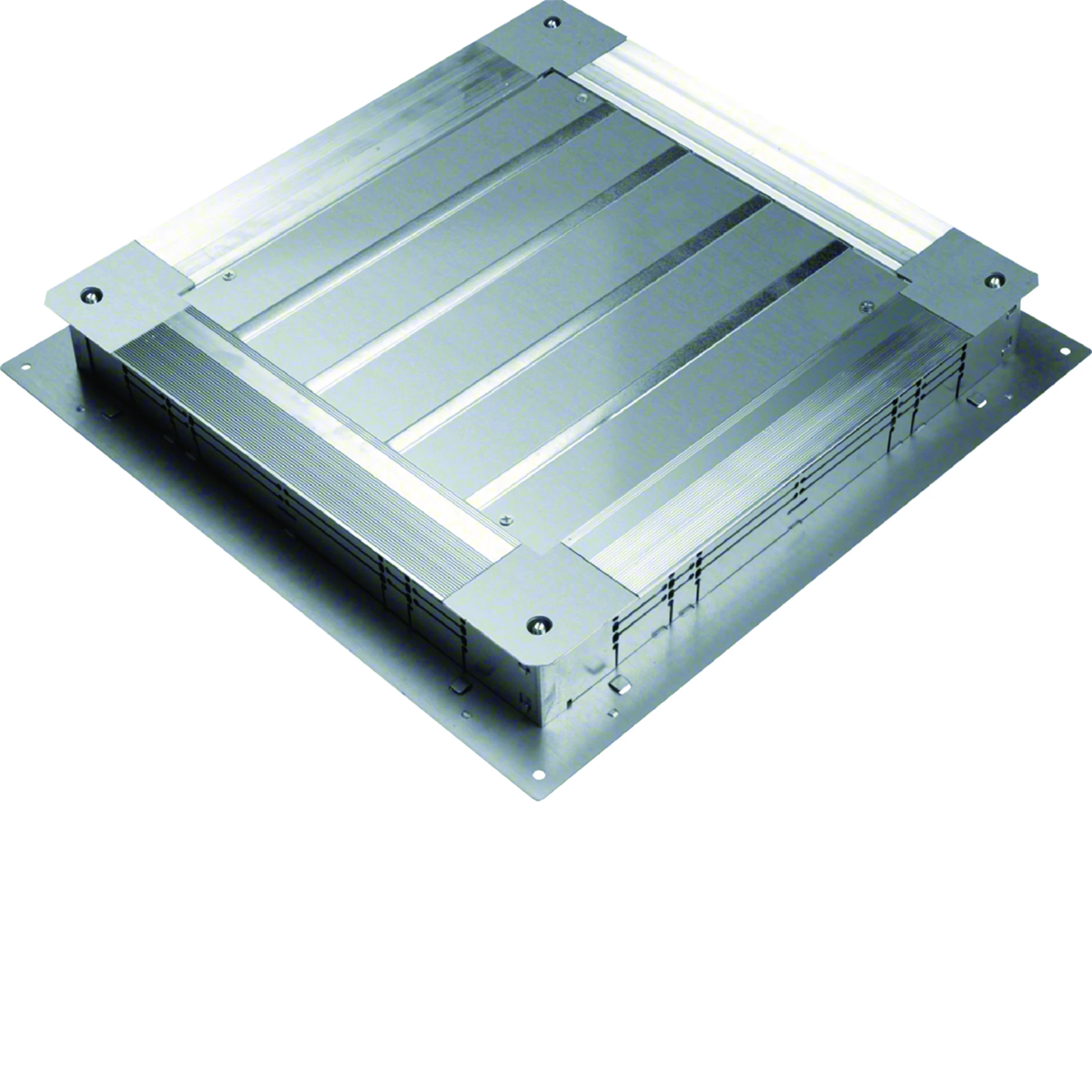

TEHALIT.UK Universal steel plate floor box size 3 70-120 UDS3070120

local index:
MVD058TEHA
Catalog No:
UDS3070120
EAN code:
4012002238400
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Rectangular
Price:
149,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal floor box, size 3, tehalit.UK series:

  • with internal stepless height adjustment
  • < li> full box (with plate and frame) made of steel sheet for installation in concrete screed
  • steel sheet walls are perforated for the tehalit.UK duct system
  • minimum installation height 70 mm< /li>
  • leveling over 120 mm only possible with extension frames

Series characteristics:

Concrete screeds require flooded channels floor boxes and floor boxes. The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Technical data

  • Halogen free
    Yes
  • Shape
    Rectangular
  • Family
    TEHALIT.UK
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0
  • Color
    Silver
  • Material
    Galvanized steel sheet
  • Height [mm]
    70
  • Leveling range
    70/120

Other technical data

  • Suitable for subfloor duct countersunk (closed)
    Yes
  • Duct width
    190 ... 340 mm
  • Levelling range
    70 ... 120 mm
  • Mounting cover insertion
    Yes
  • Decoupling possibility cover from base unit
    No
  • Suitable for subfloor duct overhead closed
    No
  • Min. height finishing layer
    70 mm
  • Material side wall
    Steel
  • Suitable for placing of sealing
    No
  • Bottom plate
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 3 pcs. 18 pcs.
Weight (kg) 7,025 7,026 22,328 158,968
Width (m) 0,555 0,560 0,580 0,800
Length (m) 0,070 0,070 0,230 0,690
Depth (m) 0,555 0,560 0,580 1,200
