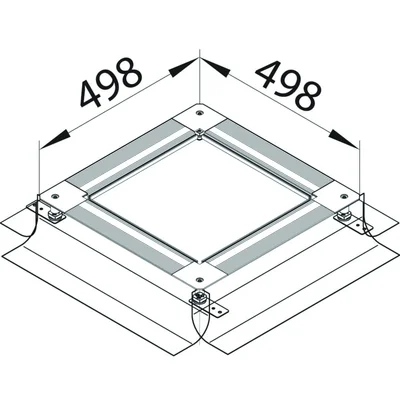

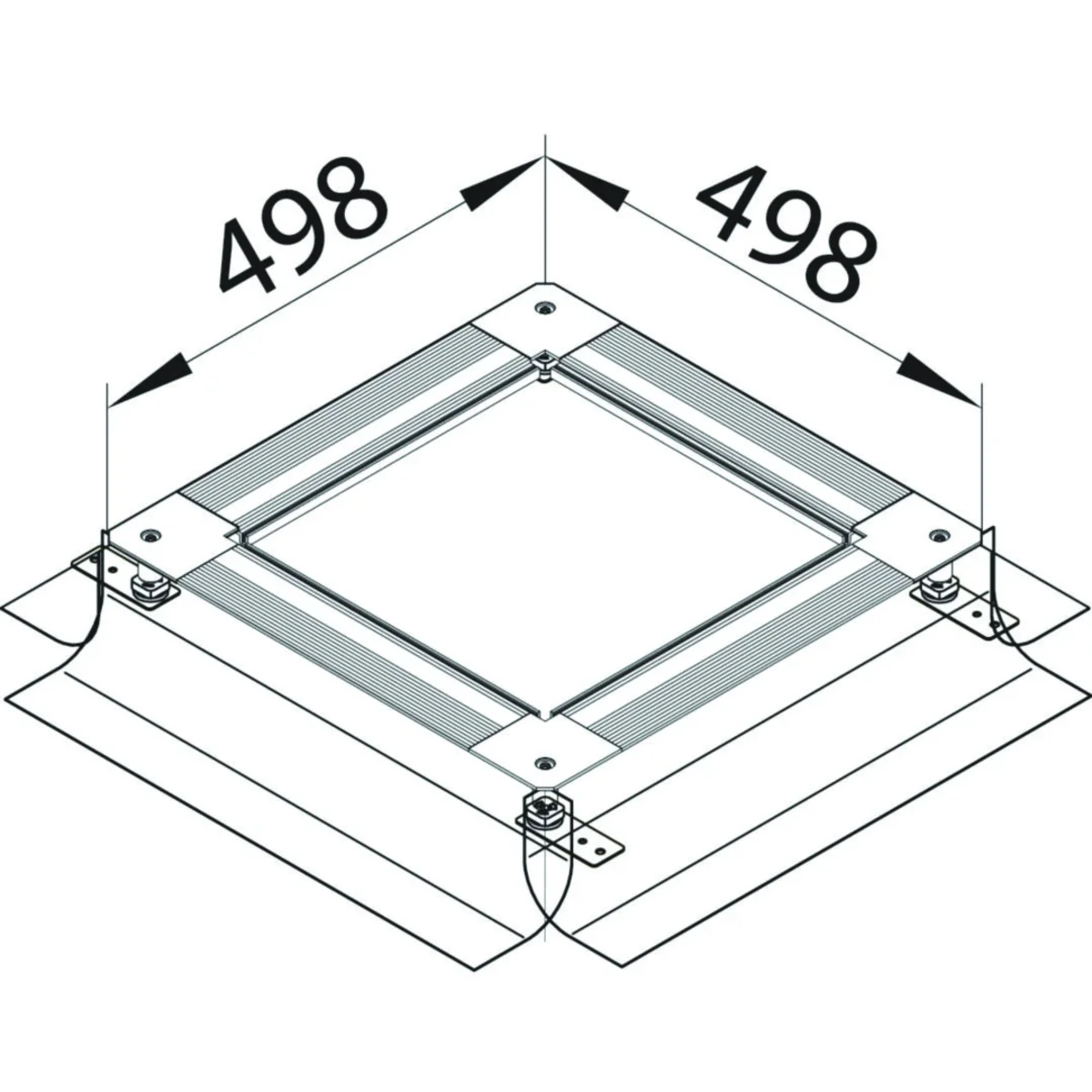

TEHALIT.UK Universal floor box on legs size 3 75-125 steel UDH3075125

Índice local:
MVD051TEHA
Número de catálogo:
UDH3075125
Código EAN:
4012002238141
Fabricante: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Rectangular
Precio:
113,71 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 4 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

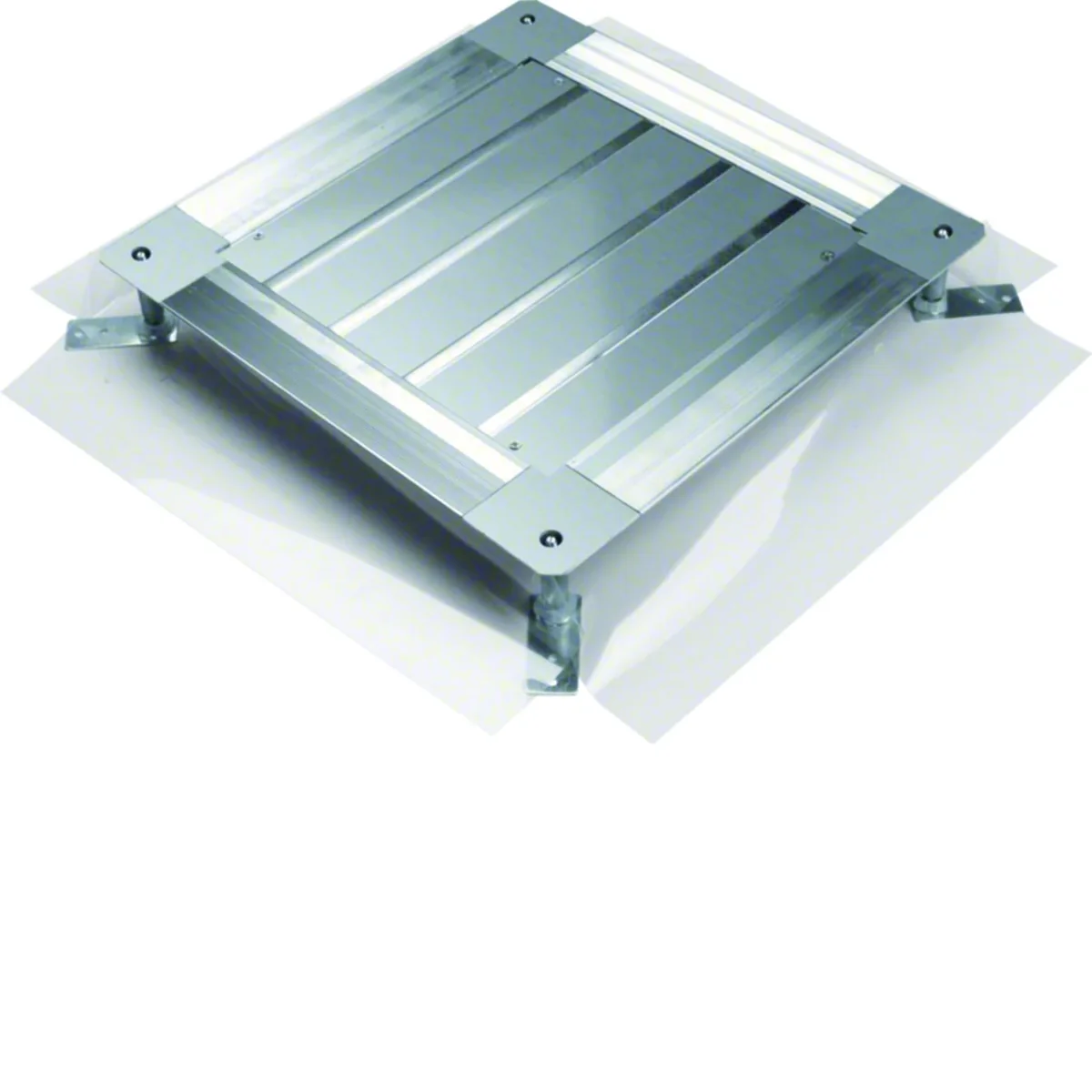

Universal floor box on legs, size 3, tehalit.UK series:

  • with internal stepless height adjustment
  • with legs and a flexible transparent foil for installation in a concrete screed
  • easy insertion of the duct into the box by cutting the foil with scissors or a knife
  • with factory-installed sound insulation and leveling screws
  • leveling from the minimum building height

Series characteristics:

Concrete screeds require flooded floor channels and floor boxes . The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Datos técnicos

  • Halogen free
    Yes
  • Shape
    Rectangular
  • Family
    TEHALIT.UK
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0
  • Color
    Silver
  • Material
    Miscellaneous materials
  • Height [mm]
    75
  • Leveling range
    75/125

Otros datos técnicos

  • Suitable for subfloor duct countersunk (closed)
    Yes
  • Duct width
    190 ... 340 mm
  • Levelling range
    75 ... 125 mm
  • Mounting cover insertion
    Yes
  • Decoupling possibility cover from base unit
    No
  • Suitable for subfloor duct overhead closed
    No
  • Min. height finishing layer
    75 mm
  • Material side wall
    Plastic
  • Suitable for placing of sealing
    No
  • Bottom plate
    No

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 1 uds. 1 uds. 5 uds. 20 uds.
Peso (kg) 3,460 3,520 19,130 99,520
Ancho (m) 0,498 0,500 0,580 0,800
Longitud (m) 0,075 0,075 0,430 1,005
Profundidad (m) 0,498 0,500 0,570 1,200
