TEHALIT.UK Universal floor box on legs size 2 75-125 steel UDH2075125

local index:
MVD046TEHA
Catalog No:
UDH2075125
EAN code:
4012002238097
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Material: Miscellaneous materials
Price:
106,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

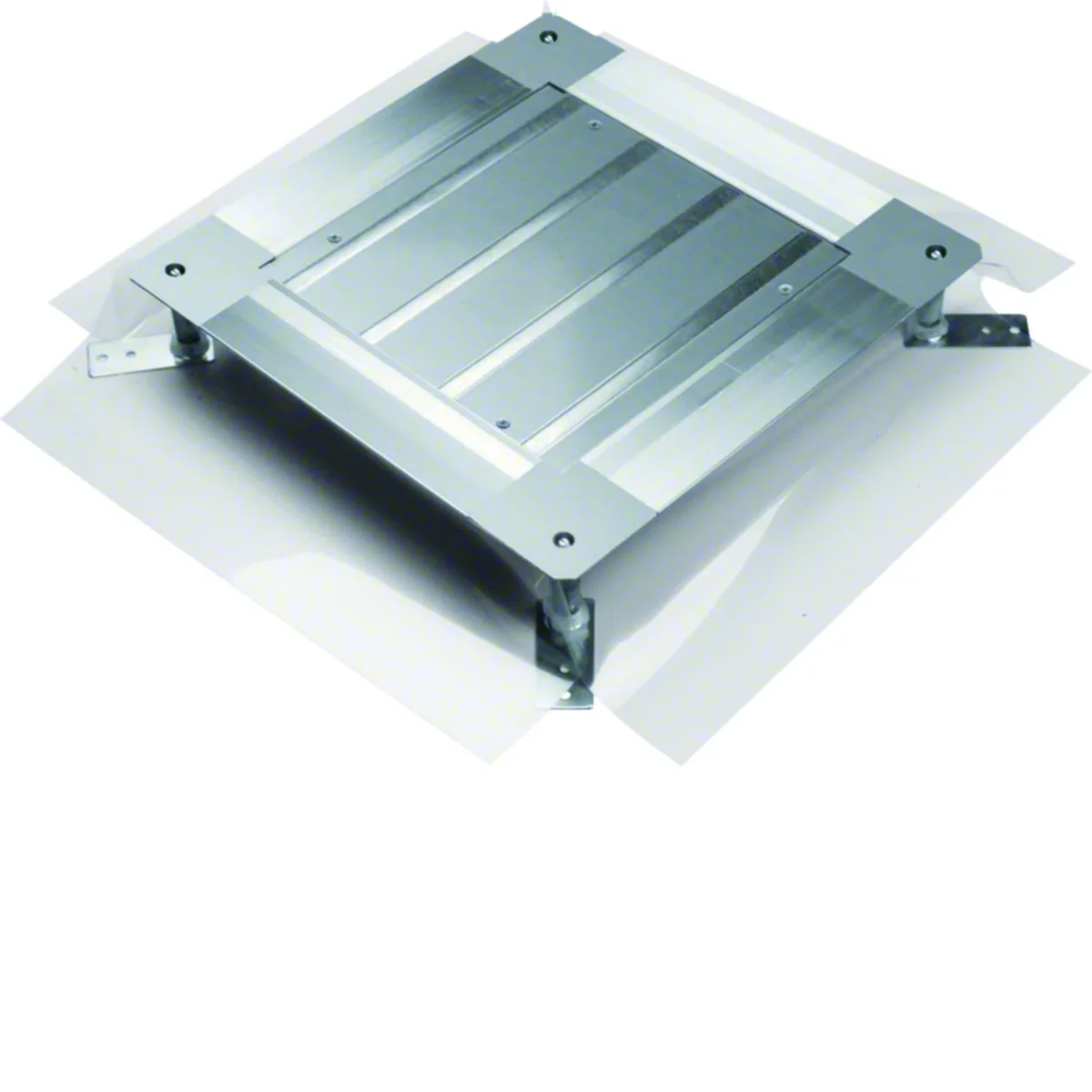

Universal floor box on legs, size 2, tehalit.UK series:

  • with internal stepless height adjustment
  • with legs and a flexible transparent foil for installation in a concrete screed
  • easy insertion of the duct into the box by cutting the foil with scissors or a knife
  • with factory-installed sound insulation and leveling screws
  • leveling from the minimum building height

Series characteristics:

Concrete screeds require flooded floor channels and floor boxes . The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Technical data

  • Halogen free
    Yes
  • Material
    Miscellaneous materials
  • Height [mm]
    75
  • Leveling range
    75/125
  • Color
    Silver
  • Family
    TEHALIT.UK
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0

Other technical data

  • Suitable for subfloor duct countersunk (closed)
    Yes
  • Duct width
    190 ... 240 mm
  • Levelling range
    75 ... 125 mm
  • Mounting cover insertion
    Yes
  • Decoupling possibility cover from base unit
    No
  • Suitable for subfloor duct overhead closed
    No
  • Min. height finishing layer
    75 mm
  • Material side wall
    Plastic
  • Suitable for placing of sealing
    No
  • Bottom plate
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 5 pcs. 20 pcs.
Weight (kg) 2,890 3,000 15,540 87,160
Width (m) 0,428 0,480 0,510 0,800
Length (m) 0,080 0,080 0,420 0,985
Depth (m) 0,428 0,480 0,510 1,200
