TEHALIT.UK Universal floor box on legs size 2 50-80 steel UDH2050080

local index:
MVD045TEHA
Catalog No:
UDH2050080
EAN code:
4012002238080
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Rectangular
Price:
102,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

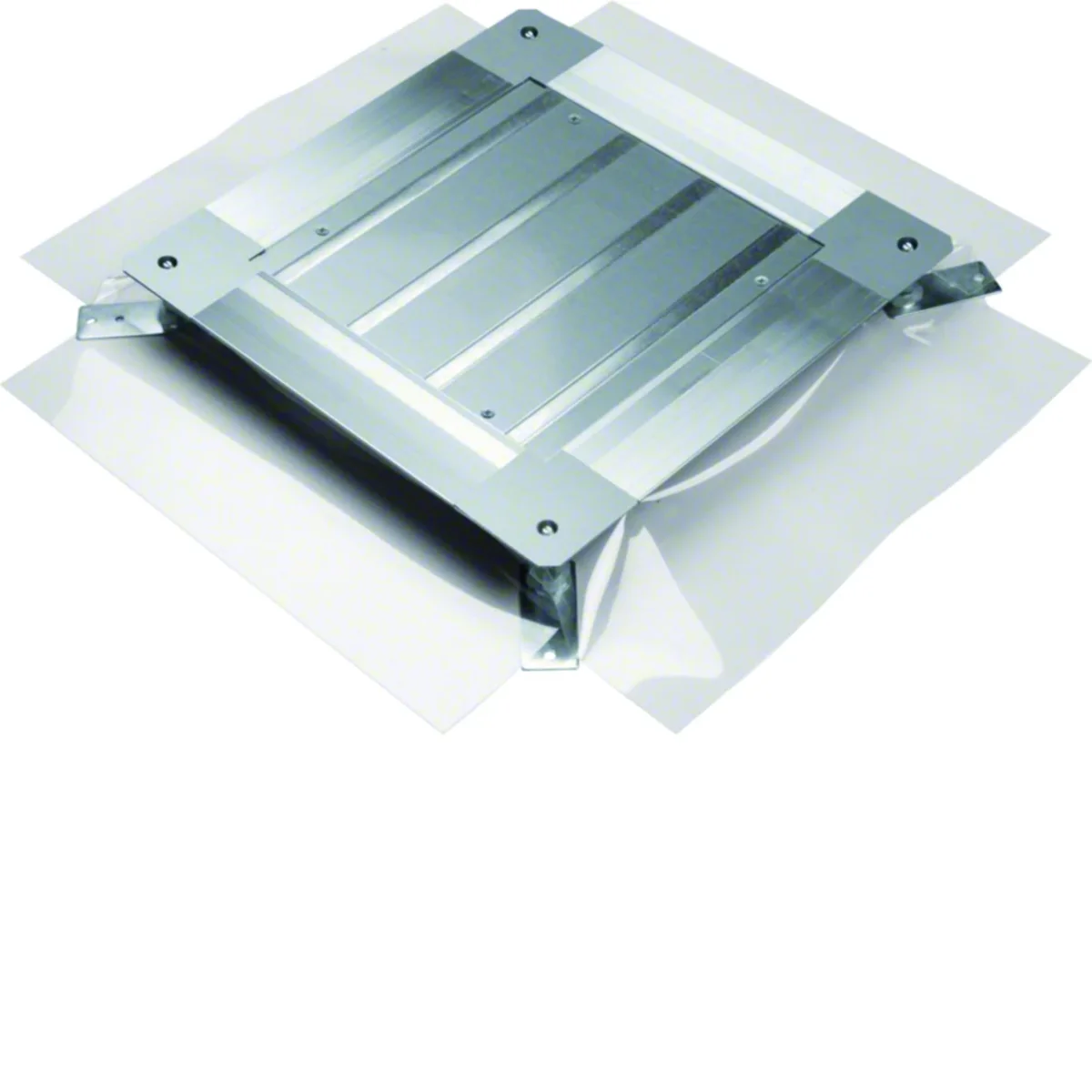

Universal floor box on legs, size 2, tehalit.UK series:

  • with internal stepless height adjustment
  • with legs and a flexible transparent foil for installation in a concrete screed
  • easy insertion of the duct into the box by cutting the foil with scissors or a knife
  • with factory-installed sound insulation and leveling screws
  • leveling from the minimum building height

Series characteristics:

Concrete screeds require flooded floor channels and floor boxes . The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Technical data

  • Halogen free
    Yes
  • Shape
    Rectangular
  • Family
    TEHALIT.UK
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0
  • Color
    Silver
  • Material
    Miscellaneous materials
  • Height [mm]
    50
  • Leveling range
    50/80

Other technical data

  • Suitable for subfloor duct countersunk (closed)
    Yes
  • Duct width
    190 ... 240 mm
  • Levelling range
    50 ... 80 mm
  • Mounting cover insertion
    Yes
  • Decoupling possibility cover from base unit
    Yes
  • Suitable for subfloor duct overhead closed
    No
  • Min. height finishing layer
    50 mm
  • Material side wall
    Plastic
  • Suitable for placing of sealing
    No
  • Bottom plate
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 6 pcs. 24 pcs.
Weight (kg) 2,779 2,780 18,020 97,080
Width (m) 0,428 0,430 0,510 0,800
Length (m) 0,060 0,055 0,420 0,985
Depth (m) 0,428 0,430 0,510 1,200
