TEHALIT.UK Universal floor box on board size 3 75-125 steel UDB3075125

local index:
MVD040TEHA
Catalog No:
UDB3075125
EAN code:
4012002238042
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Rectangular
Price:
116,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

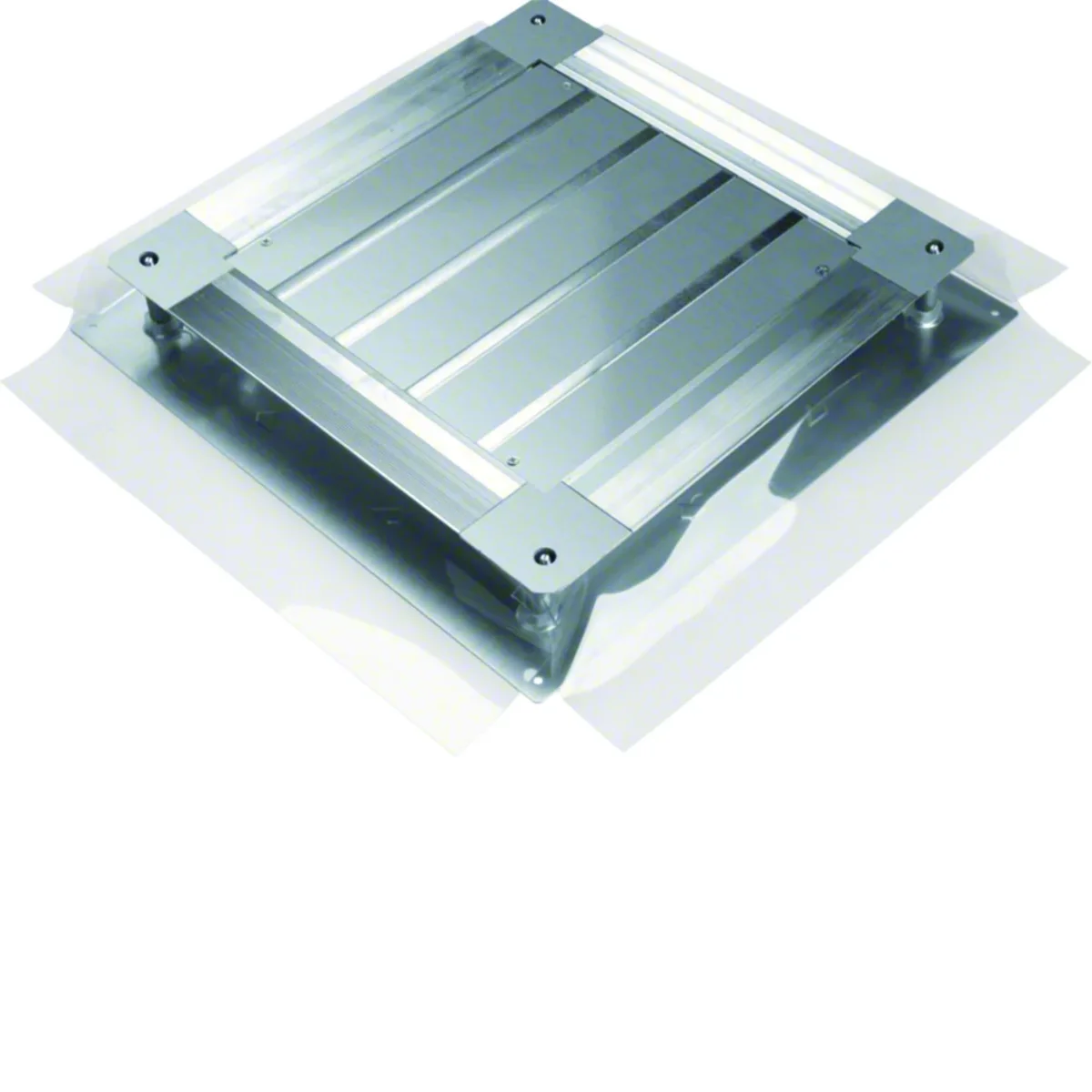

Universal floor box on board, size 3, tehalit.UK series:

  • with internal stepless height adjustment
  • with a plate and a flexible transparent foil for installation in a concrete screed
  • easy insertion of the duct into the box by cutting the foil with scissors or a knife
  • with factory-installed sound insulation and leveling screws
  • leveling from the minimum building height

Series characteristics:

Concrete screeds require flooded floor channels and floor boxes . The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Technical data

  • Halogen free
    Yes
  • Shape
    Rectangular
  • Family
    TEHALIT.UK
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0
  • Color
    Silver
  • Material
    Miscellaneous materials
  • Height [mm]
    75
  • Leveling range
    75/125

Other technical data

  • Suitable for subfloor duct countersunk (closed)
    Yes
  • Duct width
    190 ... 340 mm
  • Levelling range
    75 ... 125 mm
  • Mounting cover insertion
    Yes
  • Decoupling possibility cover from base unit
    Yes
  • Suitable for subfloor duct overhead closed
    No
  • Min. height finishing layer
    75 mm
  • Material side wall
    Plastic
  • Suitable for placing of sealing
    No
  • Bottom plate
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 5 pcs. 20 pcs.
Weight (kg) 5,480 5,524 28,870 140,480
Width (m) 0,556 0,555 0,580 0,800
Length (m) 0,080 0,070 0,420 0,840
Depth (m) 0,556 0,555 0,580 1,200
