Name: TEHALIT.UK Universal floor box on board size 3 120-170 steel
Brand: TEHALIT
SKU: MVD041TEHA
Price: 119.26 PLN

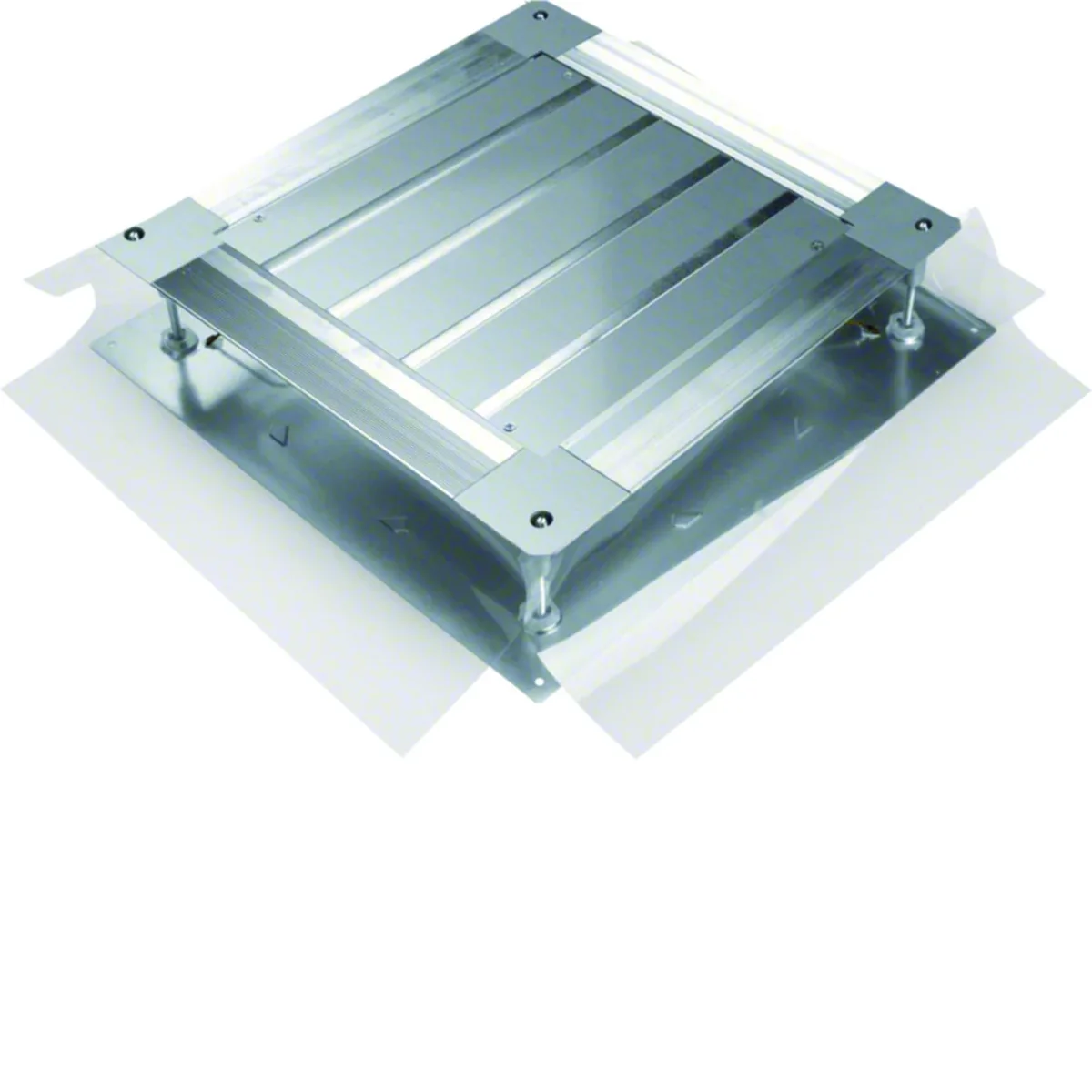

Universal floor box on board, size 3, tehalit.UK series:

with internal stepless height adjustment
with a plate and a flexible transparent foil for installation in a concrete screed
easy insertion of the duct into the box by cutting the foil with scissors or a knife
with factory-installed sound insulation and leveling screws
leveling from the minimum building height

Series characteristics:

Concrete screeds require flooded floor channels and floor boxes . The tehalit.UK floor system can be used for most types of screeds. tehalit.UK channel covers are removable, making cable and wire installation quick and easy. This saves you the trouble of dragging wires and cables, especially low-voltage wires.

Halogen free

Yes
Shape

Rectangular
Family

TEHALIT.UK
Accurate color

galvanized
PKWIU

25.99.29.0

Color

Silver
Material

Miscellaneous materials
Height [mm]

120
Leveling range

120/170

Other technical data

Suitable for subfloor duct countersunk (closed)

Yes
Duct width

190 ... 340 mm
Levelling range

120 ... 170 mm
Mounting cover insertion

Yes
Decoupling possibility cover from base unit

Yes

Suitable for subfloor duct overhead closed

No
Min. height finishing layer

120 mm
Material side wall

Plastic
Suitable for placing of sealing

No
Bottom plate

Yes

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	7 pcs.	14 pcs.
Weight (kg)	5,553	5,554	40,378	105,756
Width (m)	0,556	0,557	0,570	0,800
Length (m)	0,145	0,120	0,820	0,820
Depth (m)	0,556	0,557	0,780	1,200
