Name: TEHALIT.BK Mounting box R12 fi306 side protective foil
Brand: TEHALIT
SKU: MVD010TEHA
Price: 177.48 PLN

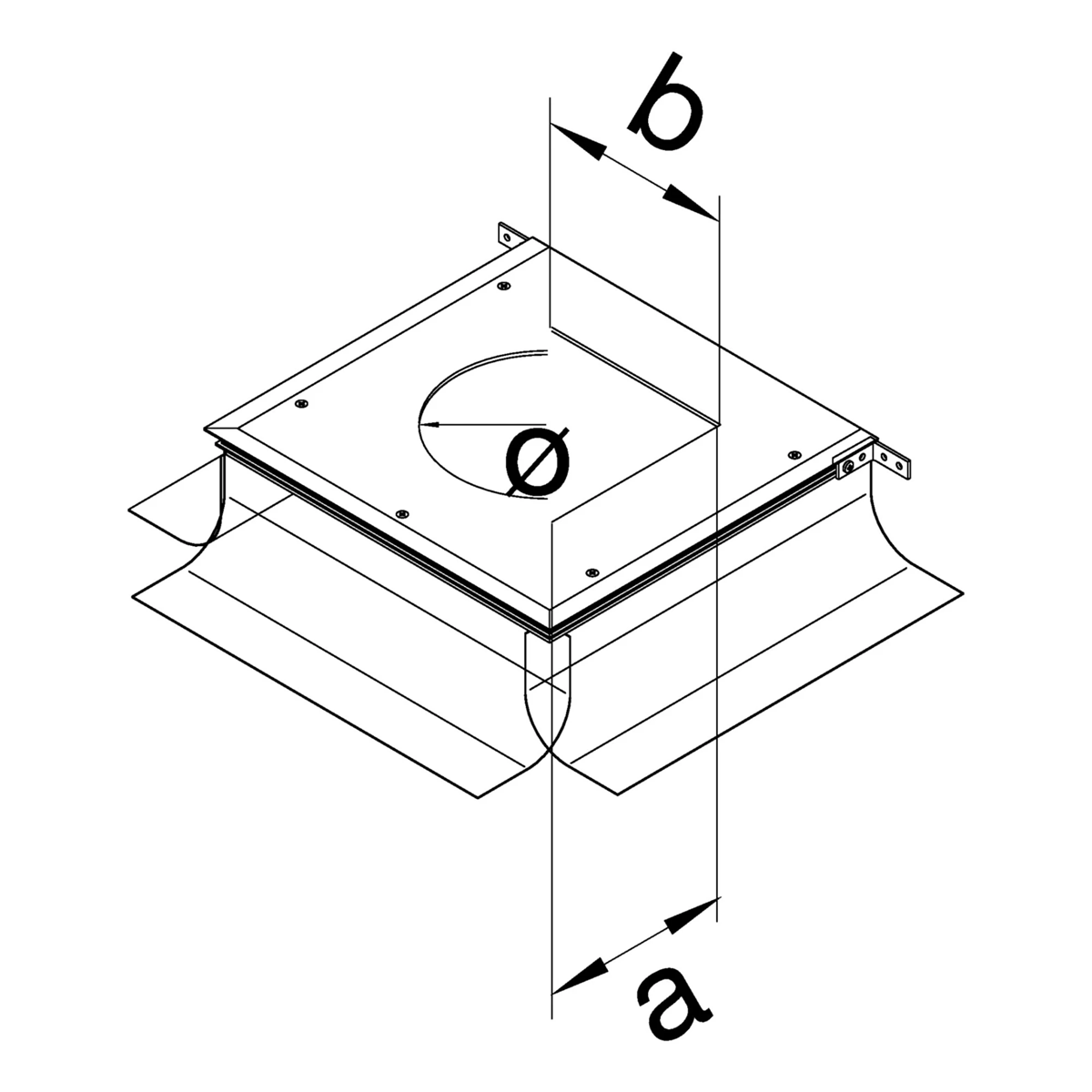

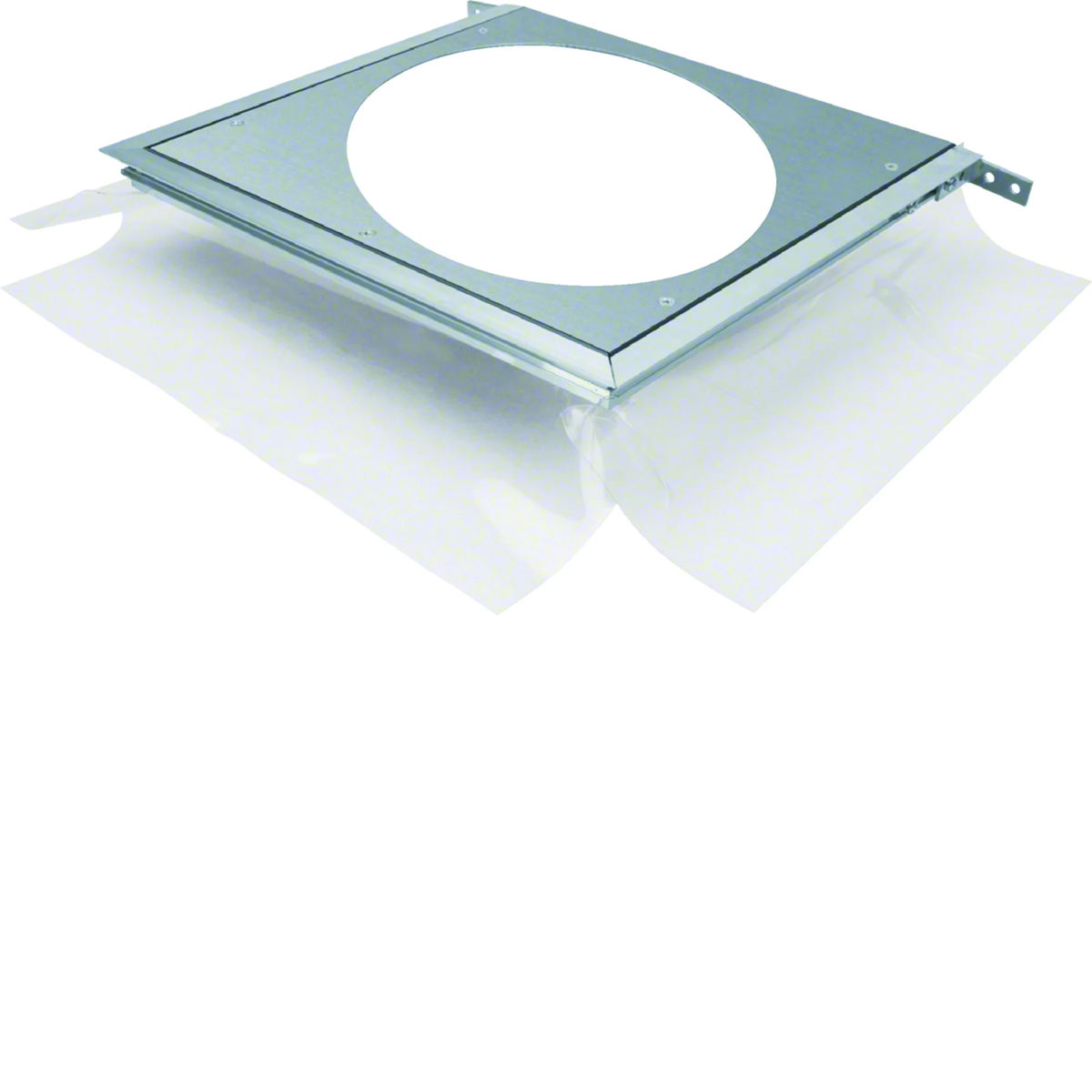

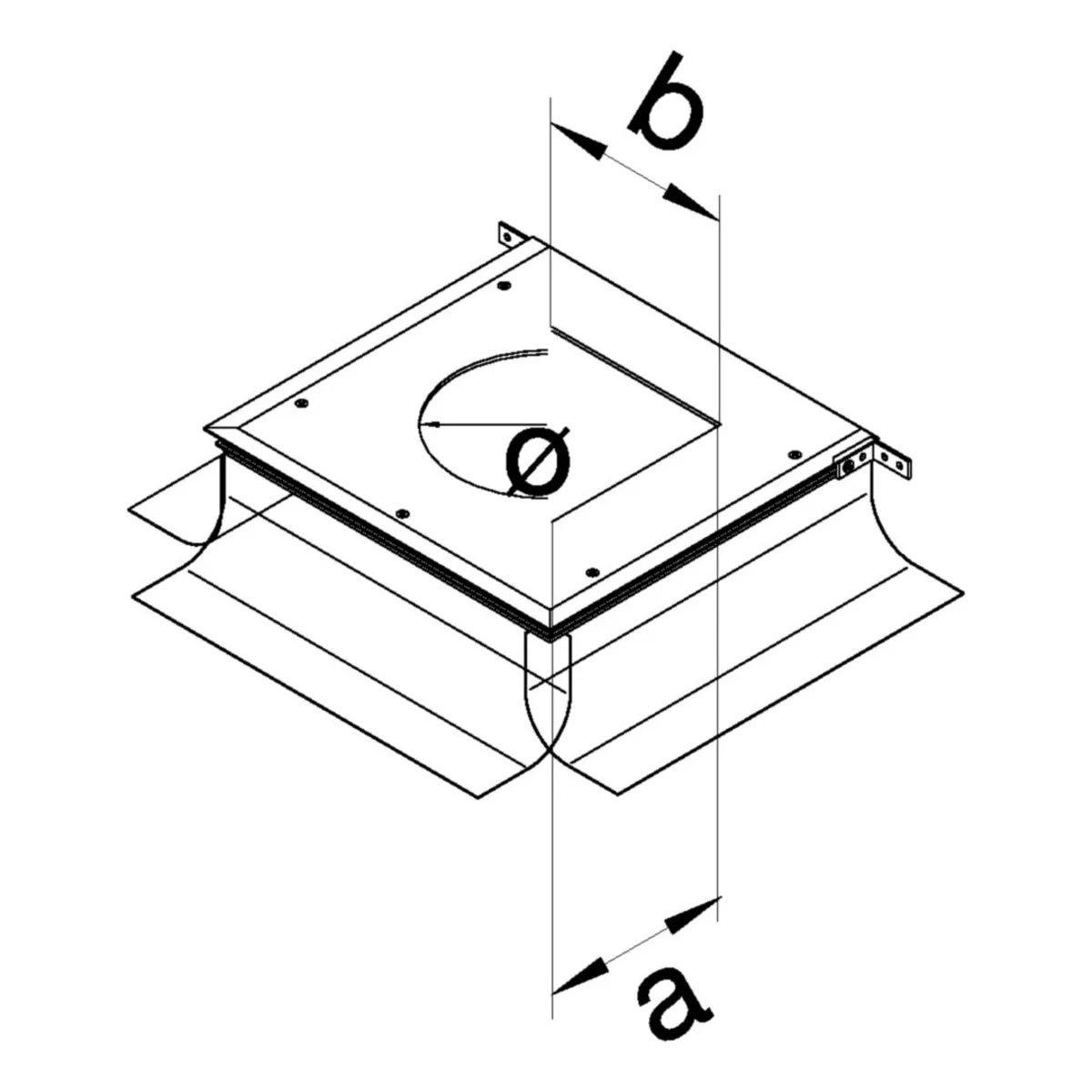

Mounting box with protective foil, lateral, with mounting hole R12, diameter 306mm, tehalit.BK series.

box for side mounting (on the side of the duct) for dry rooms and dry or damp-cleaned floors,
the floor box avoids the diameter limitations that occur when installing directly in the duct.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room . The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK
Accurate color

galvanized
PKWIU

25.99.29.0

Length [mm]

411
Material

Metal
Width [mm]

388
How to use and clean the floor

dry

Other technical data

Min. height finishing layer

77 mm
Mounting opening

Round
Length

411 mm
Bottom duct

No
Material cover

Steel

Levelling range

45 ... 130 mm
Width

388 mm
Floor maintenance

Dry
Material side wall/bottom duct

Plastic
Cover mounting opening

No

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	20 pcs.
Weight (kg)	4,500	5,010	125,200
Width (m)	0,411	0,590	0,800
Length (m)	0,060	0,060	0,750
Depth (m)	0,459	0,610	1,200
