Name: TEHALIT.BK Mounting box Q12 244x244 side protective foil
Brand: TEHALIT
SKU: MVD007TEHA
Price: 177.32 PLN

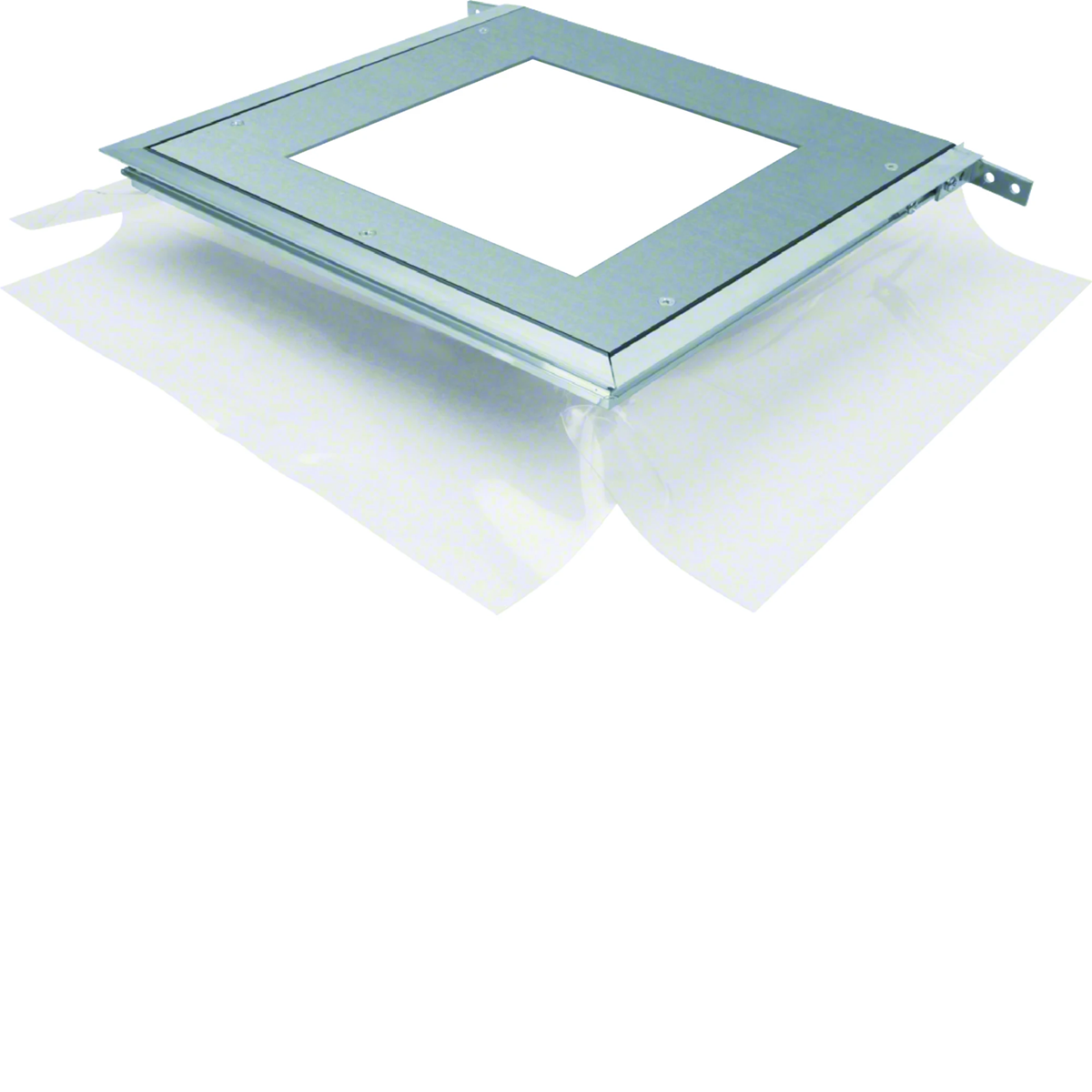

Mounting box with protective foil, lateral, with mounting hole Q12, dimensions 244x244mm, tehalit.BK series.

box for side mounting (on the side of the duct) for dry rooms and dry or damp-cleaned floors,
the floor box avoids the diameter limitations that occur when installing directly in the duct.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room . The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK

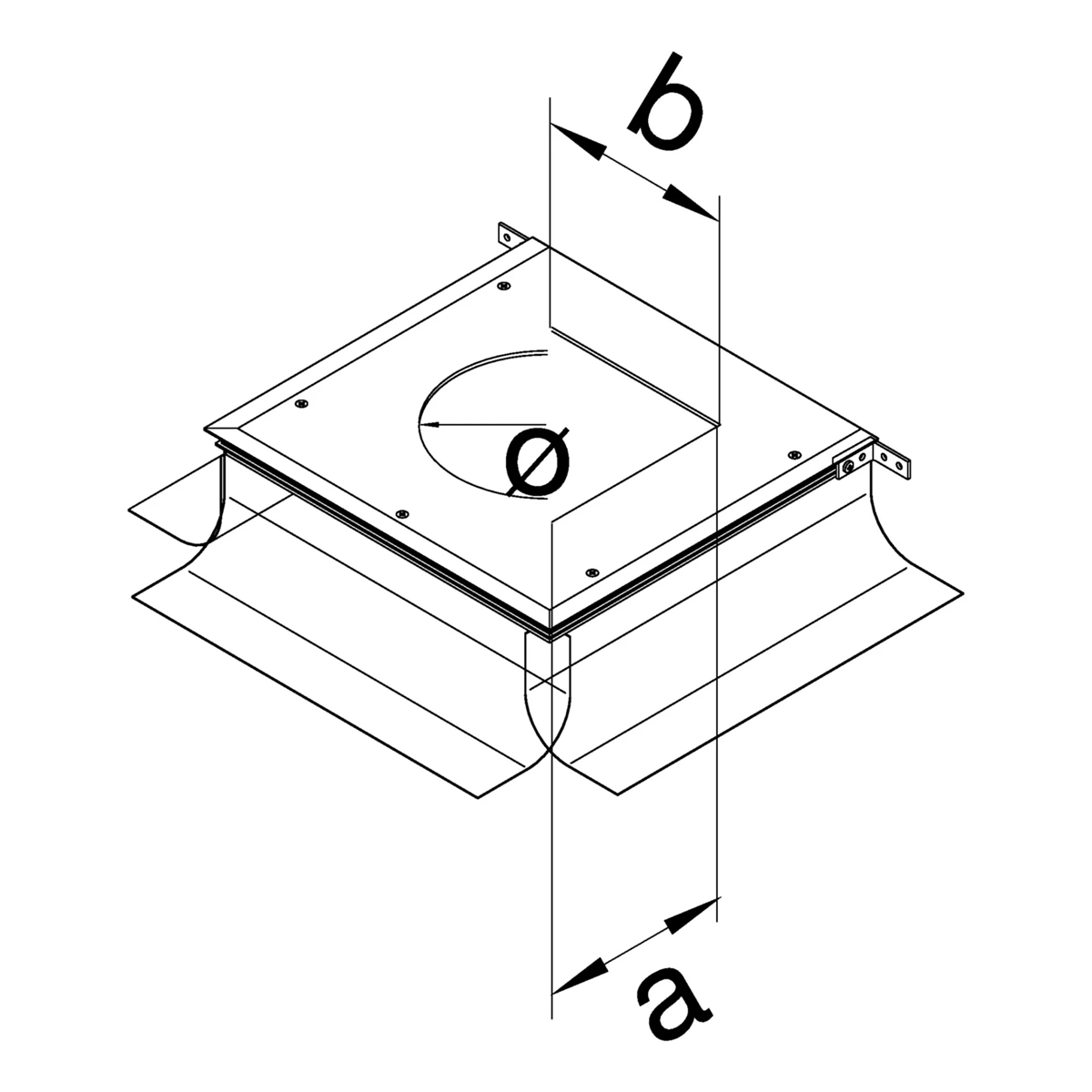

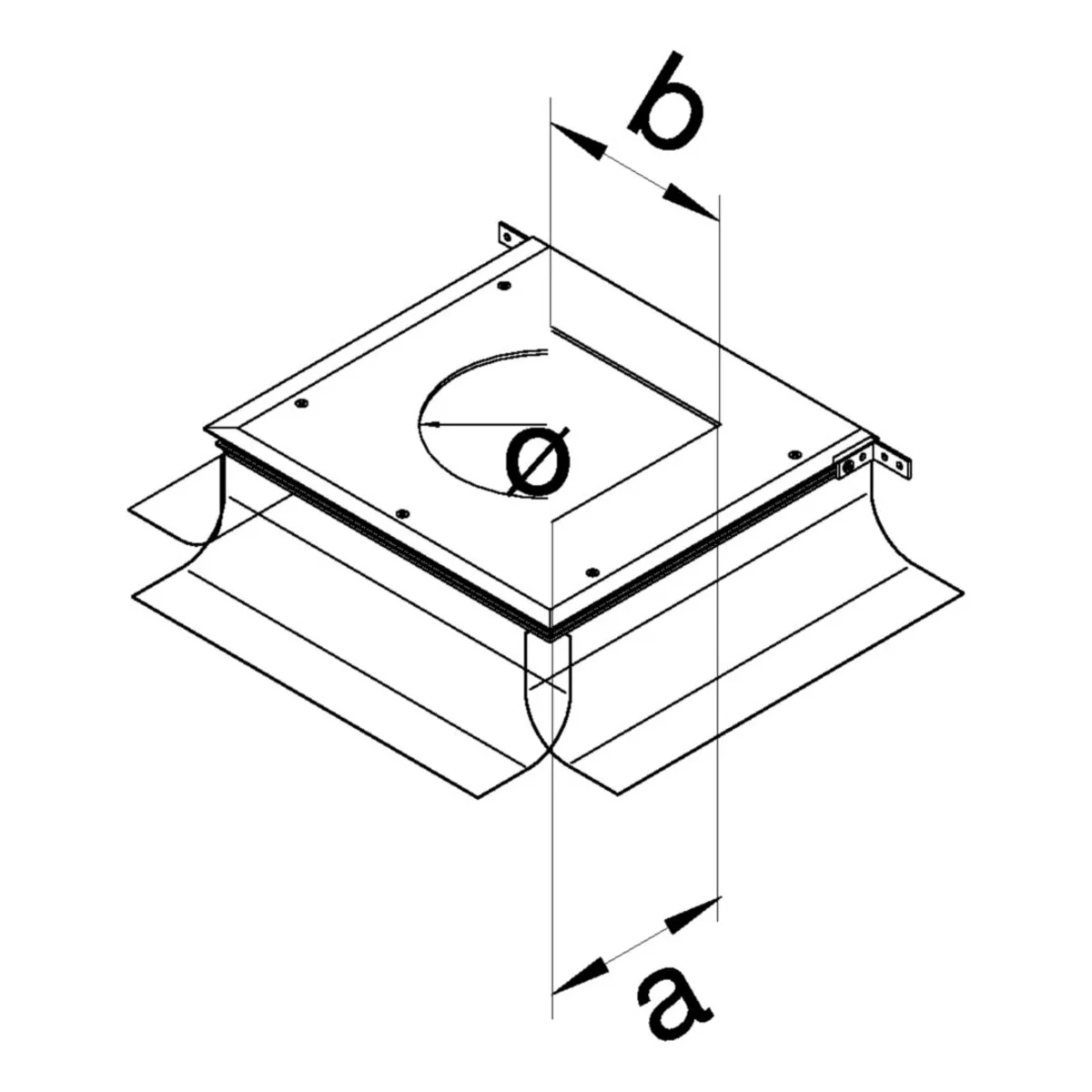

Dimension A [mm]

244
Accurate color

galvanized
PKWIU

25.99.29.0

Length [mm]

411
Material

Metal
Width [mm]

388
Dimension B [mm]

244
How to use and clean the floor

dry

Other technical data

Min. height finishing layer

77 mm
Mounting opening

Square
Length

411 mm
Bottom duct

No
Material cover

Steel

Levelling range

45 ... 130 mm
Width

388 mm
Floor maintenance

Dry
Material side wall/bottom duct

Plastic
Cover mounting opening

No

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	30 pcs.
Weight (kg)	4,500	4,510	160,300
Width (m)	0,411	0,590	0,800
Length (m)	0,060	0,060	1,050
Depth (m)	0,459	0,610	1,200
