TEHALIT.BK Mounting box E09 200x253 side protective foil BKSAE09

local index:
MVD003TEHA
Catalog No:
BKSAE09
EAN code:
4012002240687
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 411
Color: Silver
Price:
172,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

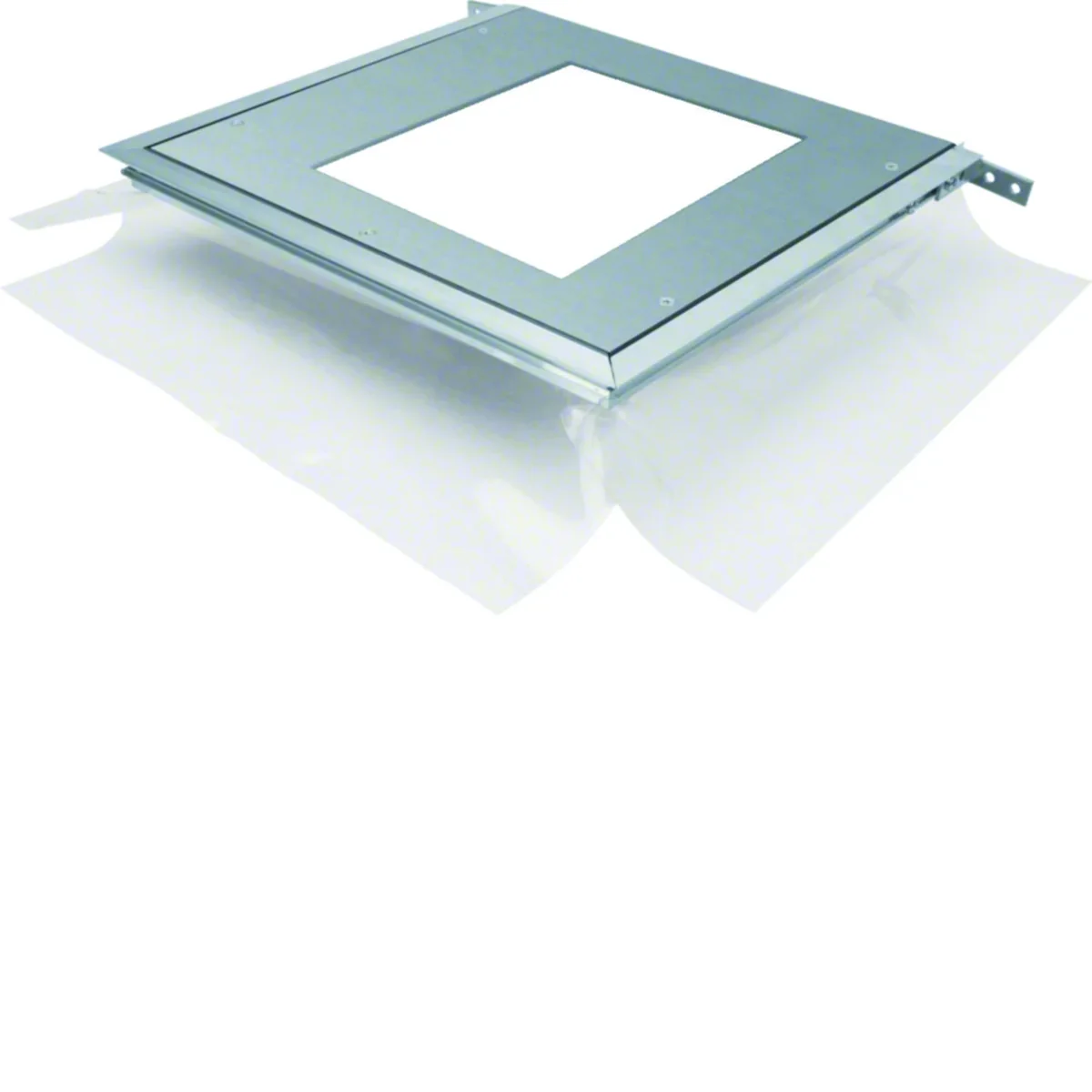

Mounting box with protective foil, lateral, with E09 mounting hole, dimensions 200x253mm, tehalit.BK series.

  • box for side mounting (on the side of the duct) for dry rooms and dry or damp-cleaned floors,
  • the floor box avoids the diameter limitations that occur when installing directly in the duct.
  • Characteristics of the series:

    The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room . The tehalit.BK system can be used with flat screeds from 30 mm.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Family
    TEHALIT.BK

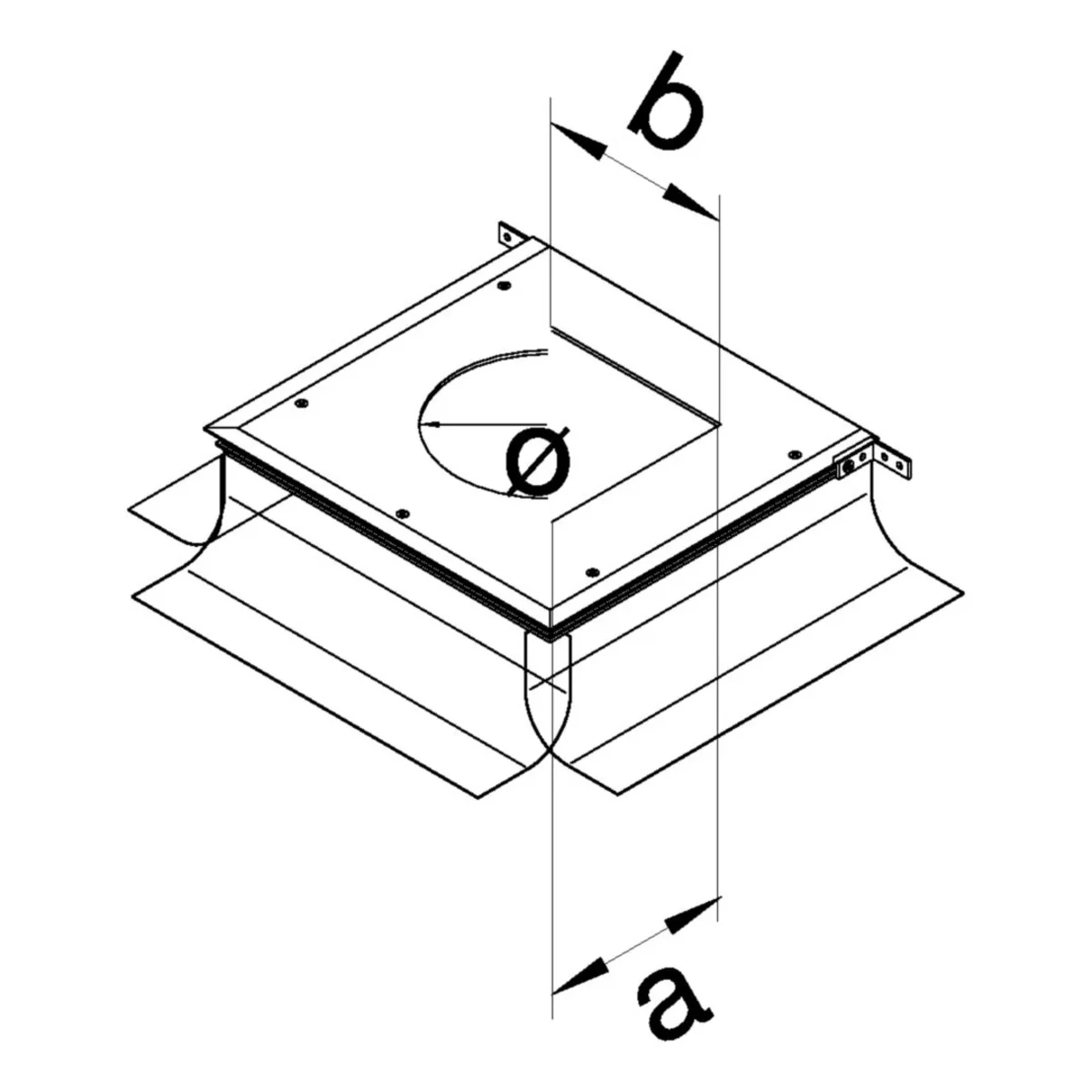

  • Dimension A [mm]
    200
  • Accurate color
    galvanized
  • PKWIU
    25.99.29.0
  • Length [mm]
    411
  • Material
    Metal
  • Width [mm]
    388
  • Dimension B [mm]
    253
  • How to use and clean the floor
    dry

Other technical data

  • Min. height finishing layer
    77 mm
  • Mounting opening
    Rectangular
  • Width
    388 mm
  • Floor maintenance
    Dry
  • Material side wall/bottom duct
    Plastic
  • Cover mounting opening
    No
  • Levelling range
    45 ... 130 mm
  • Number of appliances to build in
    9
  • Length
    411 mm
  • Bottom duct
    No
  • Material cover
    Steel

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 20 pcs.
Weight (kg) 4,499 4,500 115,000
Width (m) 0,411 0,411 -
Length (m) 0,060 0,060 -
Depth (m) 0,459 0,459 -
