Name: TEHALIT.BK Fi50 mounting box is covered with full side protective foil
Brand: TEHALIT
SKU: MVD004TEHA
Price: 185.04 PLN

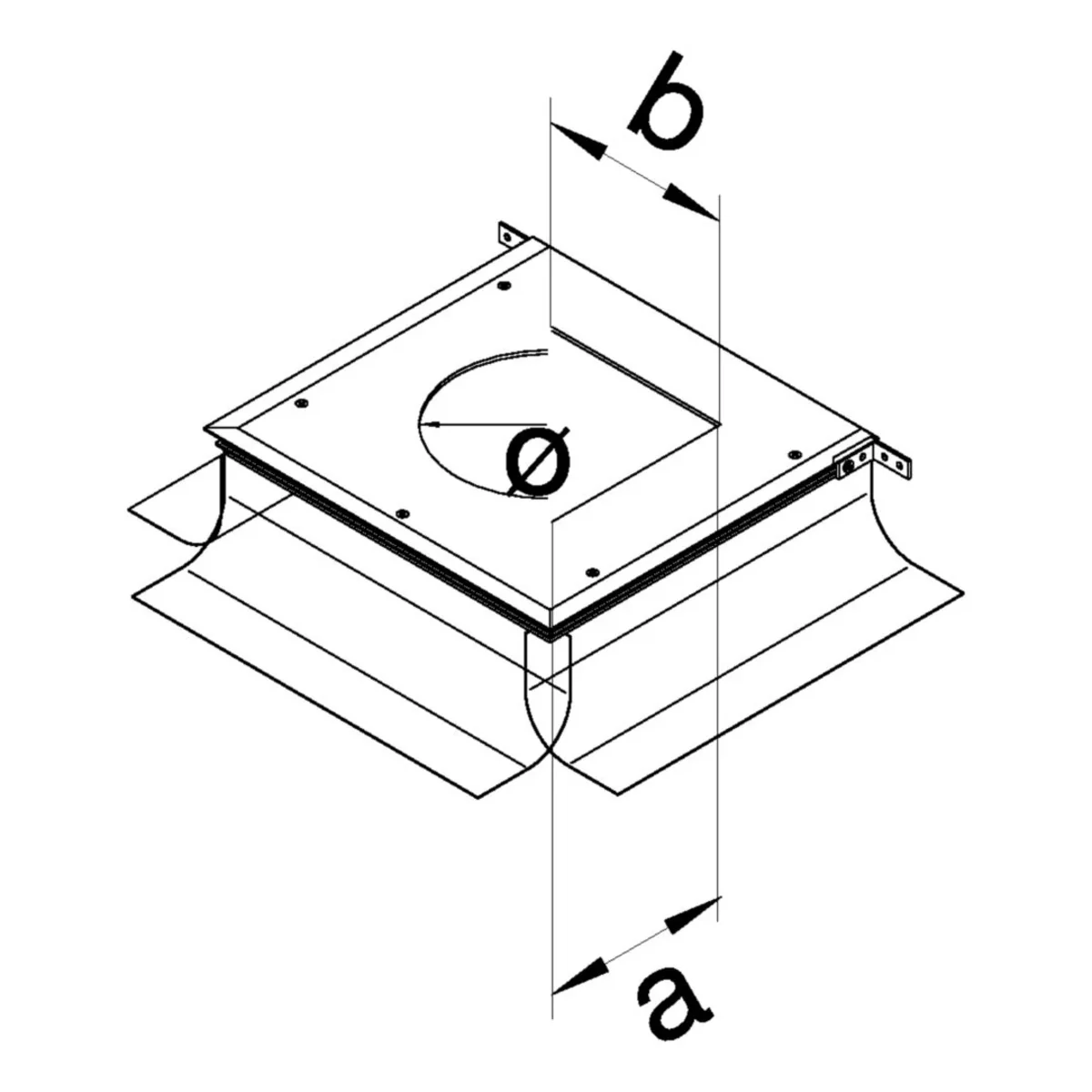

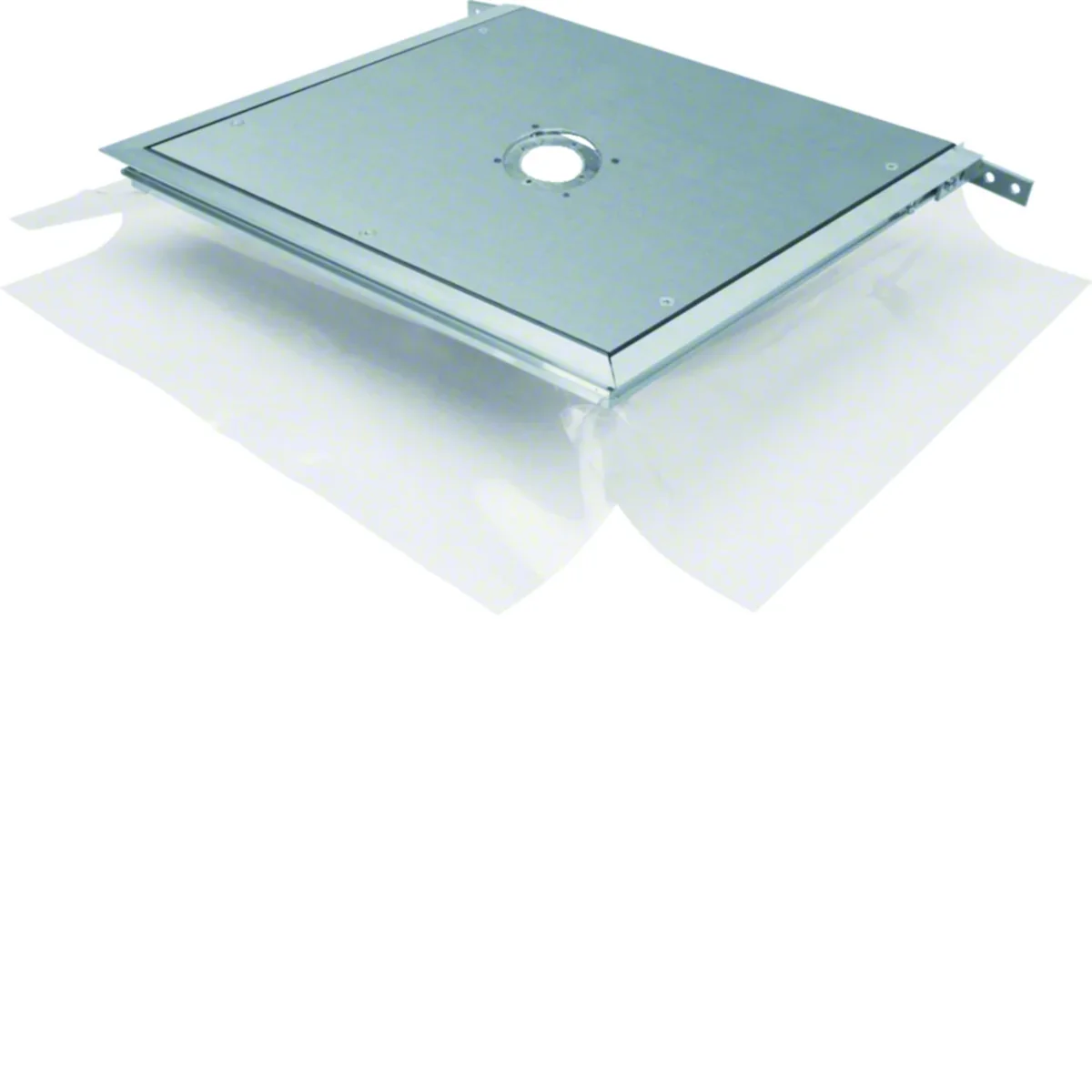

Mounting box with protective foil, full side cover, with a mounting hole with a diameter of 50mm, tehalit.BK series.

side-mounted box (on the side of the duct) for dry rooms and dry or wet-cleaned floors,
the floor box avoids the diameter limitations that occur when installing directly in the duct.

Characteristics of the series:

The tehalit.BK co-horizontal duct system is used to run cables and other installations, e.g. water or heating pipes in floors, anywhere in the room. The tehalit.BK system can be used with flat screeds from 30 mm.

Halogen free

Yes
Color

Silver
Family

TEHALIT.BK
Accurate color

galvanized
PKWIU

25.99.29.0

Length [mm]

411
Material

Metal
Width [mm]

388
How to use and clean the floor

dry

Other technical data

Min. height finishing layer

45 mm
Mounting opening

Round
Length

411 mm
Bottom duct

No
Material cover

Steel

Levelling range

45 ... 130 mm
Width

388 mm
Floor maintenance

Dry
Material side wall/bottom duct

Plastic
Cover mounting opening

No

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	20 pcs.
Weight (kg)	5,374	5,375	132,480
Width (m)	0,411	0,411	0,800
Length (m)	0,060	0,060	0,800
Depth (m)	0,459	0,459	1,200
