SYSTO Video socket SUB-D 15 VGA screw terminals 2 white modules WS276

local index:
MGH002TEHA
Catalog No:
WS276
EAN code:
3250617082761

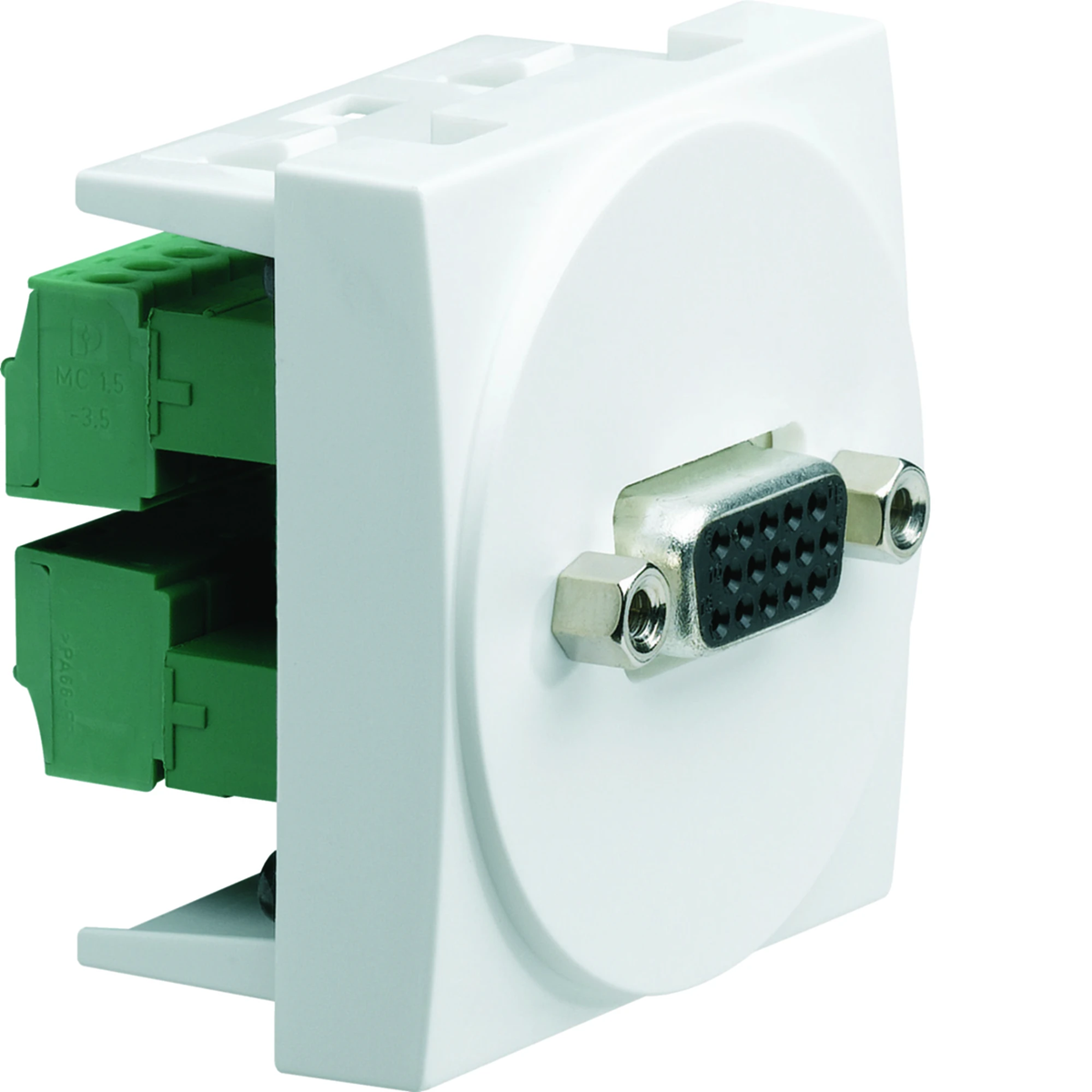

SYSTO Video socket SUB-D 15 VGA screw terminals 2 white modules
SYSTO Video socket SUB-D 15 VGA screw terminals 2 white modules

Click on the photo to enlarge

Manufacturer: TEHALIT
Depth [mm]: 37
Number of sockets: 1
Number of modules: 2
See full description
Price:
82,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

Video socket VGA from the systo series. The product catalog number is WS276.



FEATURES

  • 2 modular.
  • SUB-D 15 VGA
  • Clamp connection.



SERIES DESCRIPTION

system< /strong> is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. The VGA port  characterizes the features of this unique series.

Technical data

  • Depth [mm]
    37
  • Number of modules
    2
  • Shape
    Square
  • Installation
    Flush-mounted
  • Family
    SYSTEM
  • Width [mm]
    45
  • Height [mm]
    45
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Color
    White
  • Material
    Plastic
  • Type
    HDMI / VGA
  • Level of security
    IP20
  • Type
    45x45
  • Surface finish
    Matt satin
  • Variant
    VGA
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Clamp mounting
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
  • Utilization
    D-sub-miniature
  • With dust cover
    No
  • Outlet direction
    Straight
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    2
  • With strain relief
    No
  • Luster terminal
    No
  • Device width
    45 mm
  • Device depth
    37 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,059 0,060 3,980 118,520
Width (m) 0,045 0,067 0,321 0,800
Length (m) 0,037 0,061 0,216 1,014
Depth (m) 0,045 0,074 0,369 1,200
