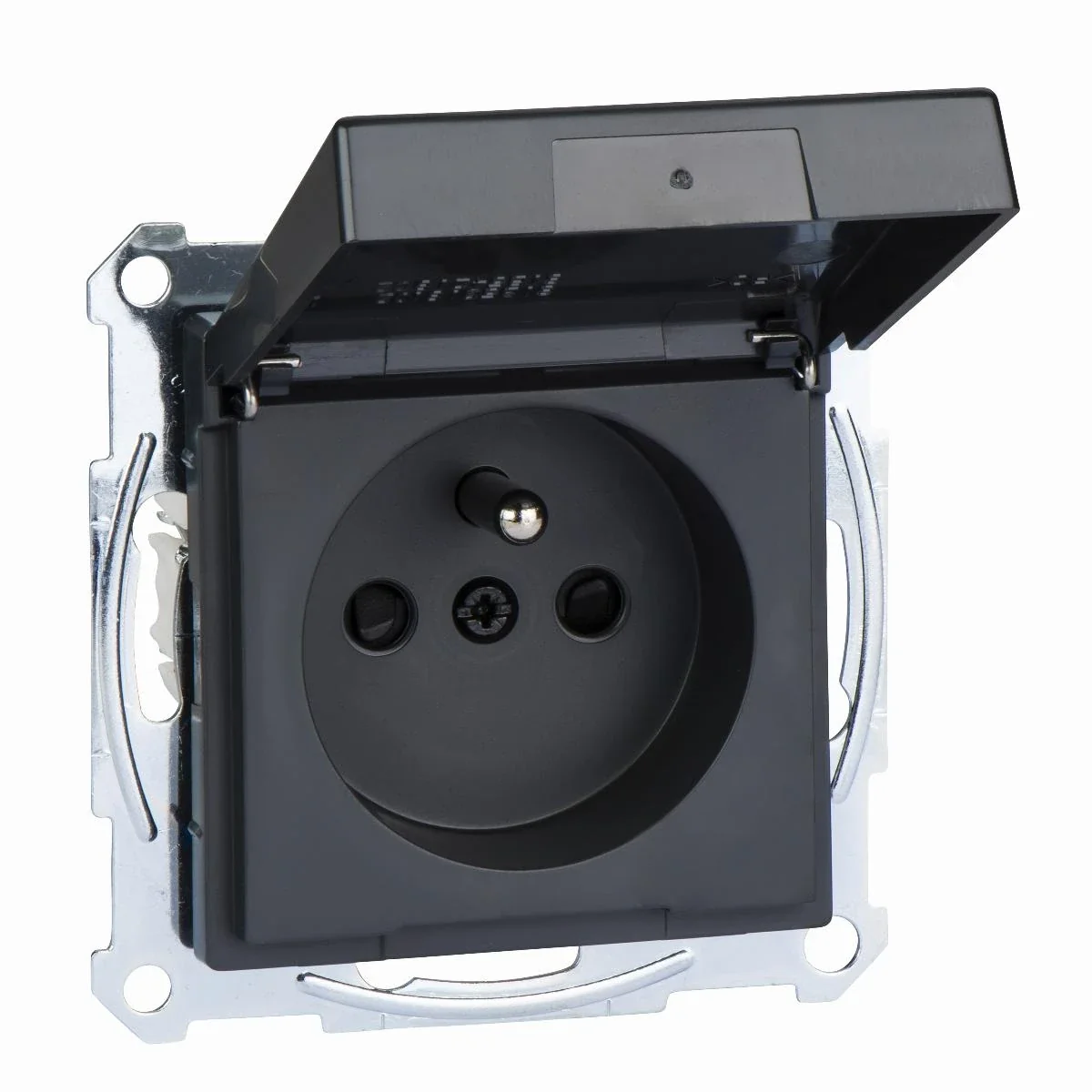

SYSTEM M Plug-in socket with earthing and a flap IP44 with shutters screwless terminals anthracite MTN2514-0414

Místní index:
MEB018MERT
Katalogové číslo.:
MTN2514-0414
EAN kód:
3606480306242
Výrobce: MERTEN
Number of sockets: 1
Color: Graphite
Shape: Square
Cena:
148,51 zł
gross / kusů.
(včetně DPH 23%)
2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Socket with grounding, with shutters for current paths



SERIES DESCRIPTION

Exclusive Merten wiring accessories System M is design, technology and intelligence integrated into one system. The accessories are available in various colors, materials and versions

The exclusive Merten System M wiring accessories is structured flexibility with over 150 functions. In this series you will find not only switches and electrical sockets, but also systems for controlling lighting, blinds and temperature. Infinite combination possibilities are given by dividing the series into mechanisms and keys matching 6 different series of frames. Thanks to this, you only need to change the frame to completely change the interior of your apartment, house or office!

Technické údaje

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Ground
    Hurt
  • Accurate color
    anthracite
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Exact material
    PC
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SYSTEM M
  • Type
    Flush-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0

Další technické údaje

  • Model
    Earthing pin
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With signal lamp
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Anthracite
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Special power supply
    No special power supply
  • With miniature fuse
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    71 mm
  • Device depth
    44 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • For heavy conditions according to VDE
    No
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With built-in USB power supply
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7024
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Fault current protection
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With loop through function
    Yes
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    71 mm
  • Min. depth of built-in installation box
    40 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
