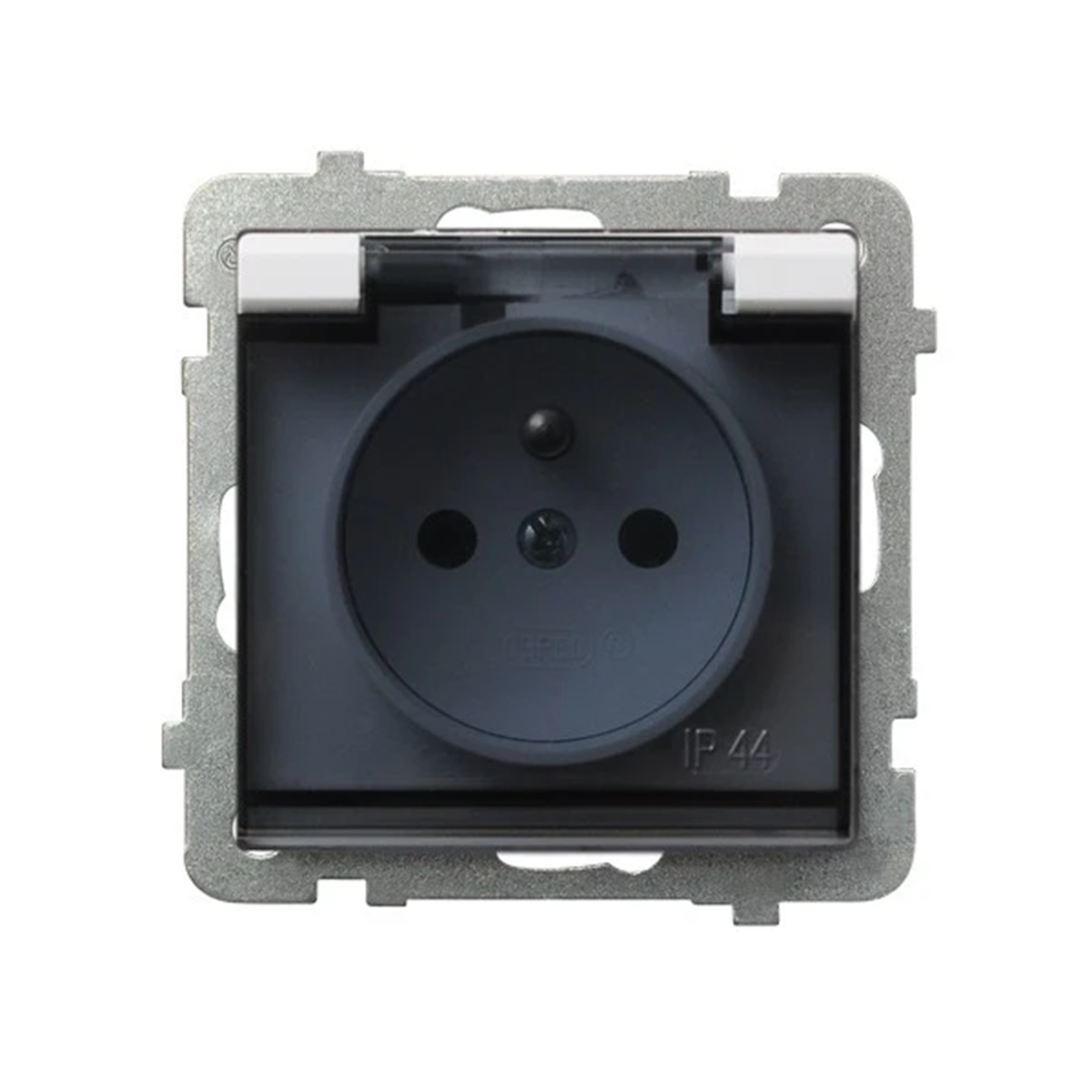

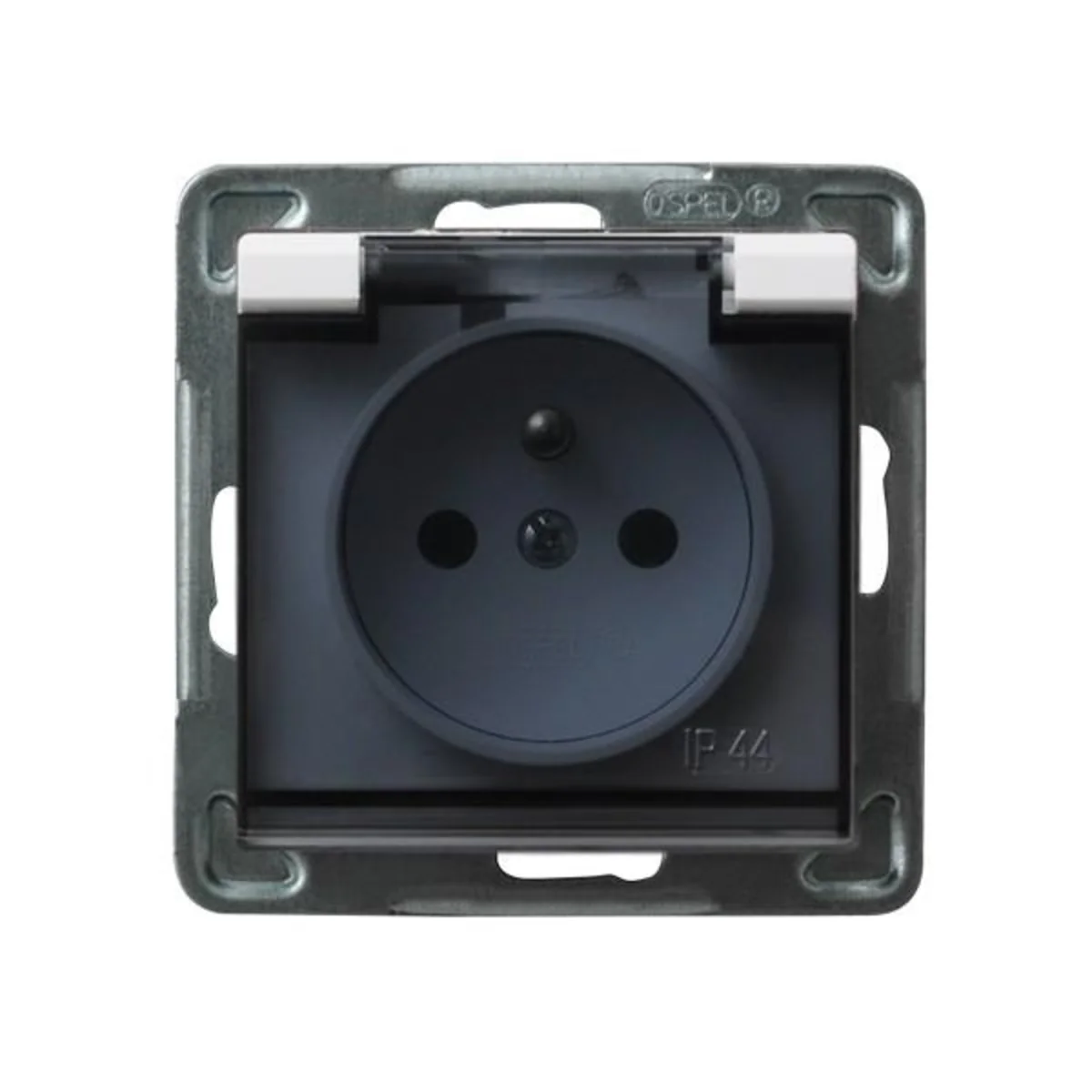

SONATA Splashproof socket with grounding white, without frame, transparent cover GPH-1RZ/M/00/D
local index:
MEB023OSPE
Catalog No:
GPH-1RZ/M/00/D
EAN code:
5907577444297
Price:
7,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Hermetic socket equipped with a flap, with grounding. A frame should be used.
SERIES DESCRIPTION
The Sonata collection meets the highest technological standards, as well as being comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

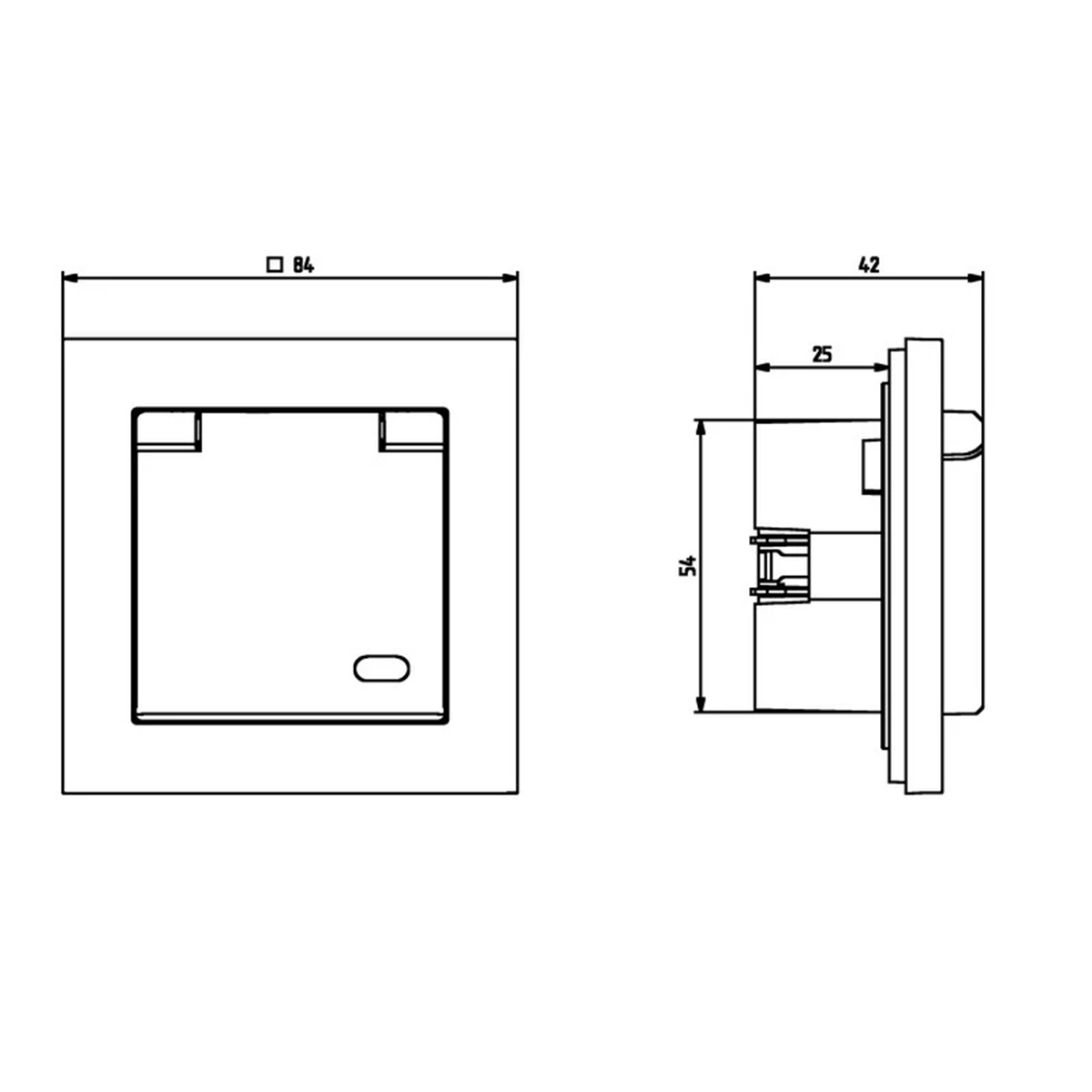

Technical data
-
Depth [mm]42
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA
-
Width [mm]71
-
GroundHurt
-
Surface protectionNatural
-
Mounting depth [mm]25
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorTransparent
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeFlush-mounted
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
Exact materialPlastic Metal
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Imprint/indicationDegree of protection (IP)
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)9003
-
LockableYes
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP44
-
Device width71 mm
-
Device depth42 mm
-
Protective contactYes
-
Number of active contacts (round)1
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourWhite
-
TransparentYes
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height71 mm
-
Min. depth of built-in installation box60 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,171 |
| Length (m) | 0,342 |
| Depth (m) | 0,088 |
