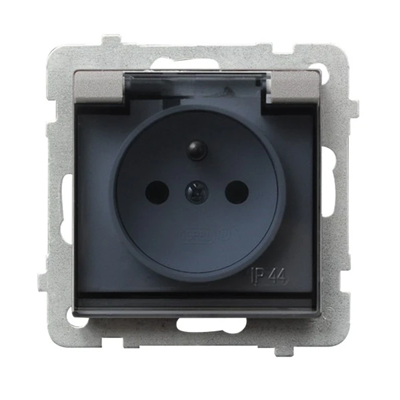

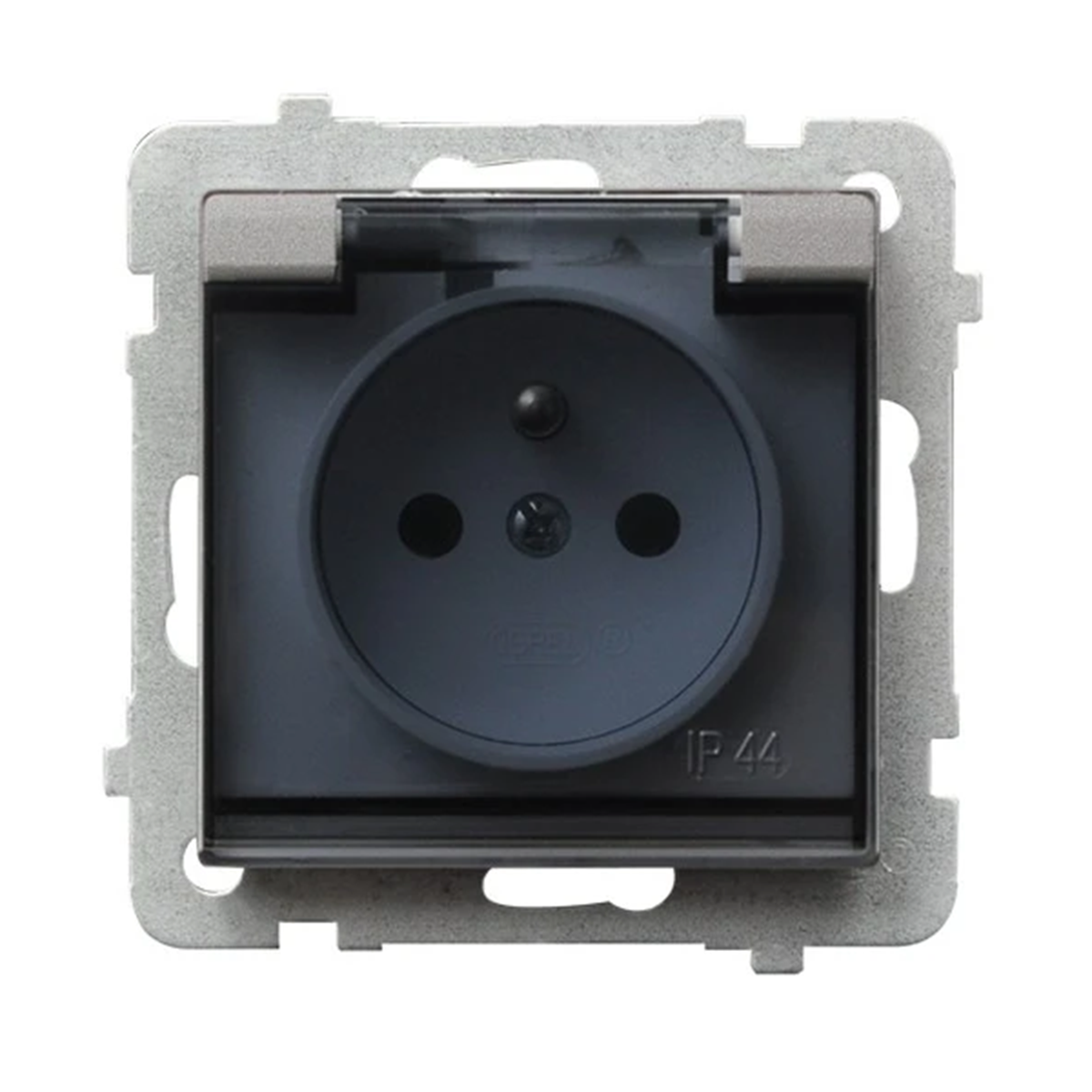

SONATA Splashproof socket with grounding silver matt, frameless, transparent lid, equipped with shutters for current paths GPH-1RZP/M/38/D

local index:
MEB124OSPE
Catalog No:
GPH-1RZP/M/38/D
EAN code:
5907577447342
Manufacturer: OSPEL
Depth [mm]: 42
Number of sockets: 1
Color: Silver
Price:
9,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic electric socket from the Sonata series, from Ospel. The product catalog number is GPH-1RZP/M/38/D.



FEATURES

  • With grounding.
  • With shutters for current paths.
  • Module without frame.
  • Color matte silver.
  • Clear cover.
  • Rated current 16A.
  • < li>Rated voltage 230V.
  • Ingress protection IP44.
  • Mounting flush.



SERIES DESCRIPTION

The Sonata  collection is a comprehensive and functional arrangement solution meeting the highest technological standards . This modular series is based on a strong and simple square. Products from the Sonata series, diversified in terms of usability and safety, are easily used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces - kitchens and bathrooms. The hermetic electrical socket has all the features of this unique series.

Technical data

  • Depth [mm]
    42
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    matt silver
  • Mounting depth [mm]
    25
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Imprint/indication
    Degree of protection (IP)
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7047
  • Lockable
    Yes
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    71 mm
  • Device depth
    42 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Silver
  • Transparent
    Yes
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Manufacturer details

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
