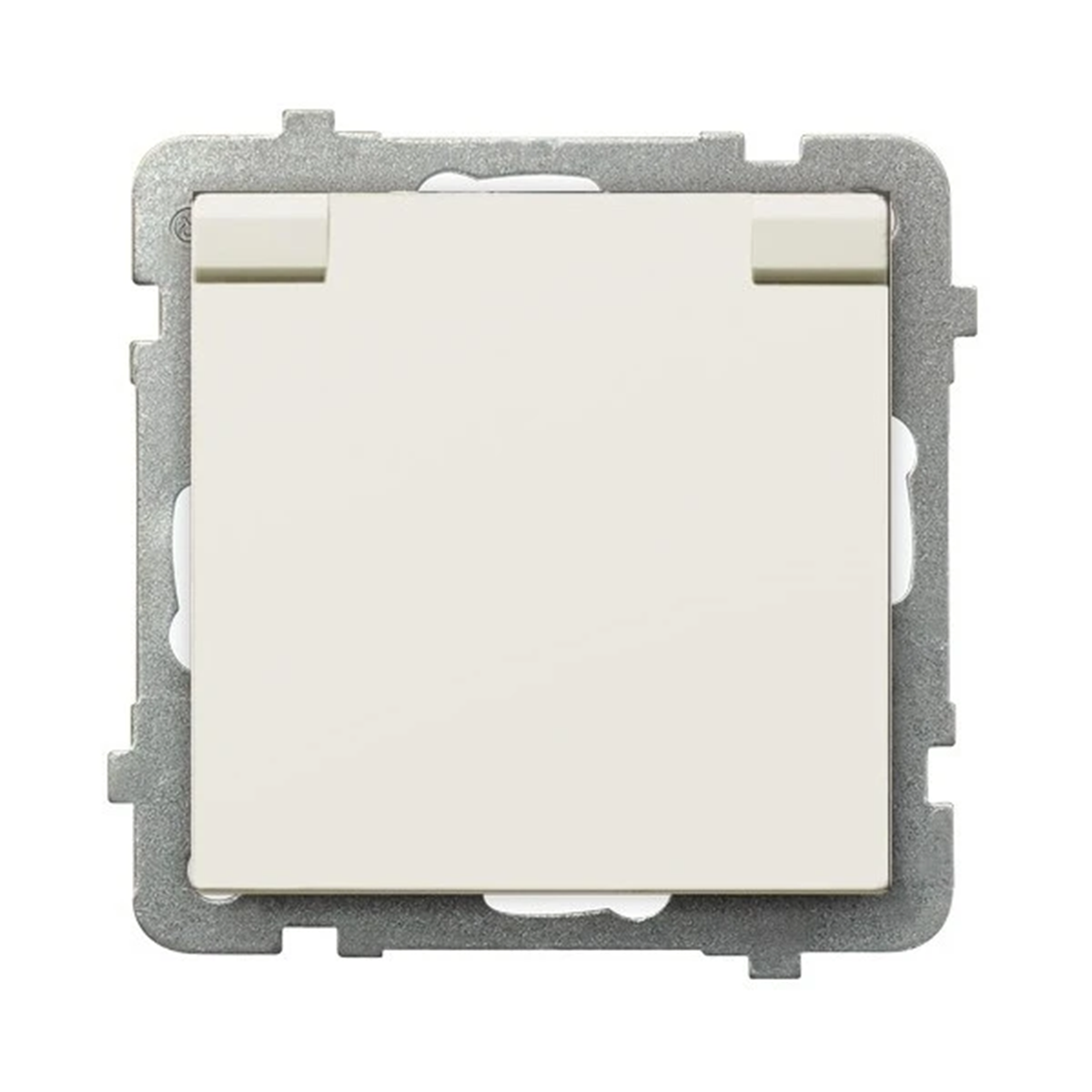

SONATA Splashproof grounded socket ecru, frameless, ecru lid GPH-1RZ/M/27/W
Índice local:
MEB026OSPE
Número de catálogo:
GPH-1RZ/M/27/W
Código EAN:
5907577446949
Precio:
7,54 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Hermetic socket equipped with a flap, with grounding. A frame should be used.
SERIES DESCRIPTION
The Sonata collection meets the highest technological standards, as well as being comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Datos técnicos
-

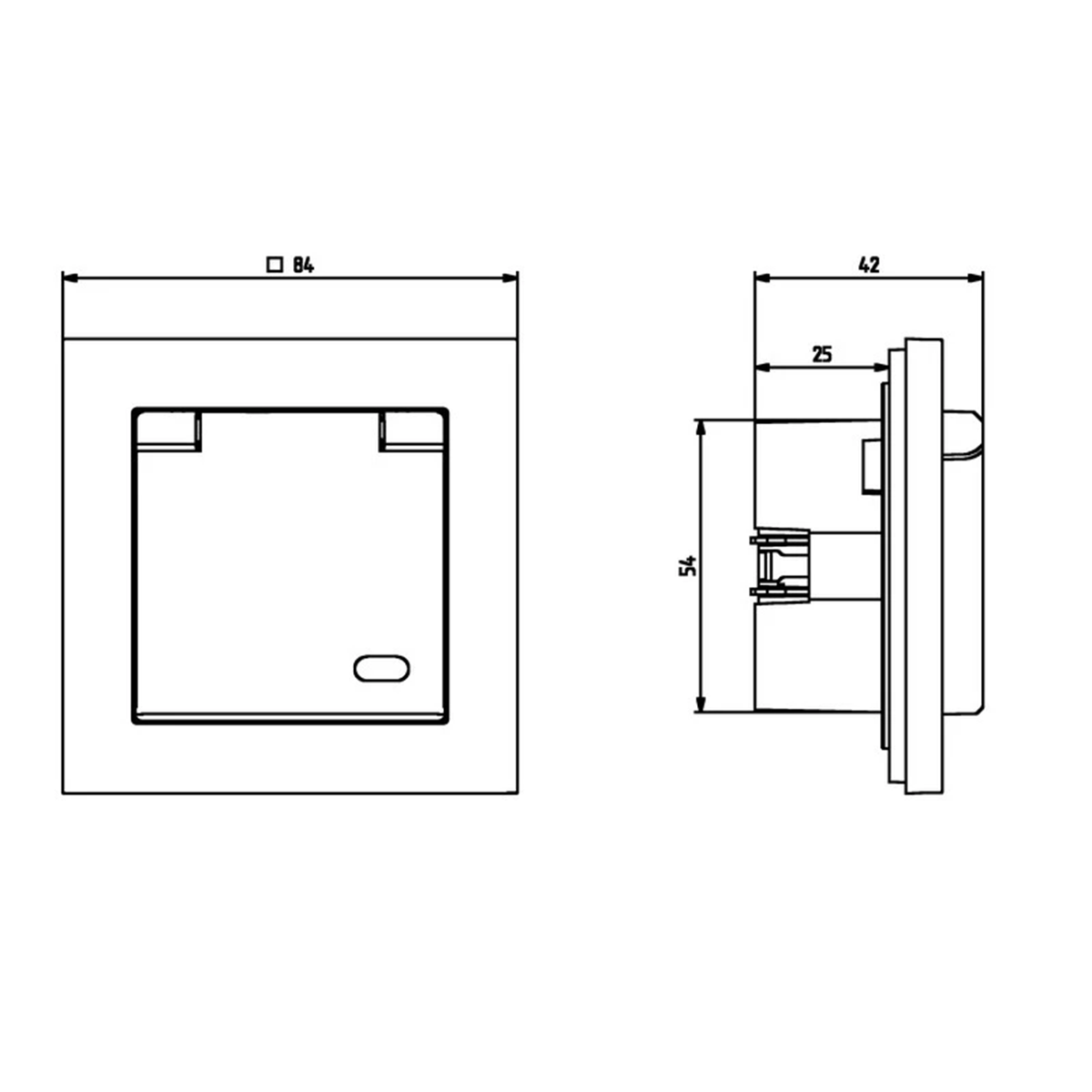

Depth [mm]42
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA
-
Width [mm]71
-
GroundHurt
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
Exact materialPlastic Metal
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorEcru
-
Mounting depth [mm]25
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
PKWIU27.33.13.0
Otros datos técnicos
-
ModelMulti-standard socket
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Imprint/indicationDegree of protection (IP)
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)1013
-
LockableYes
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP44
-
Device width71 mm
-
Device depth42 mm
-
Protective contactYes
-
Number of active contacts (round)1
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height71 mm
-
Min. depth of built-in installation box60 mm
Detalles del fabricante
-
FabricanteOSPEL S.A.
-
Dirección42-436 PILICA Wierbka, ul. Główna 128
-
Número de teléfono
-
Email
-
NIF6490010864
-
GLN5909002028034
Empaquetado a granel
| una especie de paquete | Pudełko |
| Cantidad | 10 uds. |
| Ancho (m) | 0,171 |
| Longitud (m) | 0,342 |
| Profundidad (m) | 0,088 |
