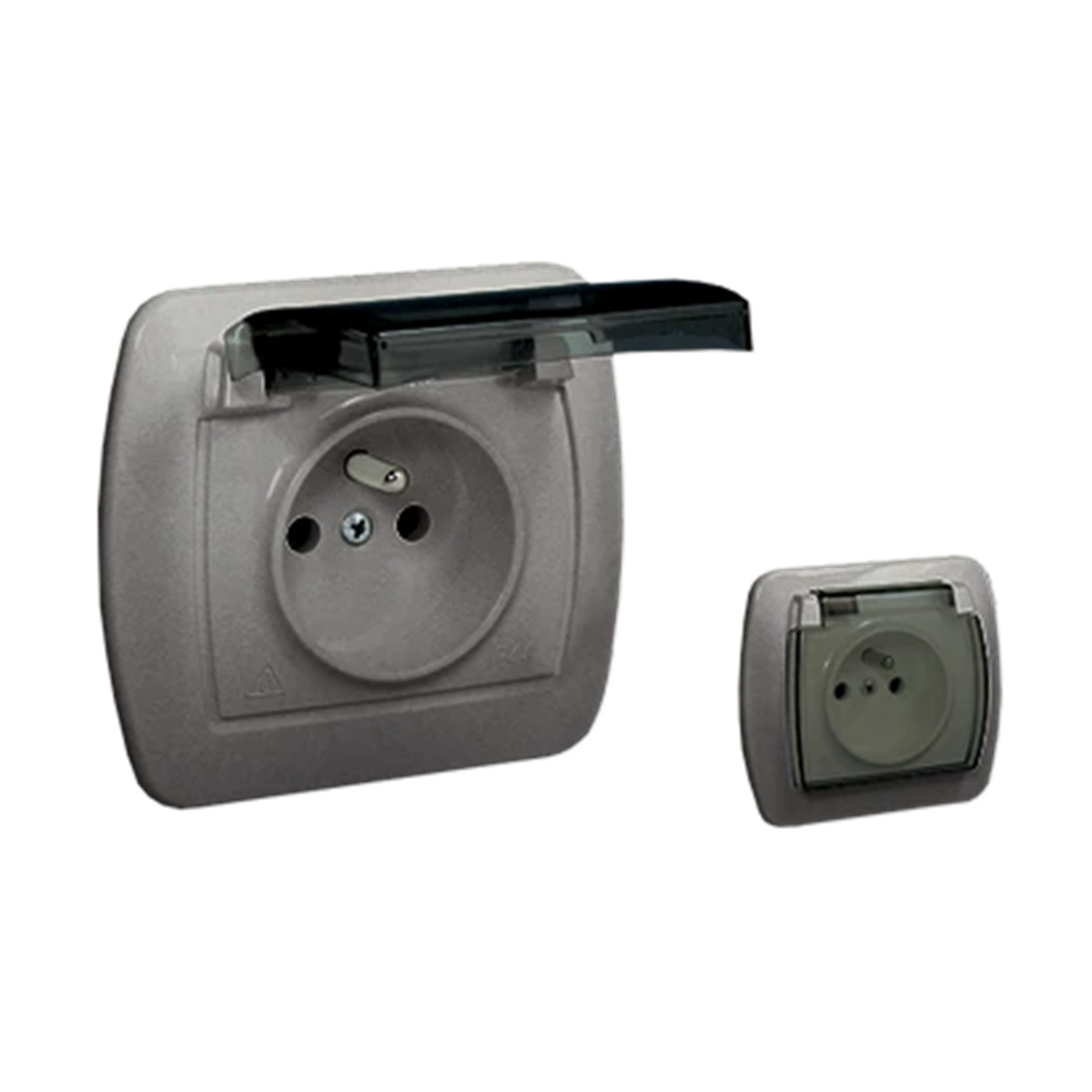

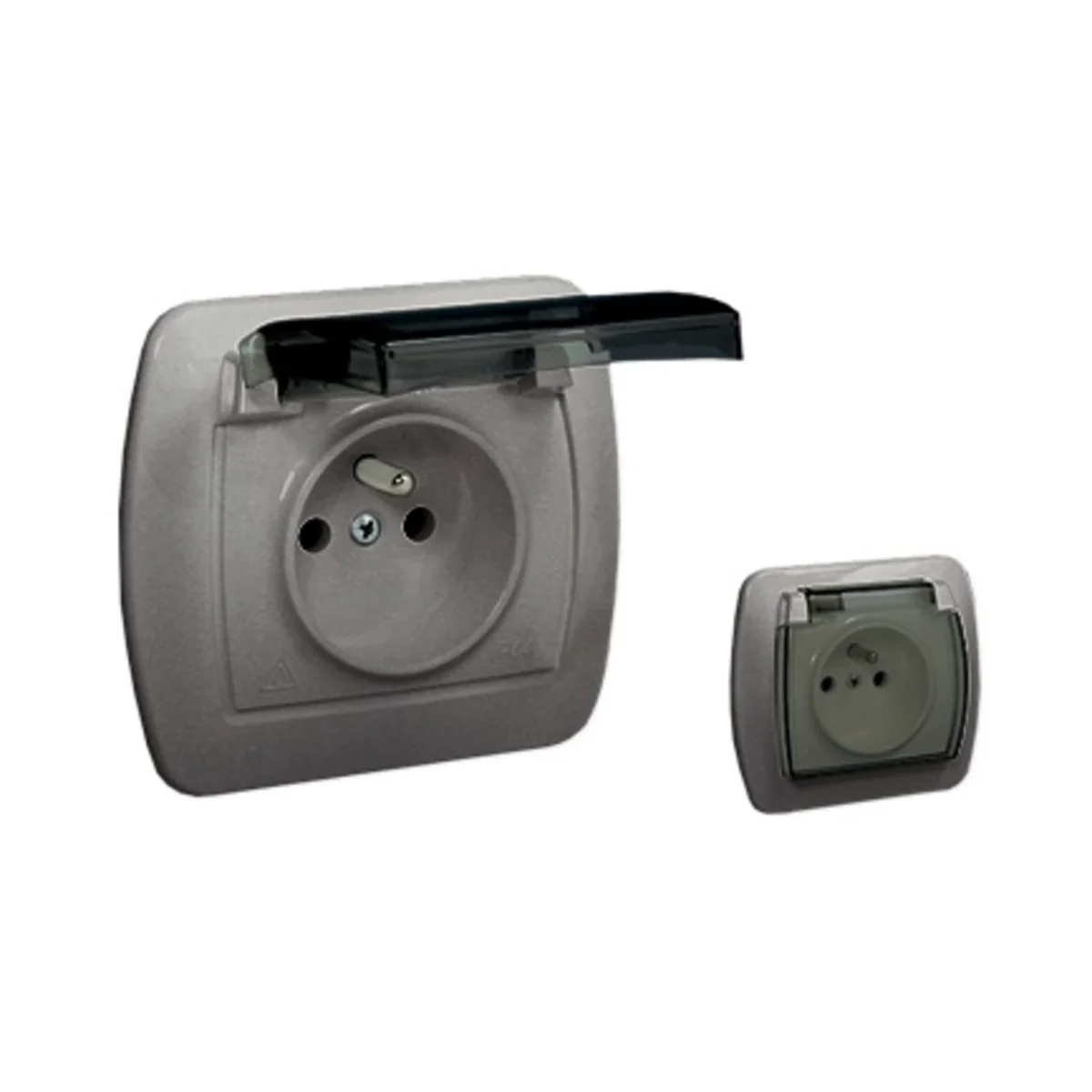

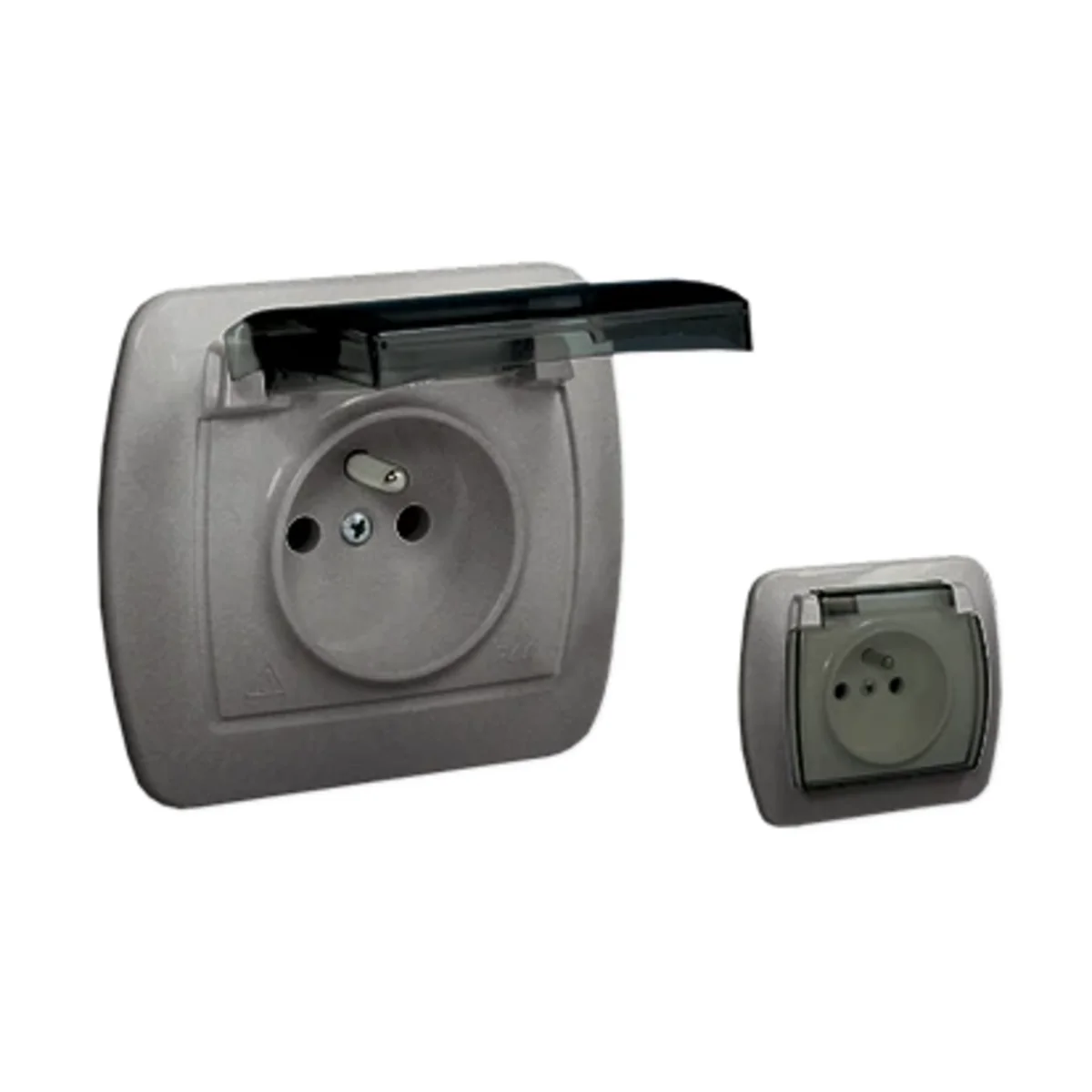

Socket with grounding, splash-proof IP44, 16A, 250V, screw terminals. Transparent flap, silver (metallic) AGZ1BE/26A

Índice local:
MEB007KONT
Número de catálogo:
AGZ1BE/26A
Código EAN:
5902787599430
Fabricante: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41.5
Number of sockets: 1
Precio:
32,78 zł
gross / uds.
(IVA incluido 23%)
hasta 2 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Plug socket single with grounding, IP44 version.



SERIES DESCRIPTION

Slightly longer line base and spine relative to the sides and clearly rounded corners of the frames distinguish this series from others. Simon AKORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Datos técnicos

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    82.5
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Exact material
    PC
  • Depth [mm]
    41.5
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    CHORD
  • Width [mm]
    92
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Accurate color
    Metallised aluminum
  • Mounting depth [mm]
    25
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • Number of units
    1
  • Connection type
    Screwed terminal
  • Colour
    Aluminium
  • Type of fastening
    Other
  • Surface finishing
    Matt
  • Frequency
    50 ... 60 Hz
  • Number of modules (module system)
    1
  • With hinged lid
    Yes
  • Mounting method
    Flush-mounted
  • Surface protection
    Lacquered
  • Nominal voltage
    250 V

Detalles del fabricante

Empaquetado a granel

una especie de paquete Paczka Karton
Cantidad 1 uds. 10 uds.
Peso (kg) 0,073 0,829
Ancho (m) 0,110 0,190
Longitud (m) 0,047 0,230
Profundidad (m) 0,160 0,100
