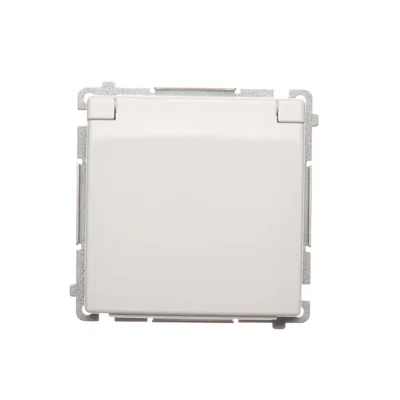

Socket with grounding (module) splash-proof IP44 16A 250V white BMGZ1B.01/11

local index:
MEB113KONT
Catalog No:
BMGZ1B.01/11
EAN code:
5902787571658
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 50
Number of sockets: 1
Price:
5,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 133 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

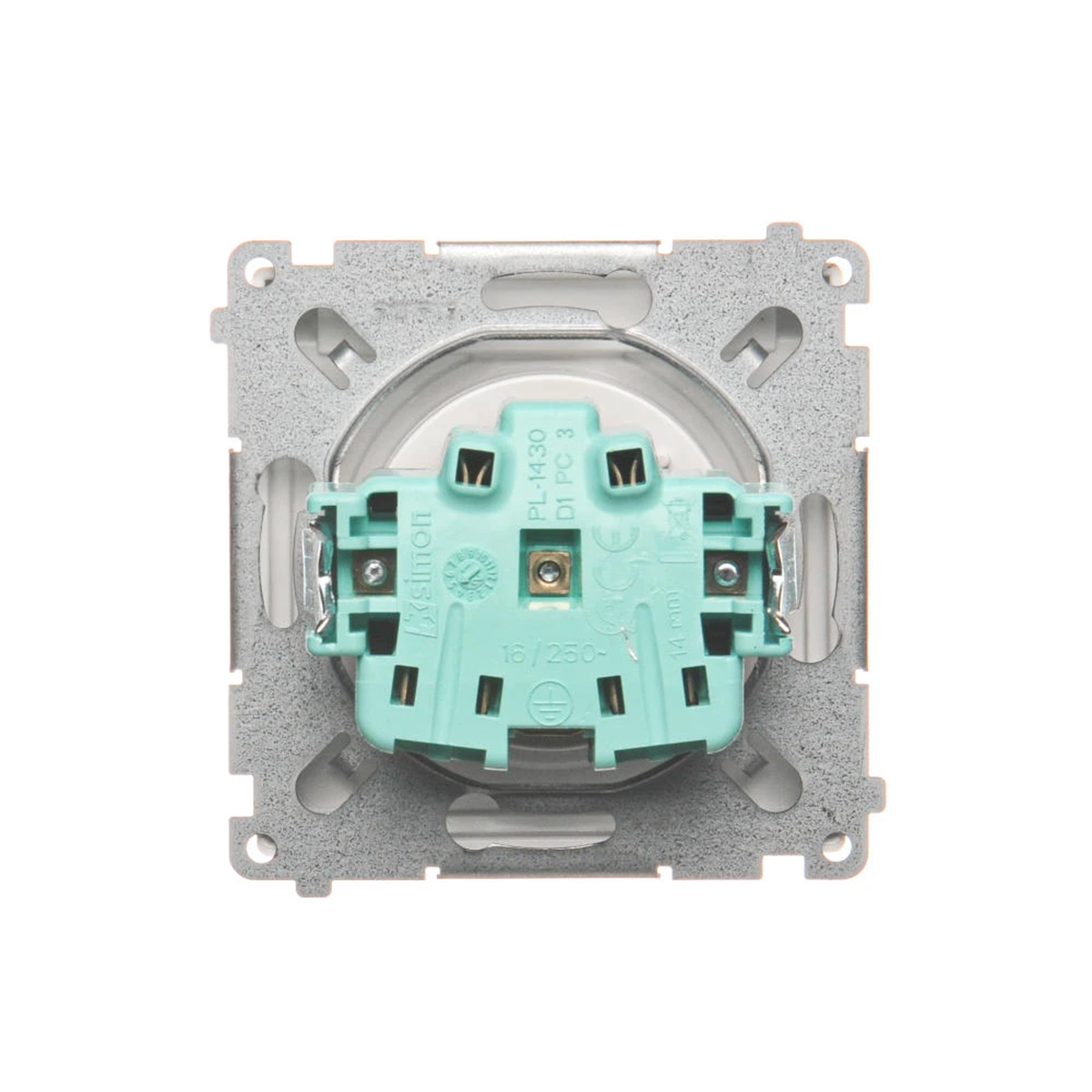

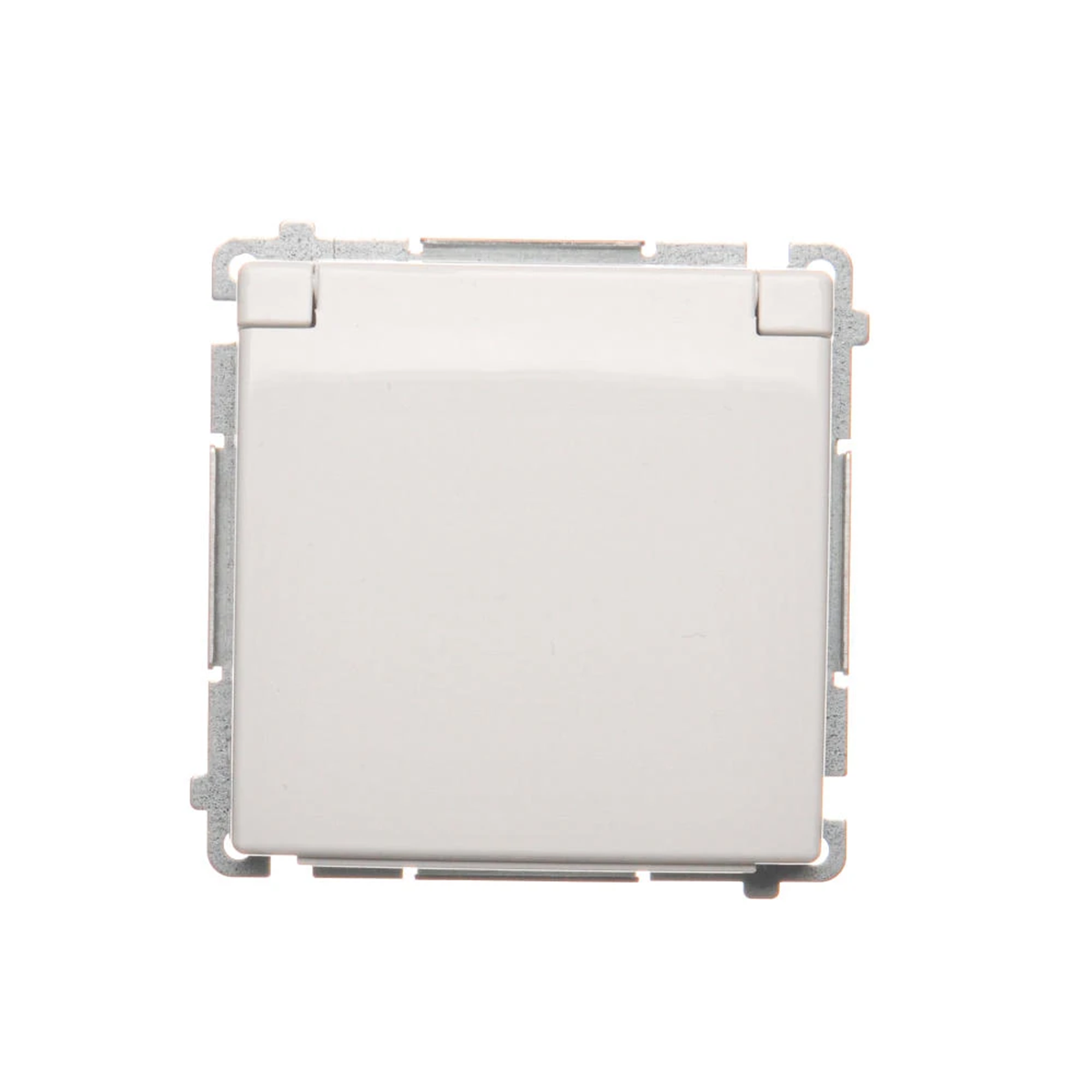

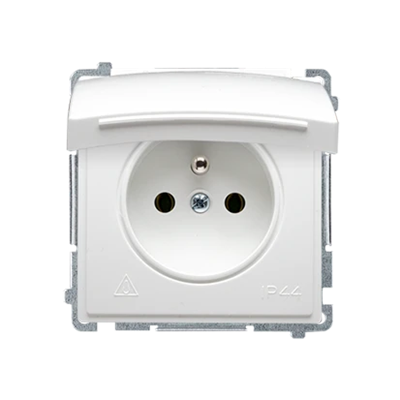

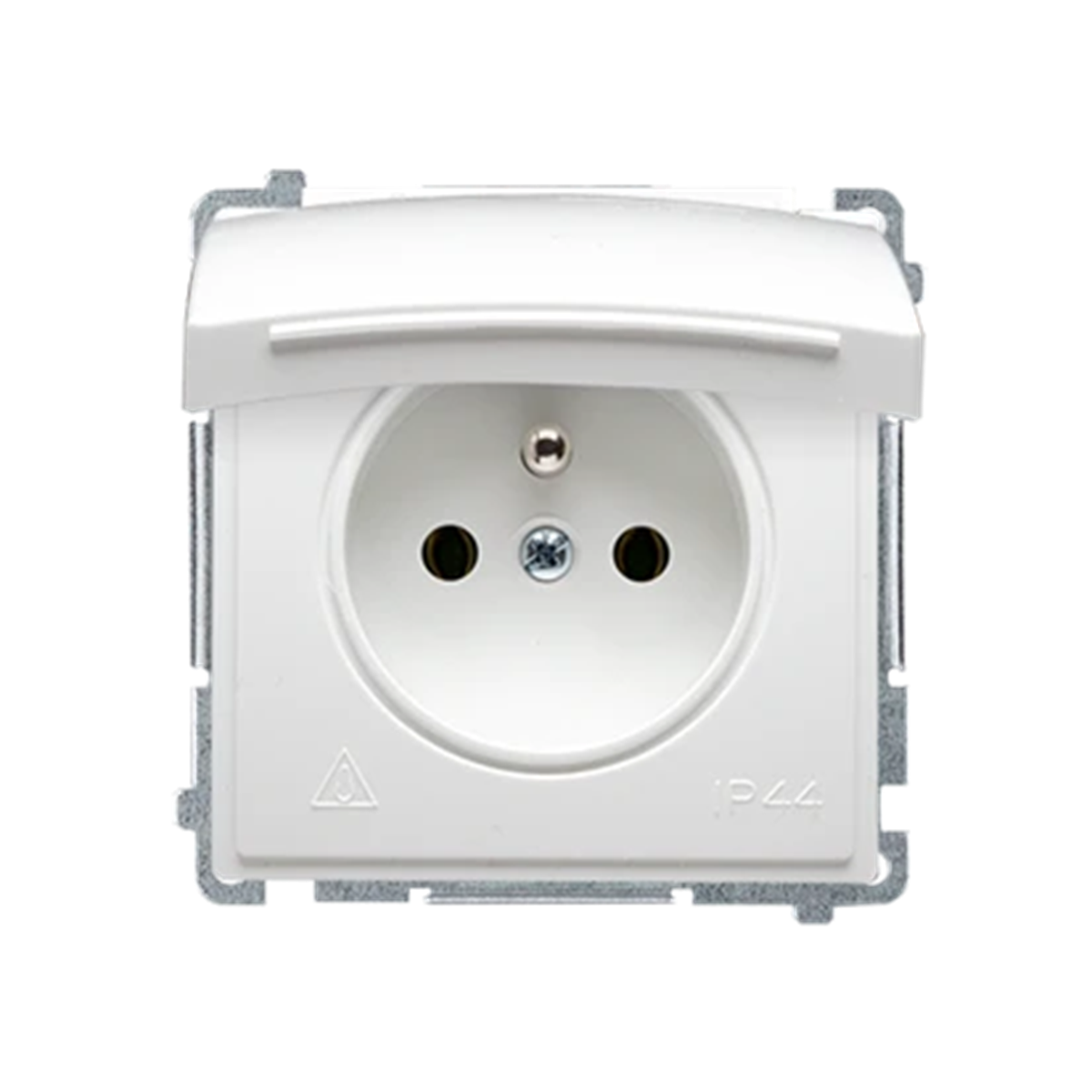

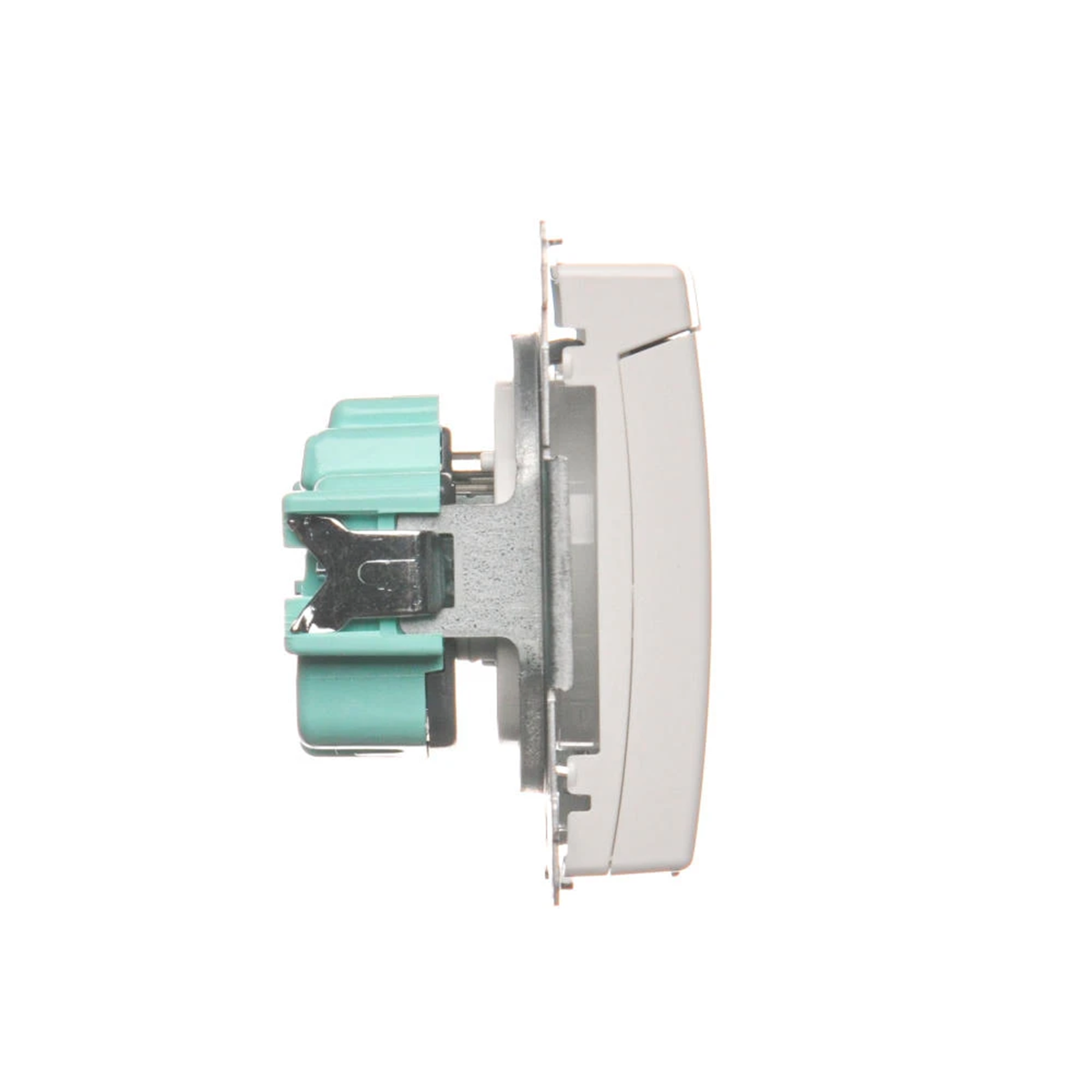

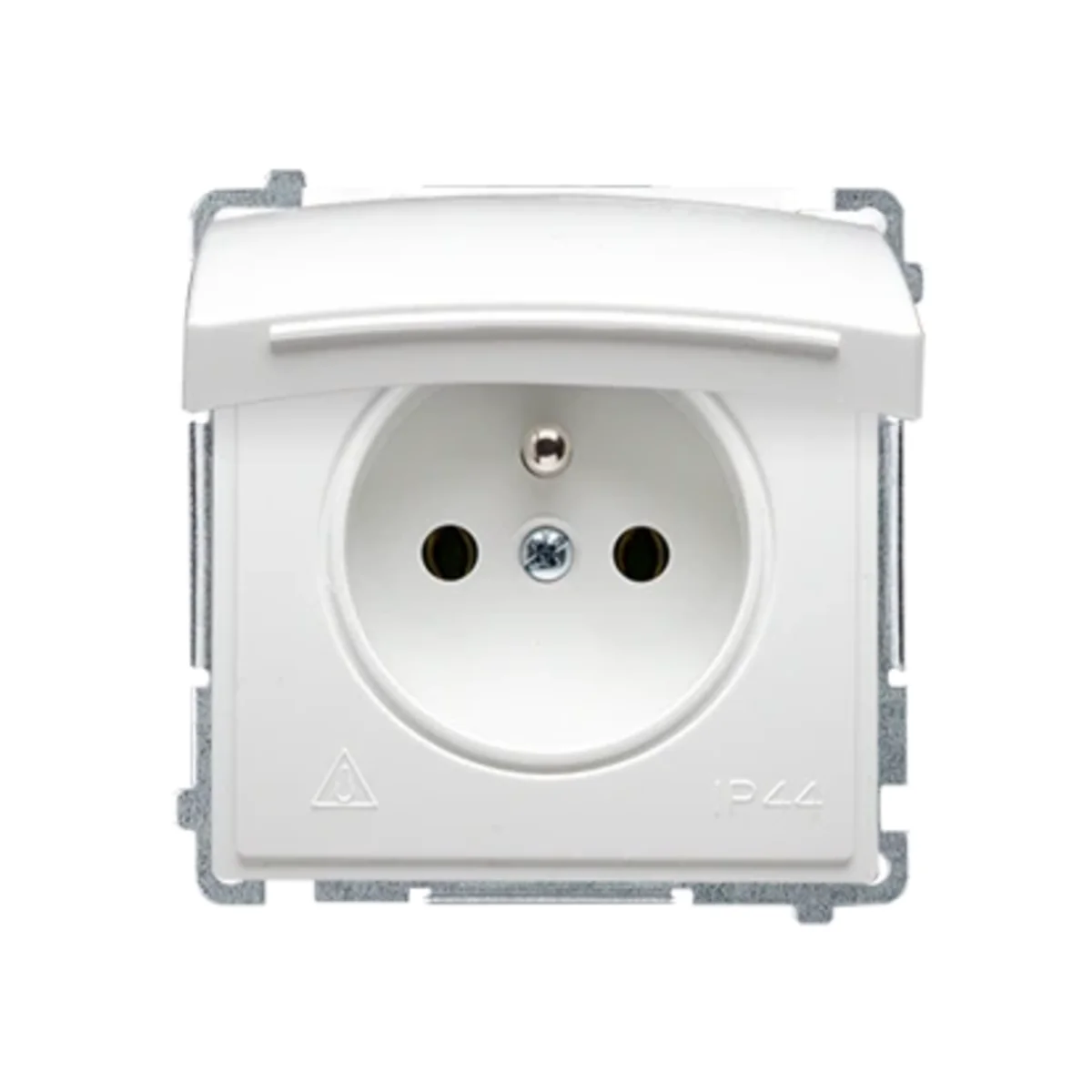

Electrical socket for the IP44 version from the Simon Basic series, from the manufacturer Contact Simon. The product catalog number is BMGZ1B.01/11.



FEATURES

  • Earthed< /strong>, ground pin.
  • Screw terminals.
  • Baseless module.
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V.
  • < li>Flush mounting.
  • Made of PC.
  • IP44 splash-proof using frames: 1. splash-proof with gaskets: BMR1B /.., BMR2B/.., BMR3B/.. or 2. BMR1/.., BMR2/.., BMR3/.., BMR4/.., BMR5/.., + additional frame gasket - respectively: NU1, NU2, NU3, NU4, NU5.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series , which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office. Electric socket for the IP44 version has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    28
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Seal
    NO
  • Depth [mm]
    50
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    PC
  • PKWIU
    27.33.13.0

Other technical data

  • Number of units
    1
  • Colour
    White
  • Material
    Plastic
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Connection type
    Screwed terminal
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Frequency
    50 ... 60 Hz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,083 0,083 0,919
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,055 0,230
Depth (m) 0,050 0,160 0,100
