Single socket-outlet with grounding IP44 with seal (module) 16A 230V white with transparent flap CGZ1B.01/11A

Name: Single socket-outlet with grounding IP44 with seal (module) 16A 230V white with transparent flap
Brand: KONTAKT-SIMON
SKU: MEB038KONT
Price: 4.16 PLN
Availability: InStock

local index:

MEB038KONT

Catalog No:

CGZ1B.01/11A

EAN code:

5902787842284

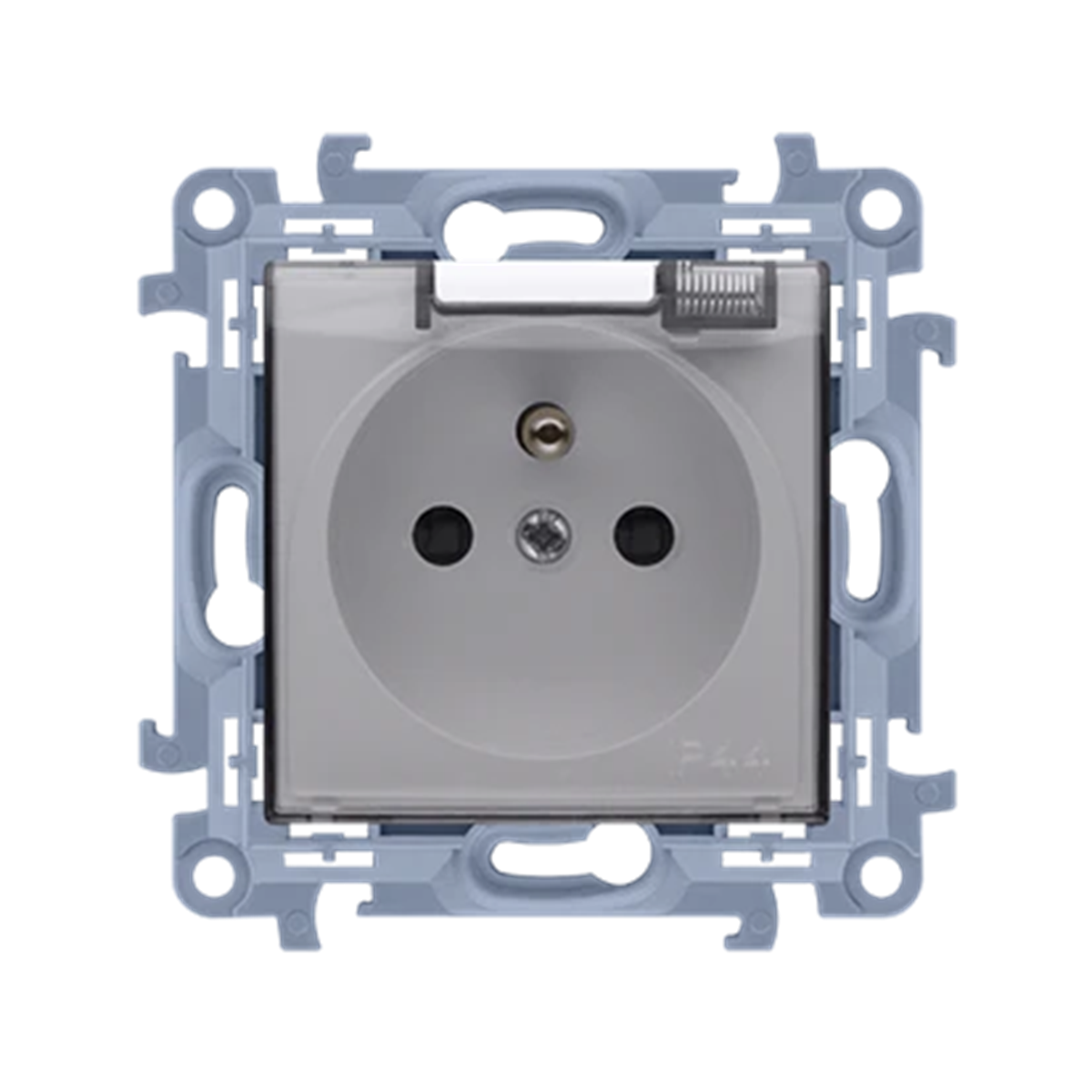

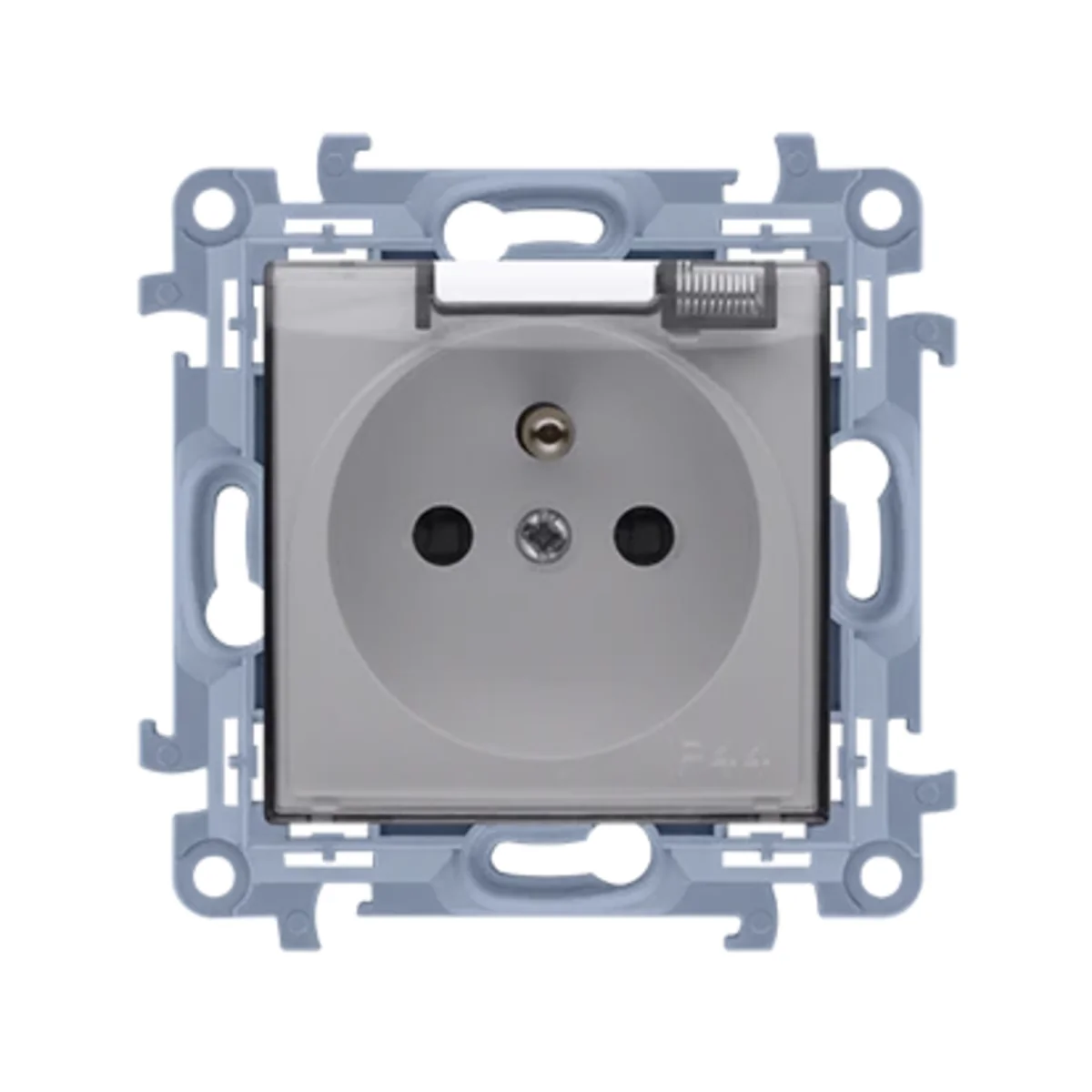

Single socket-outlet with grounding IP44 with seal (module) 16A 230V white with transparent flap

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 44

Number of sockets: 1

See full description

Price:

4,16 €

gross / pcs.

(including VAT 23%)

Accessible 33 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Plug-in socket single version for IP44 with shutters for current paths.

SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

Halogen free

Yes
Number of sockets

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP44
Type

Flush-mounted
Height [mm]

86
Surface finish

Shiny
Mounting depth [mm]

26.5
Standard

European
On the DATA key

NO
Lid color

Transparent
Seal

Yes

Depth [mm]

44
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 10
Width [mm]

86
Ground

Hurt
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

Yes
Exact material

PC
PKWIU

27.33.13.0

Other technical data

Number of units

1
Colour

White
Material

Plastic
Surface protection

Untreated
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP44

Connection type

Screwed terminal
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Frequency

50 ... 60 Hz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,066	0,066	0,763
Width (m)	0,086	0,110	0,190
Length (m)	0,086	0,049	0,230
Depth (m)	0,044	0,160	0,100
