Single electric socket with a white shutter 086027

local index:

MFE013LEGR

Catalog number:

086027

EAN code:

3245061860270

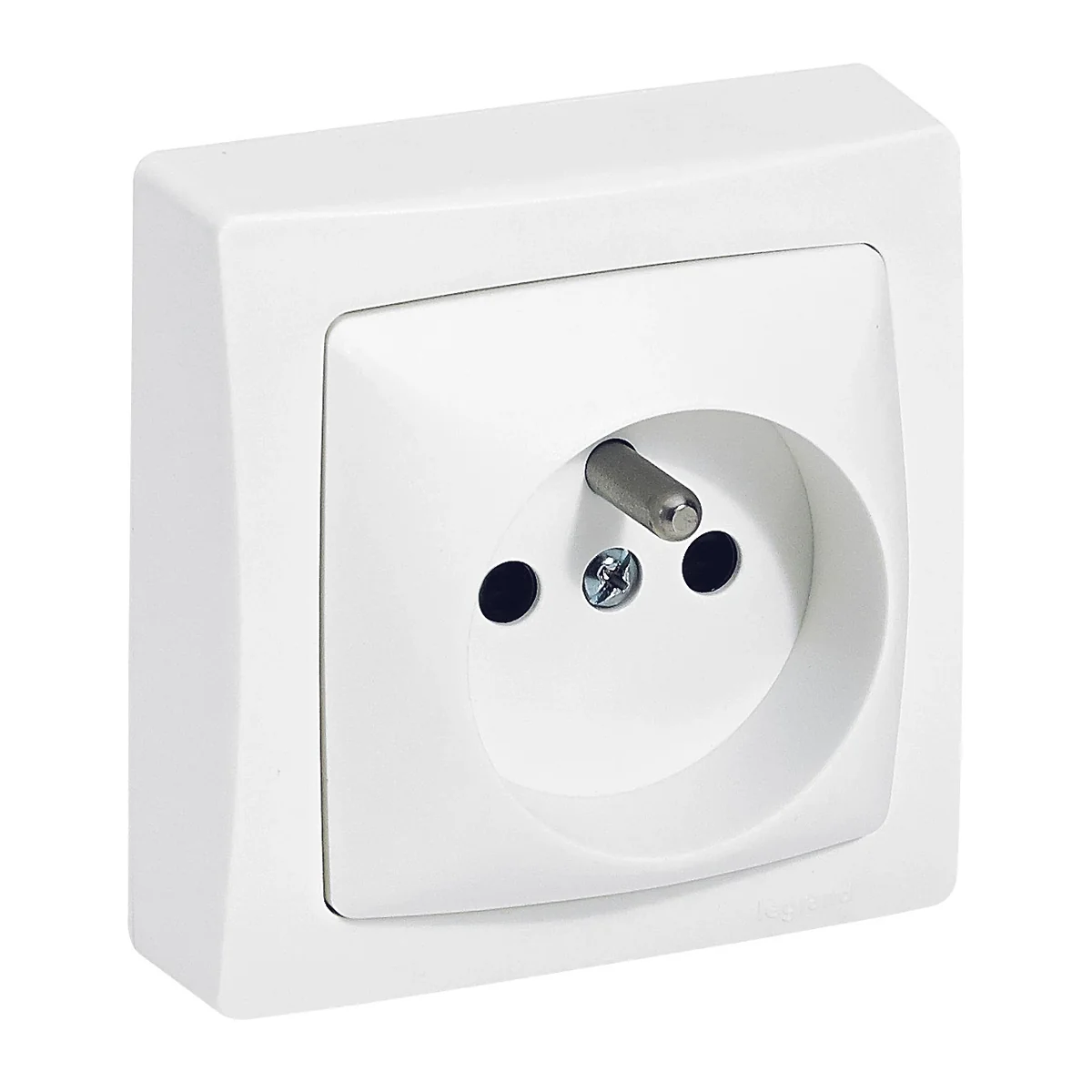

Single electric socket with a white shutter

Click on the photo to enlarge

Manufacturer: LEGRAND

Number of sockets: 1

Color: White

Shape: Square

See full description

zł

gross / pcs. (including VAT 23%)

Dostępne up to 2 weeks

On request

Choose your wholesaler

Choose

Quantity pcs. (multiplicity: 1 )

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Surface-mounted electrical socket from the Oteo series, from the manufacturer Legrand. The product part number is 086027.

FEATURES

2P+Z .
Single.
Earth; grounding pin.
With shutters for contacts.
Surface-mounted box included.
Color white< /strong>.

Rated current 16A.

Rated voltage 230V.

Protection level < strong>IP20.

SERIES DESCRIPTION

Oteo is a series of surface-mounted accessories, which allows for quick modernization of the installation. The surface-mounted electrical socket is characterized by the features of this unique series.

Technical data

Number of sockets

1
Shape

Square
Installation

Surface-mounted
Rated current [A]

16
Family

OTEO
Width [mm]

72
Ground

Hurt
Backlight

NO
Shutters of current paths

Yes
For the frame system

NO
PKWIU

27.33.13.0

Color

White
Material

Plastic
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Type

Surface-mounted
Height [mm]

72
Standard

European
On the DATA key

NO
Exact material

ABS PC

Other technical data

Model

Earthing pin
Protective contact

Round
Number of active contacts (flat)

0
Assembly arrangement

Basic element with full cover plate
Number of ports USB-A

0
Number of socket outlets

1
Number of modules (module system)

2
Number of phases

1
Connection type

Push-in clamp
With enhanced contact protection

Yes
Colour

White
Metallic colour

No
Lockable

No
Insulated mounting

No
With orientation lighting

No
Fault current protection

No
Special power supply

None
Type of fastening

Mounting with screw
Material quality

Thermoplastic
Surface protection

Untreated
Anti-bacterial treatment

No
With on/off switch

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Impact strength

IK04
Device height

72 mm
Min. depth of built-in installation box

0 mm
Compatible with Amazon Alexa

No
IFTTT support available

No
With built-in bluetooth speaker

No
Compliant with UK Building Regulations Part M

No

Concurrently switching neutral conductor

No
Number of active contacts (round)

2
Number of active contacts (square)

0
With signal lamp

No
Number of ports USB-C

0
Gniazda z izolacją fazową

No
Number of socket outlets switchable

0
Imprint/indication

None
With hinged lid

No
Label space/information surface

No
RAL-number (similar)

9003
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
With loop through function

Yes
Rotated central insert

No
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20
Device width

72 mm
Device depth

38 mm
Compatible with Apple HomeKit

No
Compatible with Google Assistant

No
With Wi-Fi signal repeater

No
For heavy conditions according to VDE

No

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Pudełko	Karton
Quantity	10 pcs.	100 pcs.	10 pcs.	100 pcs.
Weight (kg)	0,701	7,410	0,701	7,410
Volume (m3)	0,003	0,034	0,003	0,034
Width (m)	0,161	0,251	0,161	0,251
Length (m)	0,045	0,340	0,045	0,340
Depth (m)	0,388	0,398	0,388	0,398
