el12 Electrical equipment Sockets Hermetic electrical sockets
el12 Electrical equipment Sockets Flush-mounted sockets

Single electric socket with a lock, satin color 069553

Lokaler Index:
MEB022LEGR
Katalognummer:
069553
EAN-Code:
3245060695538

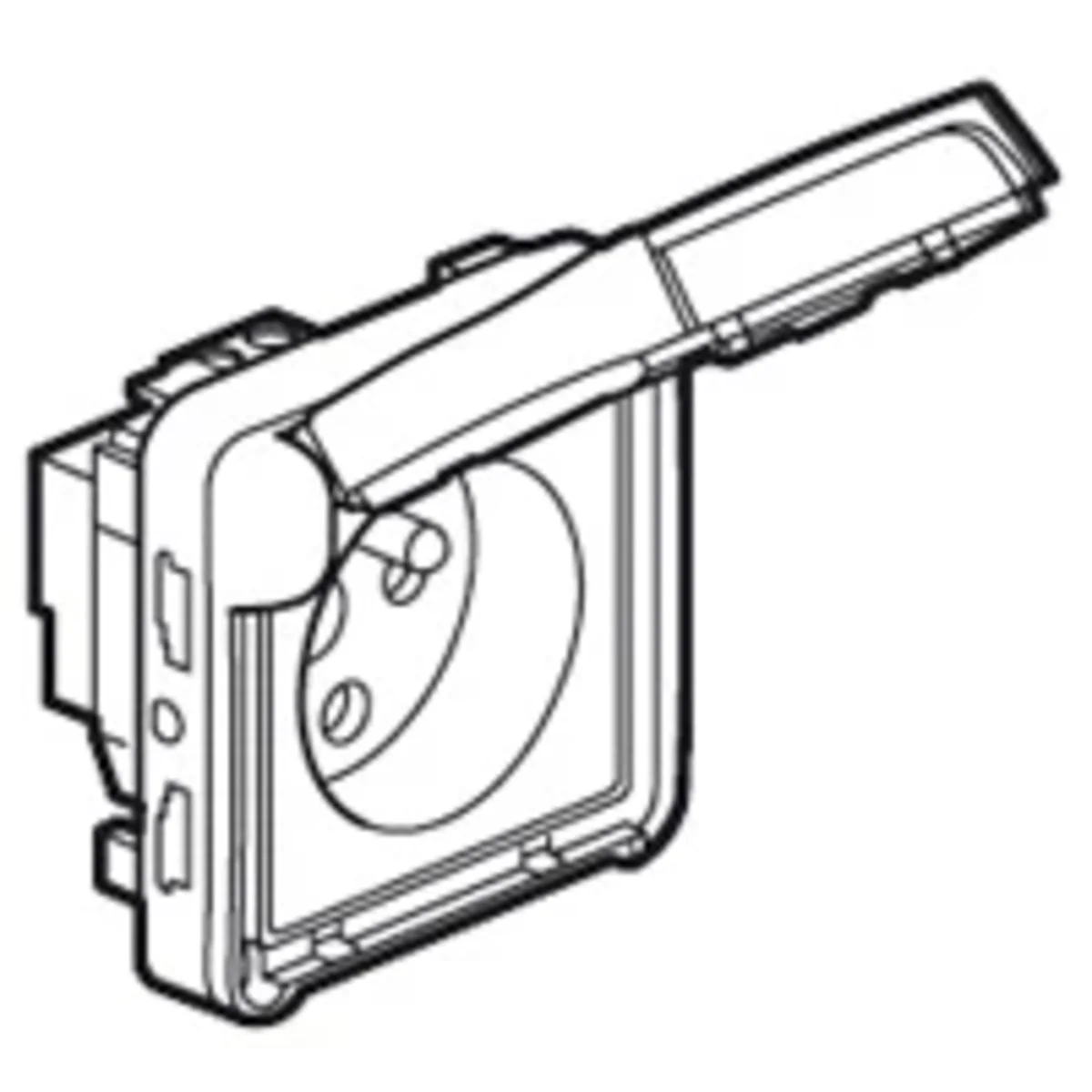

Single electric socket with a lock, satin color
Single electric socket with a lock, satin color
Single electric socket with a lock, satin color
Single electric socket with a lock, satin color

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: LEGRAND
Depth [mm]: 46
Number of sockets: 1
Color: Gray
Siehe vollständige Beschreibung
Preis:
86,43 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Electric socket from the PLEXO55 series, from the manufacturer Ospel. The product catalog number is 069553.



FEATURES

  • Mechanism complete with key/plate.
  • To be equipped with a plug-on box or flush-mounted handle.
  • With a lock.
  • 2P+Z coded.
  • Screw connection.



SERIES DESCRIPTION

Products from the PLEXO  series in the IP55 version are solutions for flush-mounted and surface-mounted installations.  ;Electric socketcharacterize the features of this unique series.

Technische Daten

  • Depth [mm]
    46
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    64
  • Backlight
    NO
  • On the DATA key
    Yes
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    16
  • Family
    PLEXO55
  • Width [mm]
    64
  • Ground
    Hurt
  • Degree of mechanical protection
    IK07
  • Standard
    European
  • For the frame system
    Yes
  • Exact material
    ABS PC PP

Weitere technische Daten

  • Model
    Earthing pin
  • Protective contact
    Round
  • Number of active contacts (flat)
    0
  • Assembly arrangement
    Basic element with central cover plate
  • Number of ports USB-A
    0
  • Number of socket outlets
    1
  • Number of modules (module system)
    2
  • Number of phases
    1
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Grey
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    None
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    64 mm
  • Device depth
    46 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    2
  • Number of active contacts (square)
    0
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Gniazda z izolacją fazową
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Degree of protection (IP)
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7016
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With loop through function
    Yes
  • Colour of switch operator
    Grey
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK07
  • Device height
    64 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No
  • For heavy conditions according to VDE
    No

Hersteller-Details

  • Hersteller
    Legrand Polska Sp. z o.o.
  • Adresse
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
  • E-Mail
    info@legrand.com.pl

Großpackungen

Eine Art Paket Pudełko Karton Paleta
Menge 5 stk. 100 stk. 1000 stk.
Gewicht (kg) 0,440 9,100 91,000
Volumen (m3) 0,001 0,031 0,516
Breite (m) 0,070 0,274 1,200
Länge (m) 0,052 0,301 0,430
Tiefe (m) 0,356 0,370 1,000
