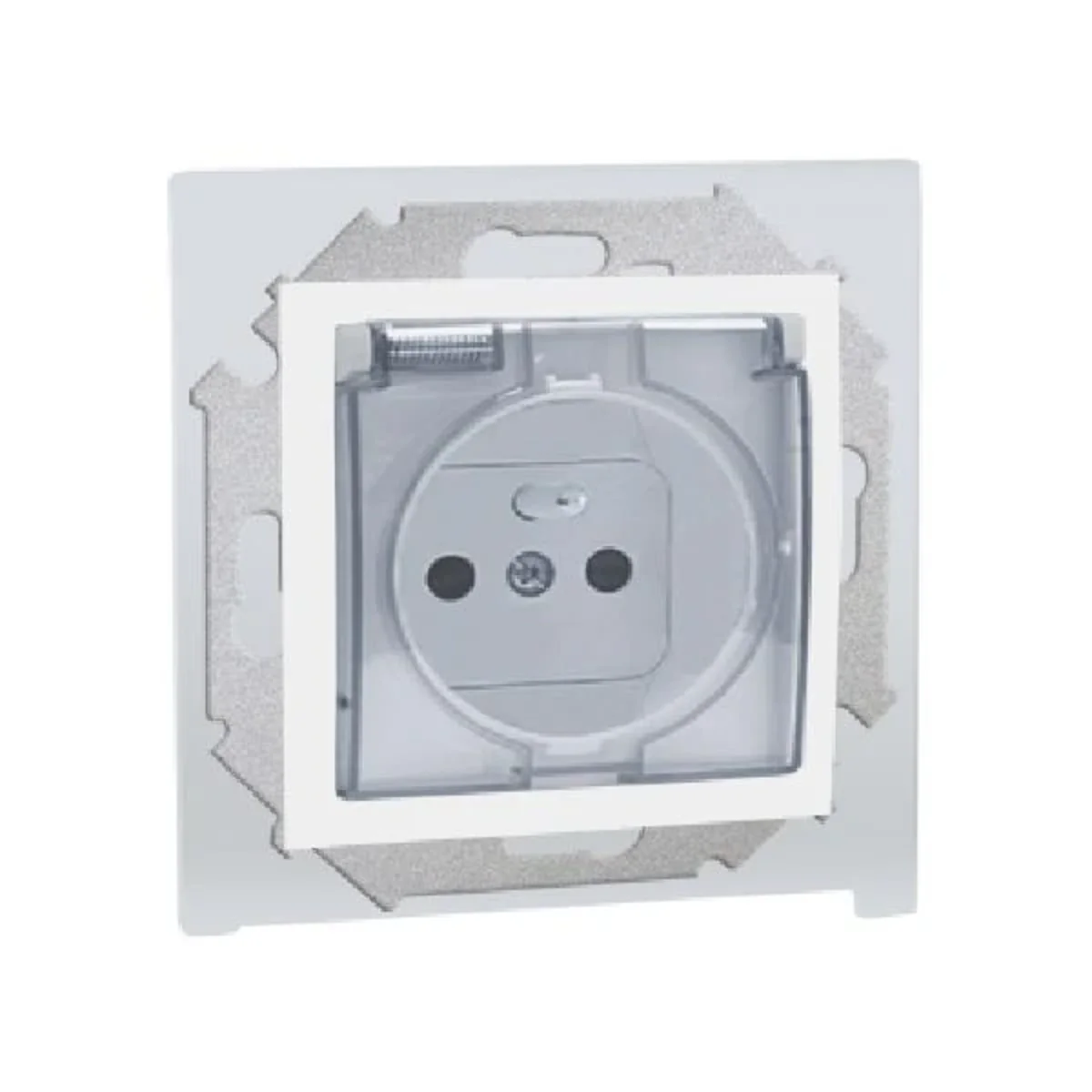

SIMON 15 Socket with grounding for IP44 version without seal with shutters (module) 16A 230V white 1591950B-030
Index local:
MEB068KONT
Numéro de catalogue:
1591950B-030
Code EAN:
5902787545338
Prix:
20,11 zł
gross / pcs.
(y compris la TVA 23%)
Ajouter à la demande de devis
Imprimer
Renseignez-vous sur le produit
Description du produit
Electric socket for the IP44 version from the Simon 15 series, from the manufacturer Contact Simon. The product part number is 1591950B-030.
FEATURES
- Earthed, ground pin.
- Without gasket.
- With shutters for current paths.
- Screw terminals.
- Module without frame.
- Color white.
- Rated current 16A.
- Rated voltage 230V.
- Mounting flush.< /li>
- To obtain IP44 splash-proof class, use a frame gasket.
SERIES DESCRIPTION
Series Simon 15 are elegant and practical solutions. Thanks to the mild colors, the series gives the possibility of subtly adapting the accessories to the needs of a functional apartment or office. The clean design form guarantees a composition with many interiors. Electrical socket for the IP44 version has all the features of this unique series.
Données techniques
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeFlush-mounted
-
Height [mm]74
-
Surface finishShiny
-
Mounting depth [mm]24
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
SealNO
-
Depth [mm]44
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 15
-
Width [mm]74
-
GroundHurt
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialPC ABS
-
PKWIU27.33.13.0
Autres données techniques
-
Number of units1
-
ColourWhite
-
MaterialPlastic
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP44
-
Connection typeScrewed terminal
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Frequency50 ... 60 Hz
Détails du fabricant
-
ProducteurKONTAKT - SIMON S.A.
-
Adresse43-500 Czechowice-Dziedzice Bestwińska 21
-
Numéro identifiant TVA6520005366
