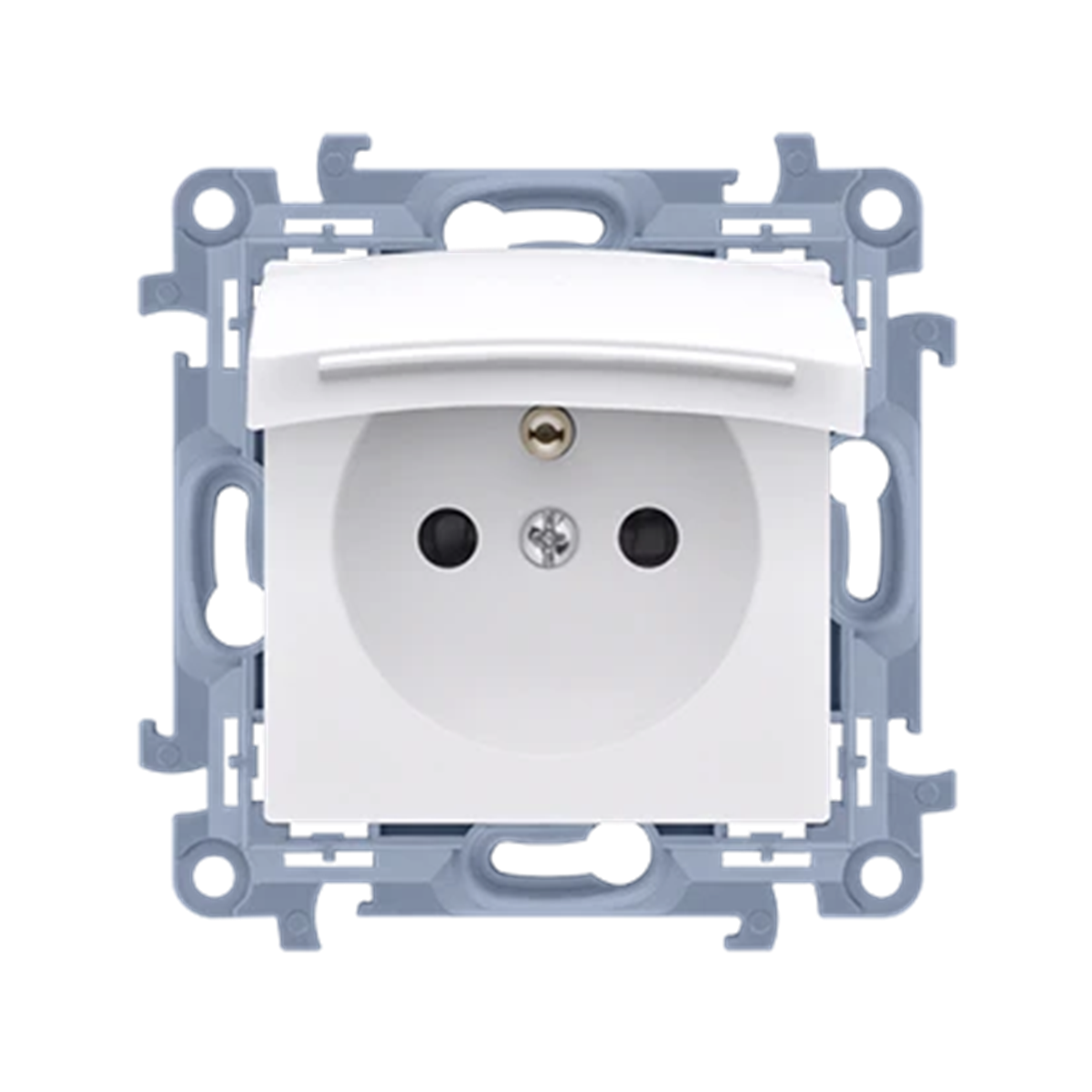

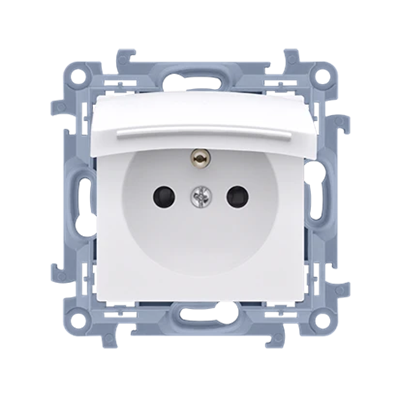

SIMON 10 Single socket-outlet with grounding IP44 with a seal and shutters for current paths (module) 16A 230V white with a flap CGZ1BZ.01/11
local index:
MEB096KONT
Catalog No:
CGZ1BZ.01/11
EAN code:
5902787842321
Price:
4,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electrical socket for the IP44 version from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CGZ1BZ.01/11.
FEATURES
- Earthed< /strong>, ground pin.
- With IP44 gasket.
- With shutters for current paths.
- Screw terminals.
- Borderless module.
- Color white.
- Socket colored flap.
- Rated current 16A.
- Rated voltage 230V.
- flush mounting.
- Made of PC.
SERIES DESCRIPTION
Simon 10 is an economical modular series for investments where different colors are not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work. Electric socket has all the features of this unique series.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeFlush-mounted
-
Height [mm]86
-
Surface finishShiny
-
Mounting depth [mm]26.5
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
SealYes
-
Depth [mm]44
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 10
-
Width [mm]86
-
GroundHurt
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialPC
-
PKWIU27.33.13.0
Other technical data
-
Number of units1
-
ColourWhite
-
MaterialPlastic
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP44
-
Connection typeScrewed terminal
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Frequency50 ... 60 Hz
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,067 | 0,067 | 0,763 |
| Width (m) | 0,086 | 0,110 | 0,190 |
| Length (m) | 0,086 | 0,049 | 0,230 |
| Depth (m) | 0,044 | 0,160 | 0,100 |
