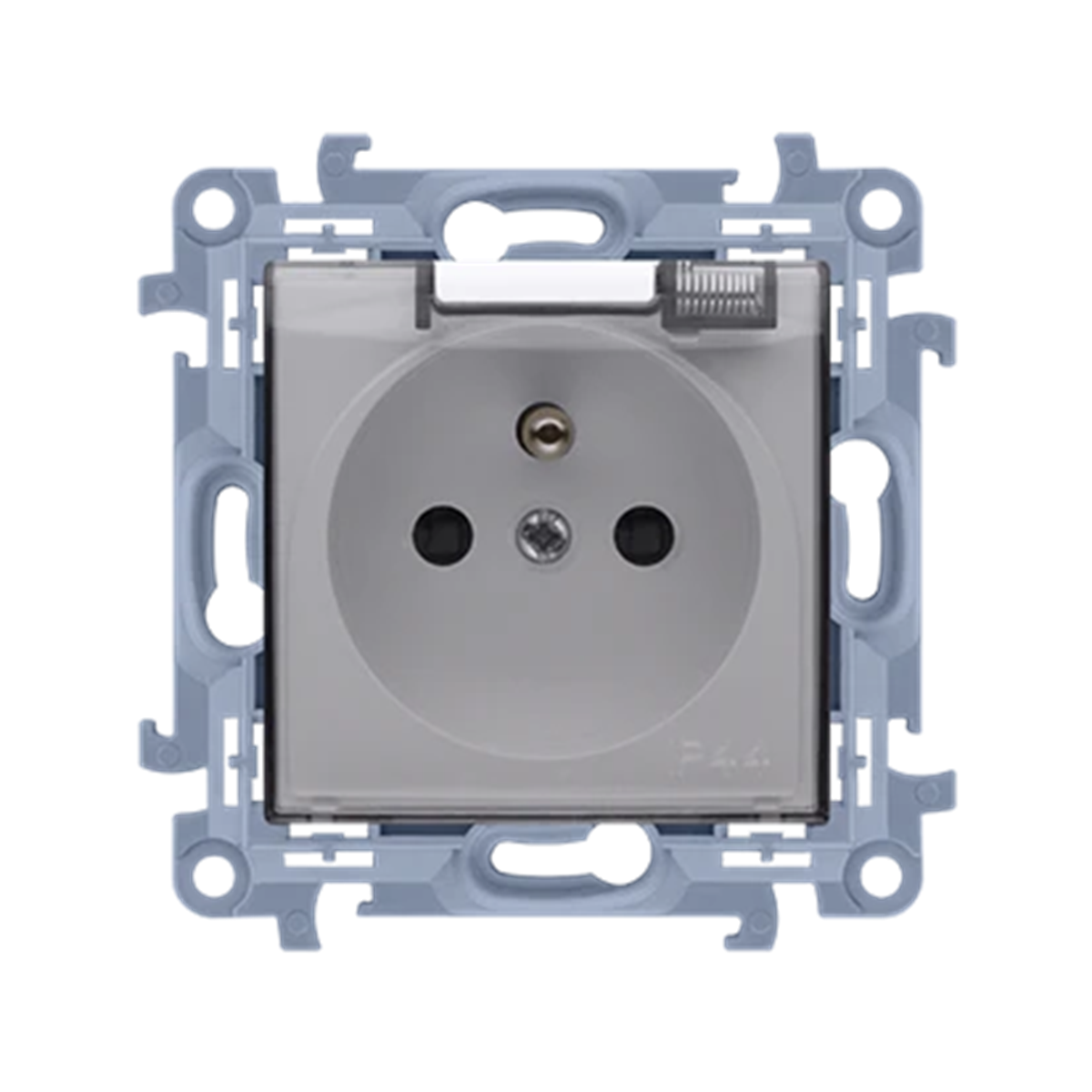

SIMON 10 Single socket outlet for IP44 version - with seal - transparent cover, white, 16A CGZ1BU.01/11A

local index:
MEB093KONT
Catalog No:
CGZ1BU.01/11A
EAN code:
5902787842406
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 44
Number of sockets: 1
Price:
3,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical socket for the IP44 version from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CGZ1BU.01/11A.



FEATURES

  • Earthed< /strong>, ground pin.
  • Without gasket.
  • With shutters for current paths.
  • < li>Screw terminals.
  • Borderless module.
  • Color white.
  • Transparent lid.
  • Rated current 16A.
  • Rated voltage 230V.
  • < li>flush mounting.
  • Made of PC.



SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work. Electric socket has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    86
  • Surface finish
    Shiny
  • Mounting depth [mm]
    26.5
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • Seal
    NO
  • Depth [mm]
    44
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 10
  • Width [mm]
    86
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Exact material
    PC
  • PKWIU
    27.33.13.0

Other technical data

  • Number of units
    1
  • Colour
    White
  • Material
    Plastic
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Connection type
    Screwed terminal
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Frequency
    50 ... 60 Hz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,062 0,062 0,763
Width (m) 0,086 0,110 0,190
Length (m) 0,086 0,049 0,230
Depth (m) 0,044 0,160 0,100
