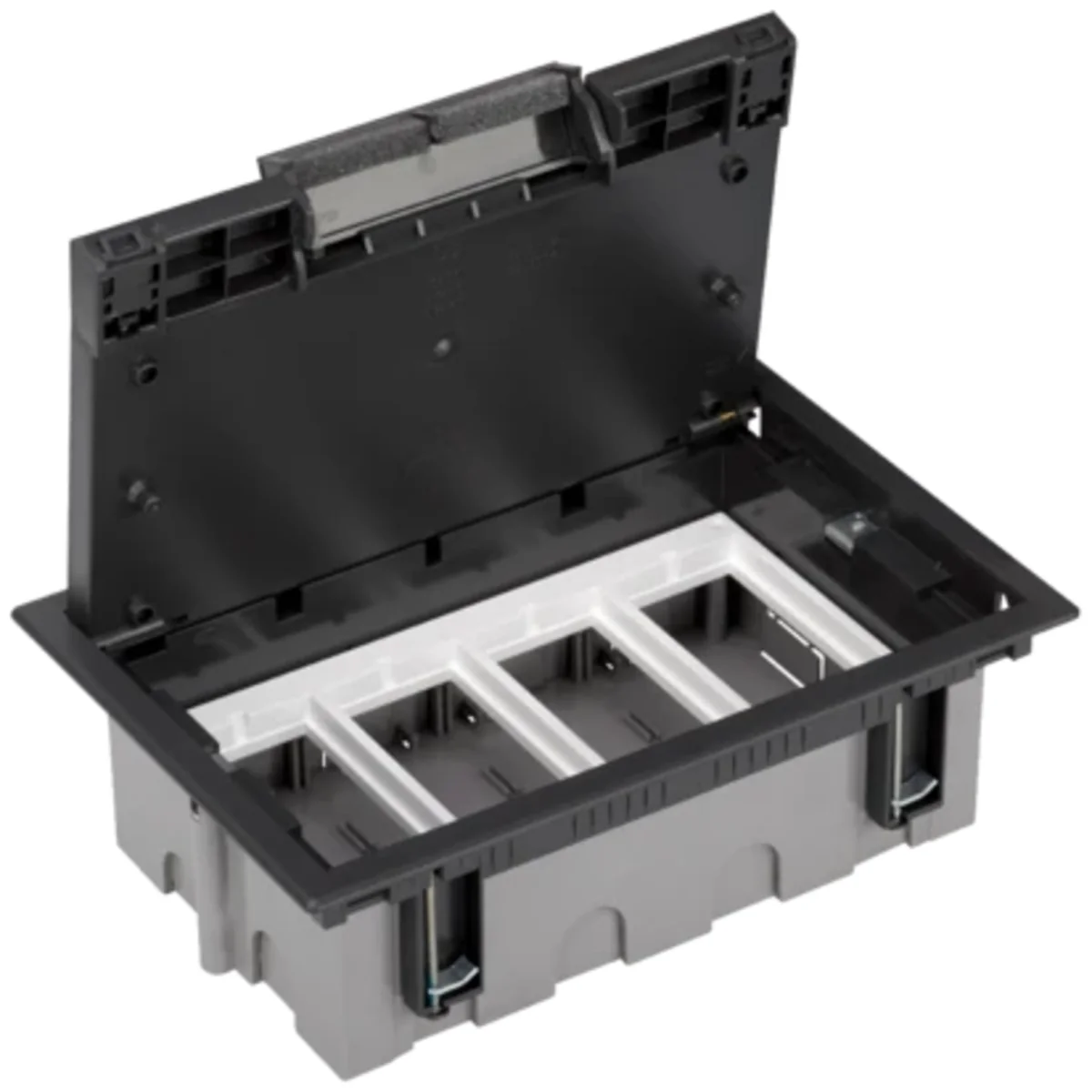

SF Floor box S500 4-module 8xK45 93mm graphite gray 52050104-038

local index:
MVD020KONT
Catalog No:
52050104-038
EAN code:
8421053093009
Manufacturer: KONTAKT-SIMON
Color: Graphite
Shape: Rectangular
Number of K45 modules: 8
Price:
61,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Underfloor installations are the standard for electrical and teletechnical installations in modern workplaces. The use of the SF series floor box enables simple and quick access to media in places away from the walls. The box is made of graphite gray plastic. It is worth noting that it has a IP40 degree of protection. The box installation method is as follows - in a raised floor or in a screed floor. The ability to adjust the depth in the range 93-128mm. The box has four SIMON 500 and eight K45 modules.

Technical data

  • Color
    Graphite
  • Number of K45 modules
    8
  • Family
    SF
  • Dimensions [mm]
    170 x 265
  • PKWIU
    27.12.40.0
  • Shape
    Rectangular
  • Material
    Plastic
  • Level of security
    IP40
  • Accurate color
    Gray graphite

Other technical data

  • Number of device cups
    8
  • Width built-in dimension
    170 mm
  • Length built-in dimension
    170 mm
  • Built-in diameter
    170 mm

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 1,610 - 1,610
Width (m) - 0,186 -
Length (m) - 0,282 -
Depth (m) - 0,095 -
