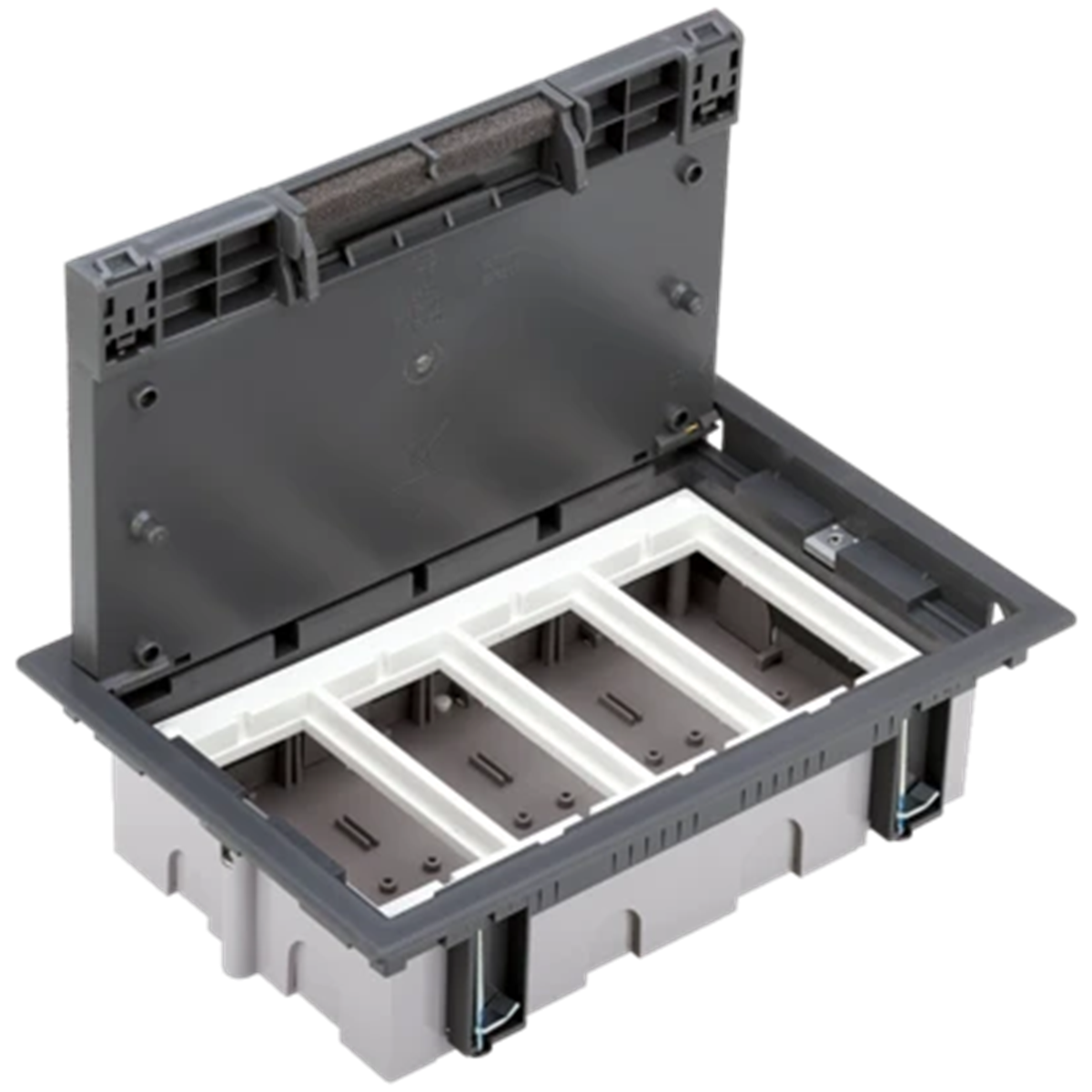

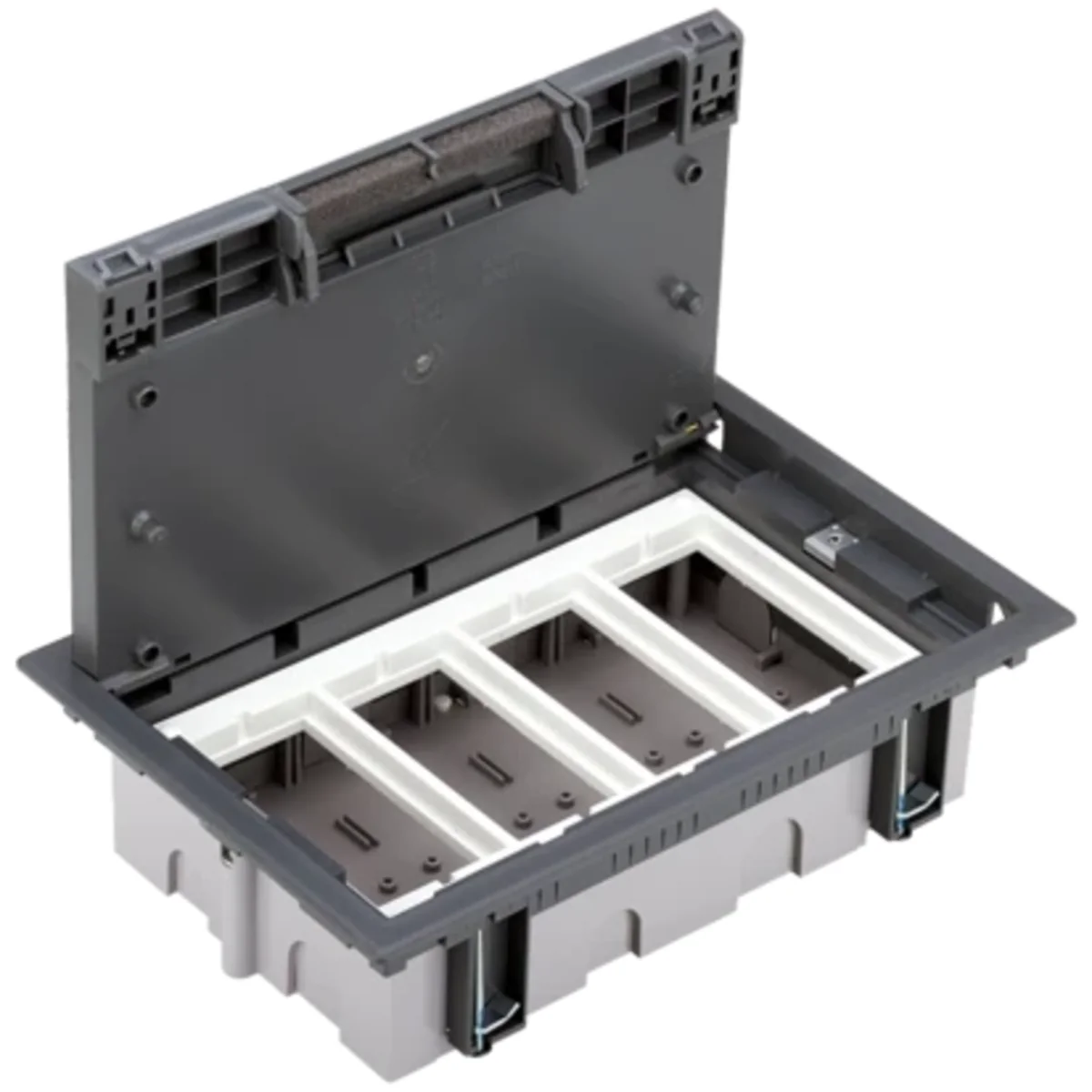

SF Floor box S500 4-module 8xK45 70mm gray 52050004-035

Index local:
MVD009KONT
Numéro de catalogue:
52050004-035
Code EAN:
8421053092798
Producteur: KONTAKT-SIMON
Color: Gray
Shape: Rectangular
Number of K45 modules: 8
Prix:
64,91 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Underfloor installations are the standard for electrical and teletechnical installations in modern workplaces. The use of the SF series floor box enables simple and quick access to media in places away from the walls. The box is made of gray plastic. It is worth noting that it has a IP40 degree of protection. The box installation method is as follows - in a raised floor or in a screed floor. The ability to adjust the depth in the range 70-105mm. The box has four SIMON 500 and eight K45 modules.

Données techniques

  • Color
    Gray
  • Number of K45 modules
    8
  • Family
    SF
  • Dimensions [mm]
    170 x 265
  • Shape
    Rectangular
  • Material
    Plastic
  • Level of security
    IP40
  • PKWIU
    27.12.40.0

Autres données techniques

  • Number of device cups
    8
  • Length built-in dimension
    170 mm
  • Built-in diameter
    170 mm
  • Colour
    Grey
  • Width built-in dimension
    170 mm

Détails du fabricant

Emballage en vrac

Une sorte de paquet Paczka Karton
Quantité 1 pcs. 1 pcs. 1 pcs.
poids (kg) 1,560 1,560 -
Largeur (m) - - 0,186
Longueur (m) - - 0,282
Profondeur (m) - - 0,095
