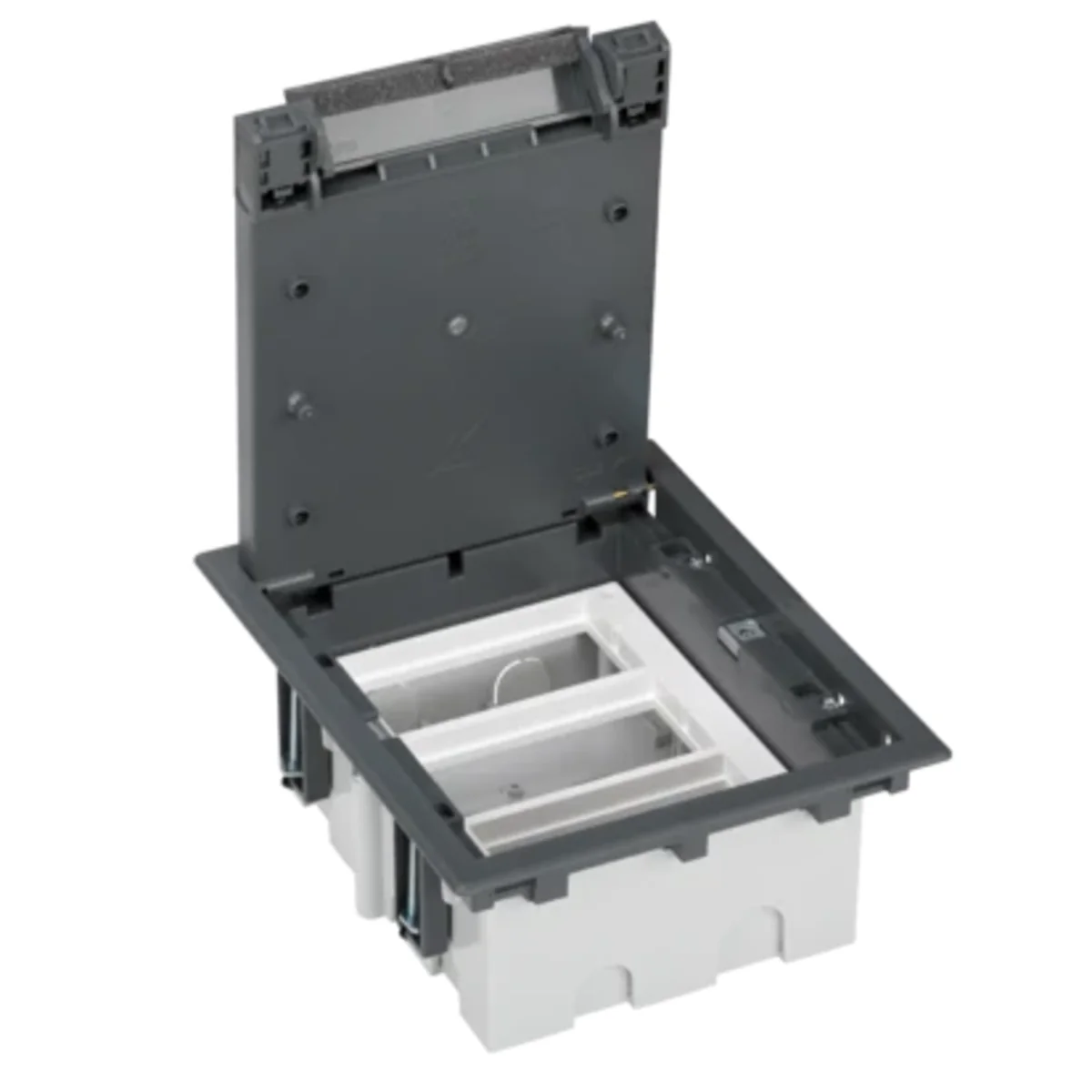

SF Floor box S500 3-module 6xK45 93mm gray 52050103-035

local index:
MVD017KONT
Catalog No:
52050103-035
EAN code:
8421053092989
Manufacturer: KONTAKT-SIMON
Color: Gray
Shape: Rectangular
Number of K45 modules: 6
Price:
58,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Underfloor installations are the standard for electrical and teletechnical installations in modern workplaces. The use of the SF series floor box enables simple and quick access to media in places away from the walls. The box is made of gray plastic. It is worth noting that it has a IP40 degree of protection. The box installation method is as follows - in a raised floor or in a screed floor. The ability to adjust the depth in the range 93-128mm. The box has three SIMON 500 and six K45 modules.

Technical data

  • Color
    Gray
  • Number of K45 modules
    6
  • Family
    SF
  • Dimensions [mm]
    170 x 210
  • Shape
    Rectangular
  • Material
    Plastic
  • Level of security
    IP40
  • PKWIU
    27.12.40.0

Other technical data

  • Number of device cups
    6
  • Length built-in dimension
    170 mm
  • Built-in diameter
    170 mm
  • Colour
    Grey
  • Width built-in dimension
    170 mm

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 1,337 1,337 1,405
Width (m) - - 0,186
Length (m) - - 0,226
Depth (m) - - 0,095
