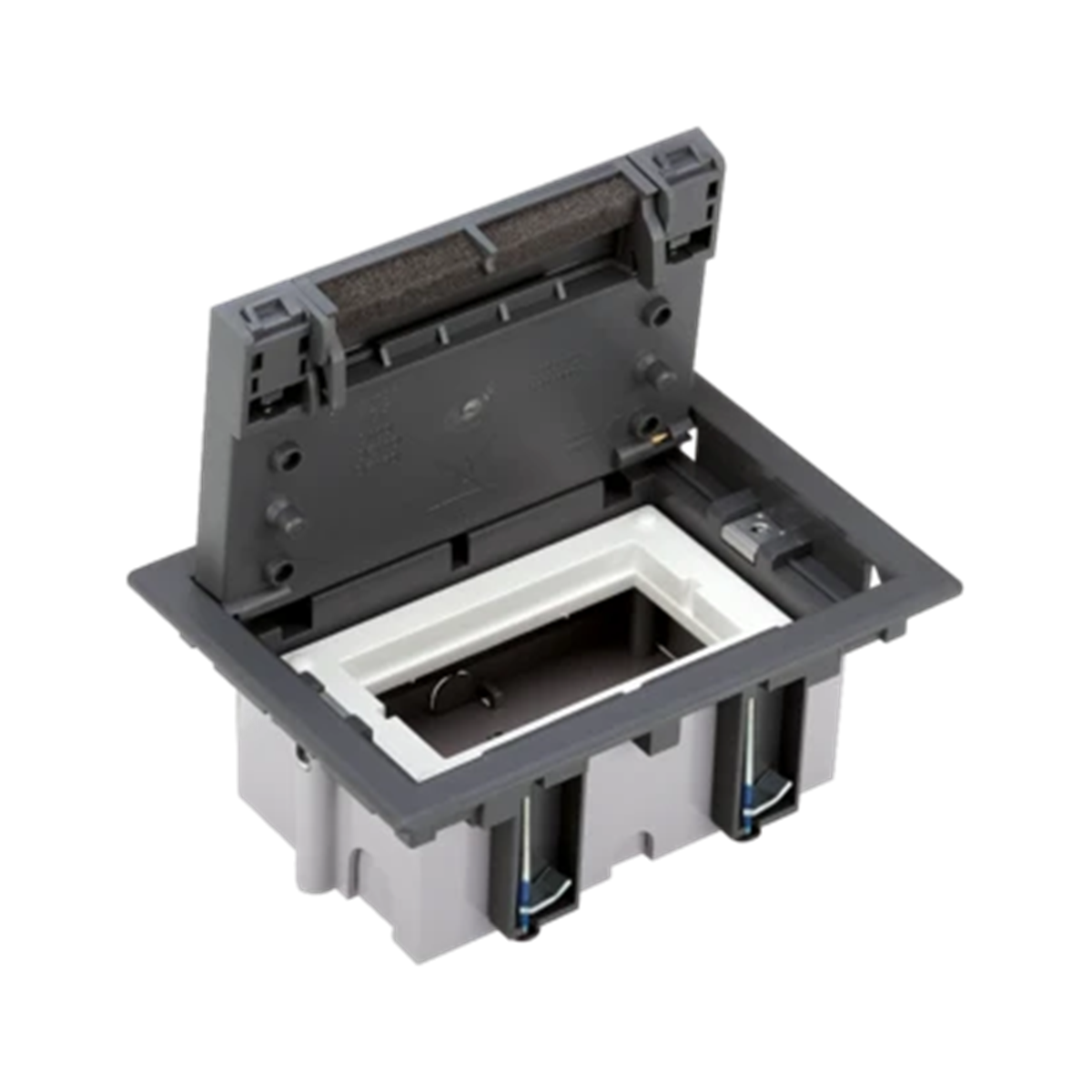

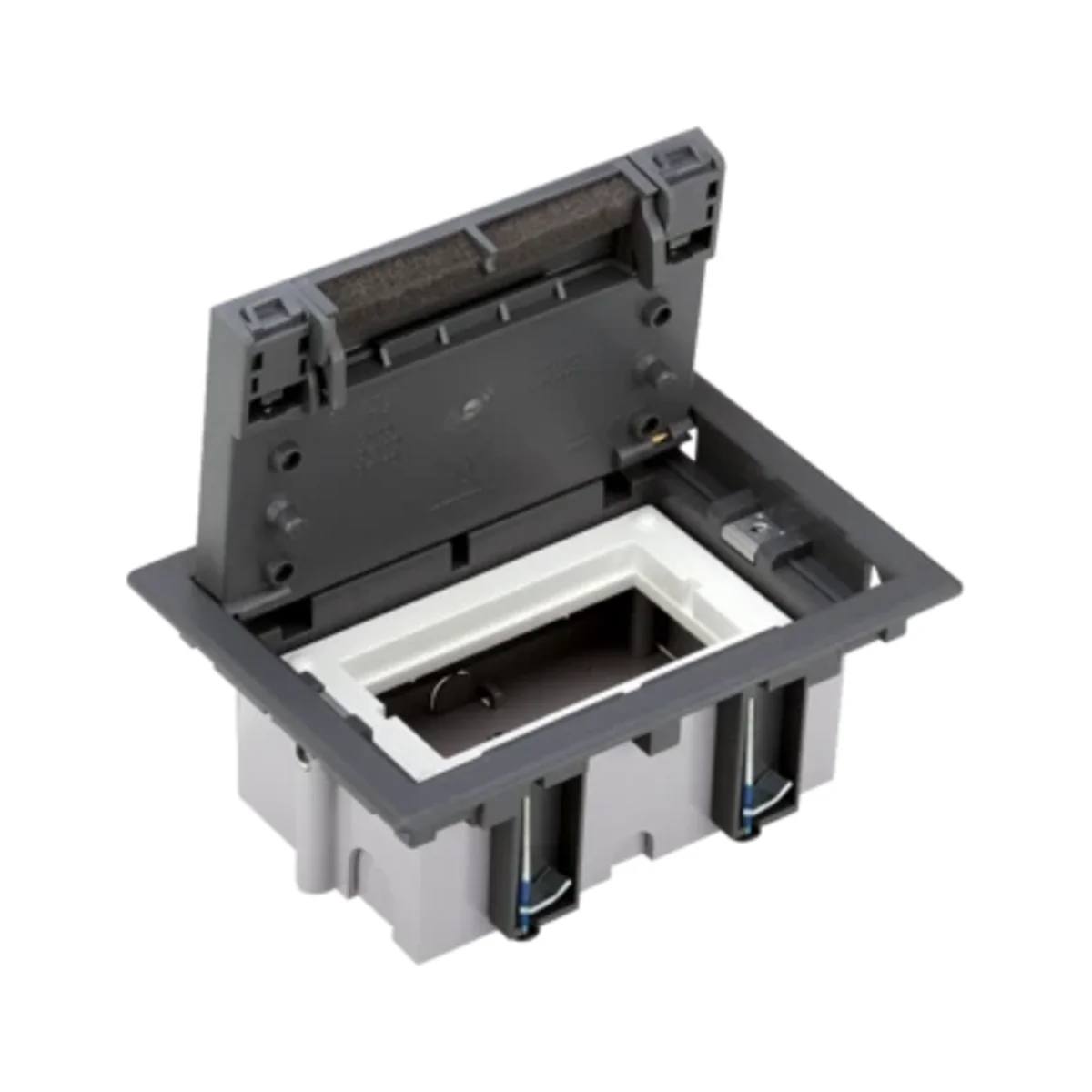

SF Floor box S500 1-module 2xK45 grey 52050001-035

local index:
MVD003KONT
Catalog No:
52050001-035
EAN code:
8421053092699
Manufacturer: KONTAKT-SIMON
Color: Gray
Family: SF
Level of security: IP40
Price:
45,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Underfloor installations are the standard for electrical and teletechnical installations in modern workplaces. The use of the SF series floor box enables simple and quick access to media in places away from the walls. The box is made of gray plastic. It is worth noting that it has a IP40 degree of protection. The installation method of the box is as follows - in a raised floor or in a screed floor. The ability to adjust the depth in the range 70-105mm. The box contains one SIMON 500 module and two K45.

Technical data

  • Color
    Gray
  • Level of security
    IP40
  • Family
    SF
  • PKWIU
    27.12.40.0

Other technical data

  • Number of device cups
    2
  • Length built-in dimension
    170 mm
  • Built-in diameter
    170 mm
  • Colour
    Grey
  • Width built-in dimension
    170 mm

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 0,730 0,730 0,736
Width (m) - - 0,155
Length (m) - - 0,195
Depth (m) - - 0,095
