BERKER

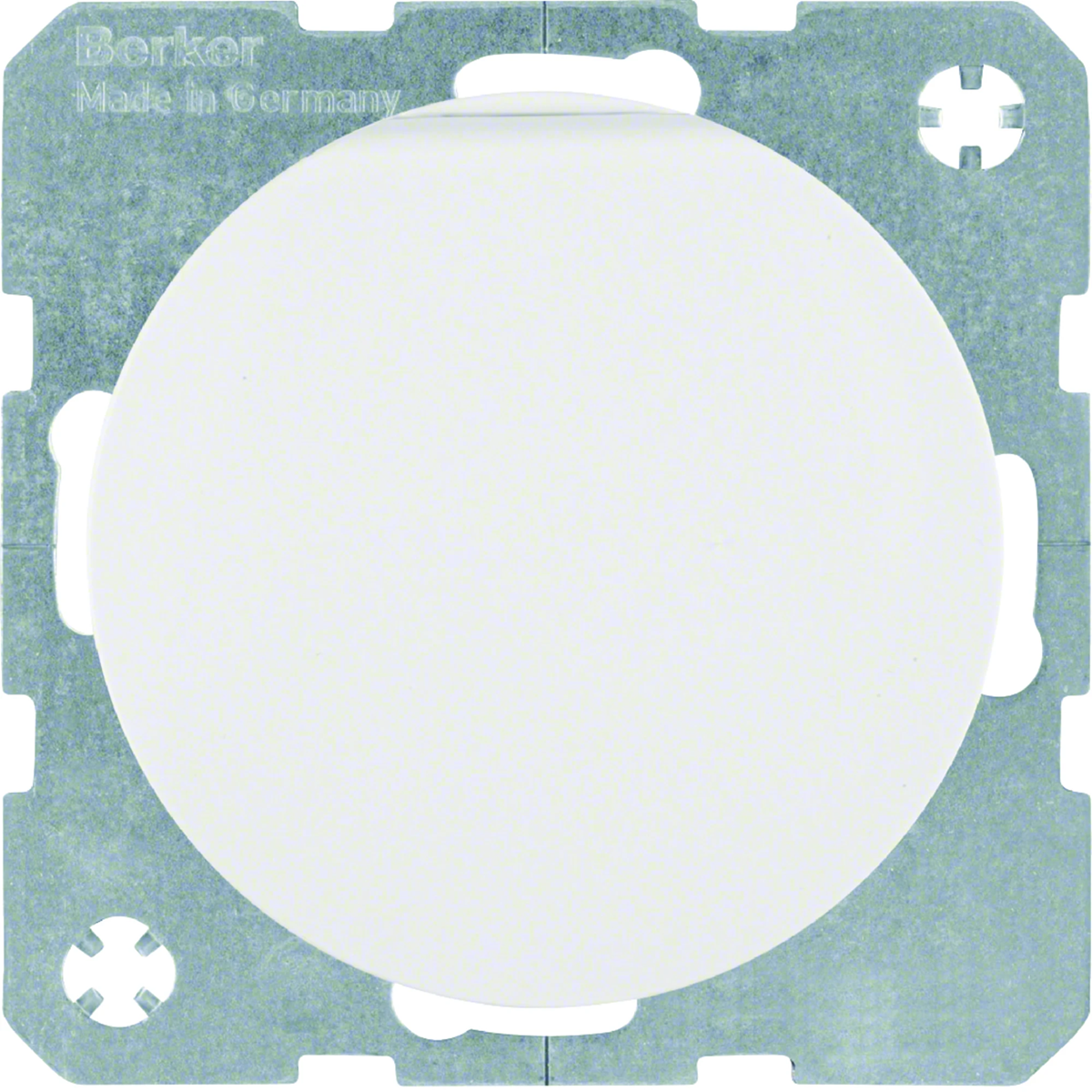

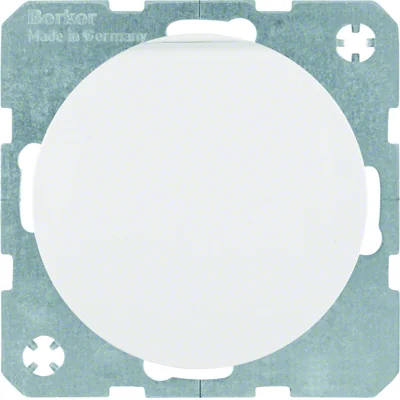

SCHUKO socket with cover Berker R.1/R.3 white, glossy 47512089

local index:
MEB017BERK
Catalog No:
47512089
EAN code:
4011334366737
Price:
18,57 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,49 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

SCHUKO socket with cover. Possibility to choose the position of the interior in steps of 45 degrees. Possibility of removing the cover when tilting it to the end position. With screw terminals.

Particularly suitable for multiple socket combinations using angled plugs.

Increased contact protection.

Technical data

  • Depth [mm]
    47.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    R.1 R.3 R.8
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Exact material
    Thermoplastic
  • Number of sockets
    1
  • Shape
    Round
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Diameter [mm]
    71
  • Ground
    schuko
  • Accurate color
    Snow white
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Additional information
    Self-closing lid

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    no
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    yes
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm
  • Min. depth of built-in installation box
    31 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    2
  • With signal lamp
    no
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    yes
  • Label space/information surface
    no
  • RAL-number (similar)
    9010
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    47.5 mm
