Manufacturer: BERKER
Depth [mm]: 47.5
Number of sockets: 1
Color: Graphite
Price:
17,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

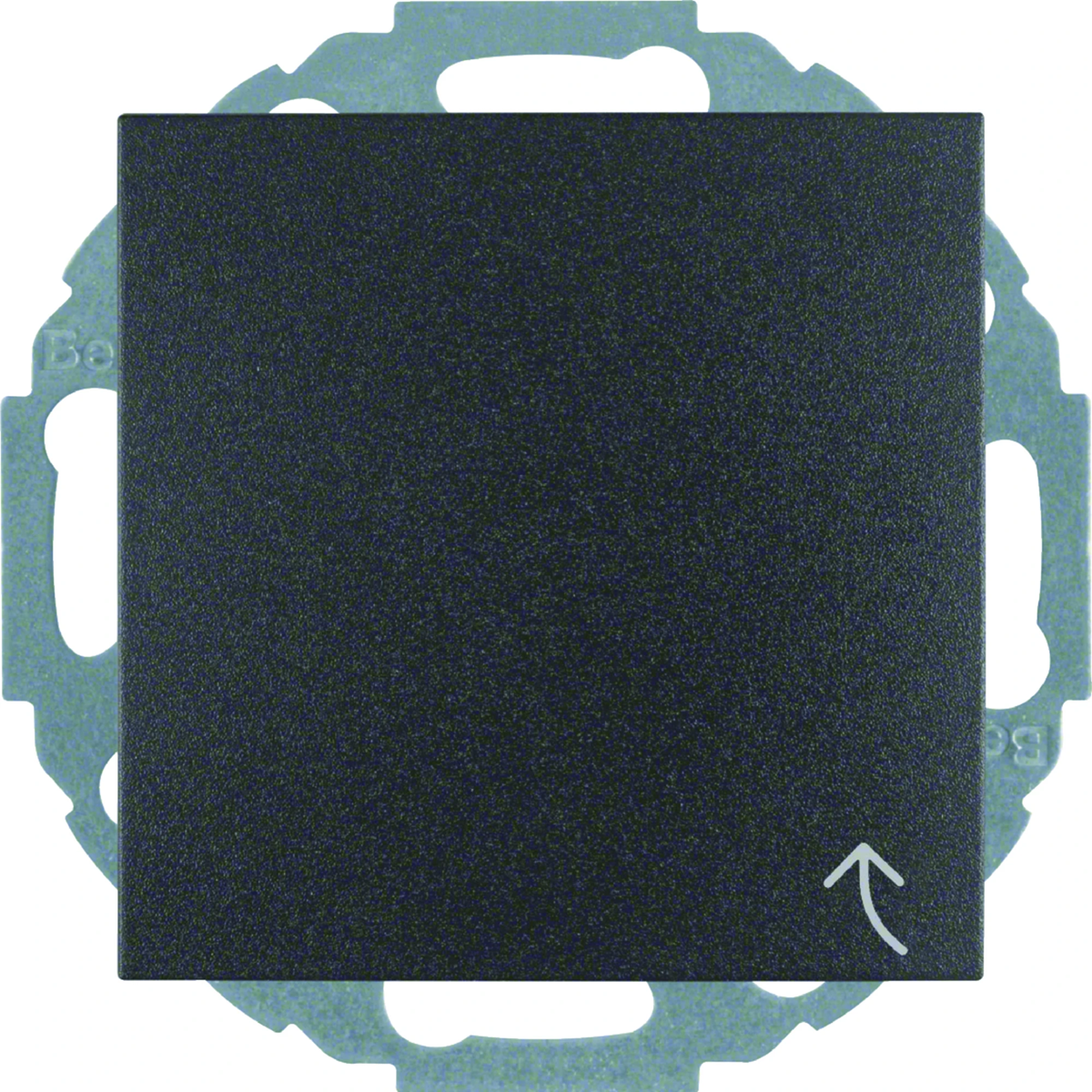

SCHUKO socket with cover. Possibility to choose the position of the interior in steps of 45 degrees. Possibility of removing the cover when tilting it to the end position. With screw terminals.

Particularly suitable for multiple socket combinations using angled plugs.

Increased contact protection.

Technical data

  • Depth [mm]
    47.5
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    16
  • Family
    B.SQUARE
  • Width [mm]
    71
  • Ground
    schuko
  • Degree of mechanical protection
    IK05
  • Accurate color
    Anthracite
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP20
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Surface finish
    matte
  • Backlight
    NO
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Anthracite
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7021
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    47.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 40 pcs. 1280 pcs.
Weight (kg) 0,077 0,910 4,096 156,072
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,048 0,070 0,225 1,050
Depth (m) 0,071 0,385 0,400 1,200
