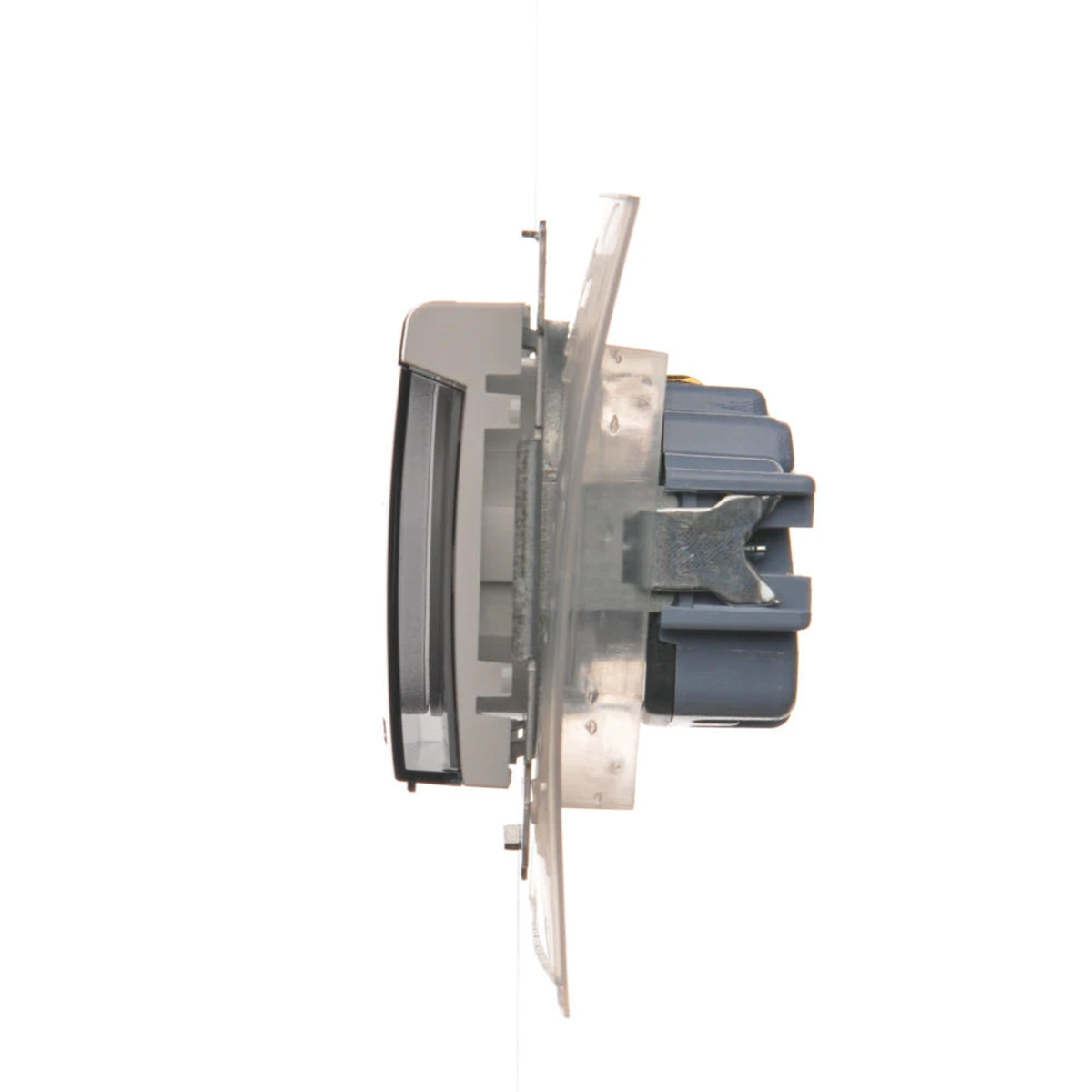

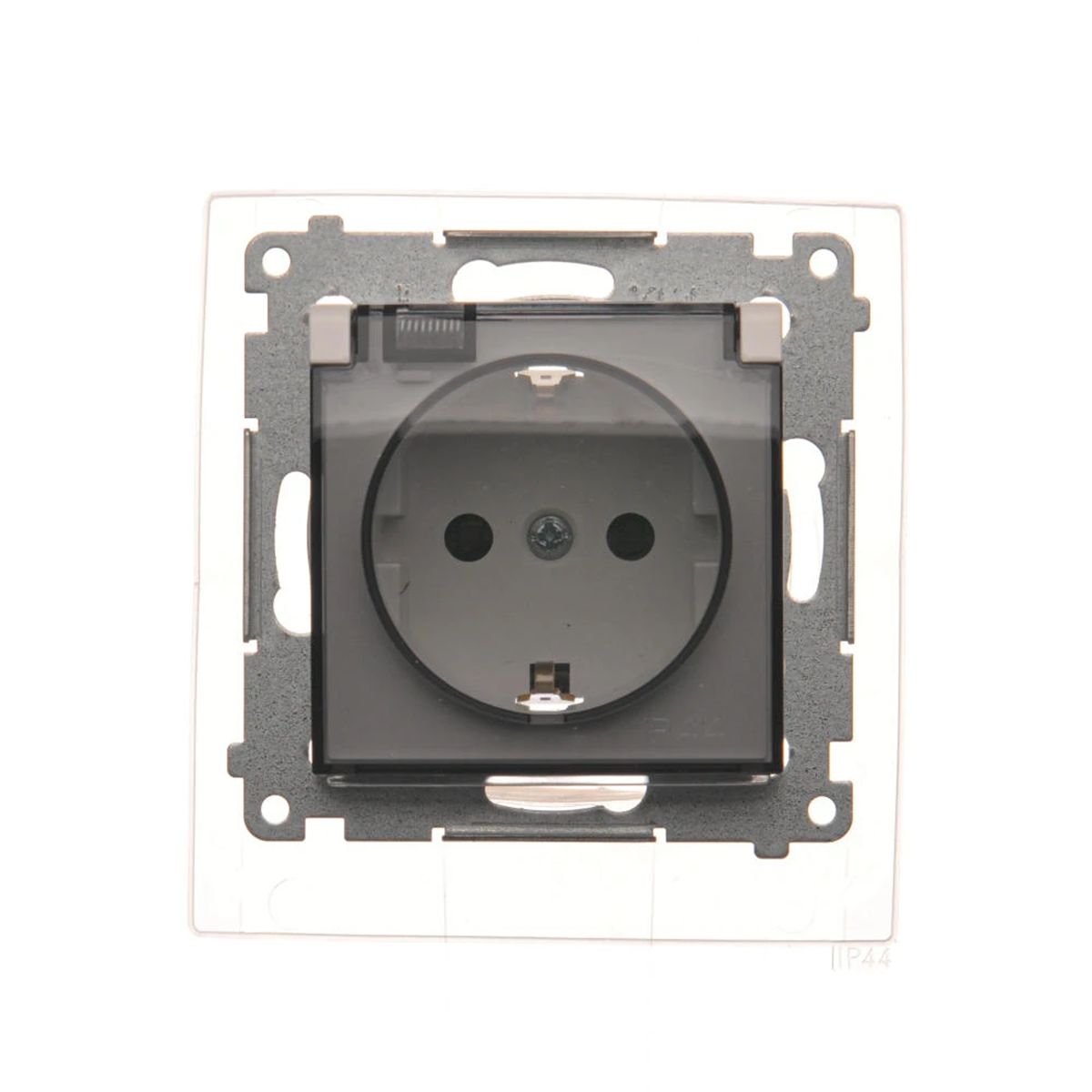

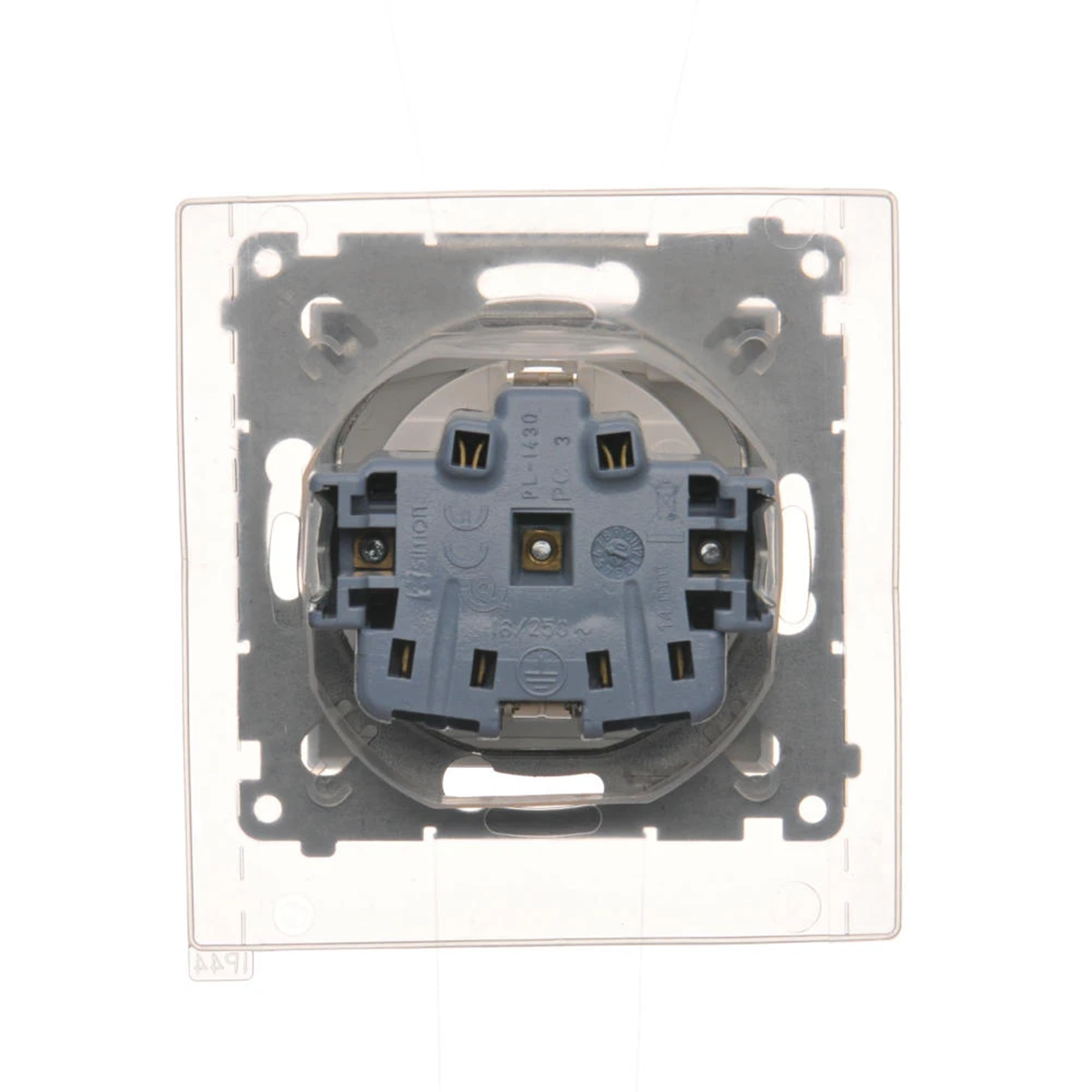

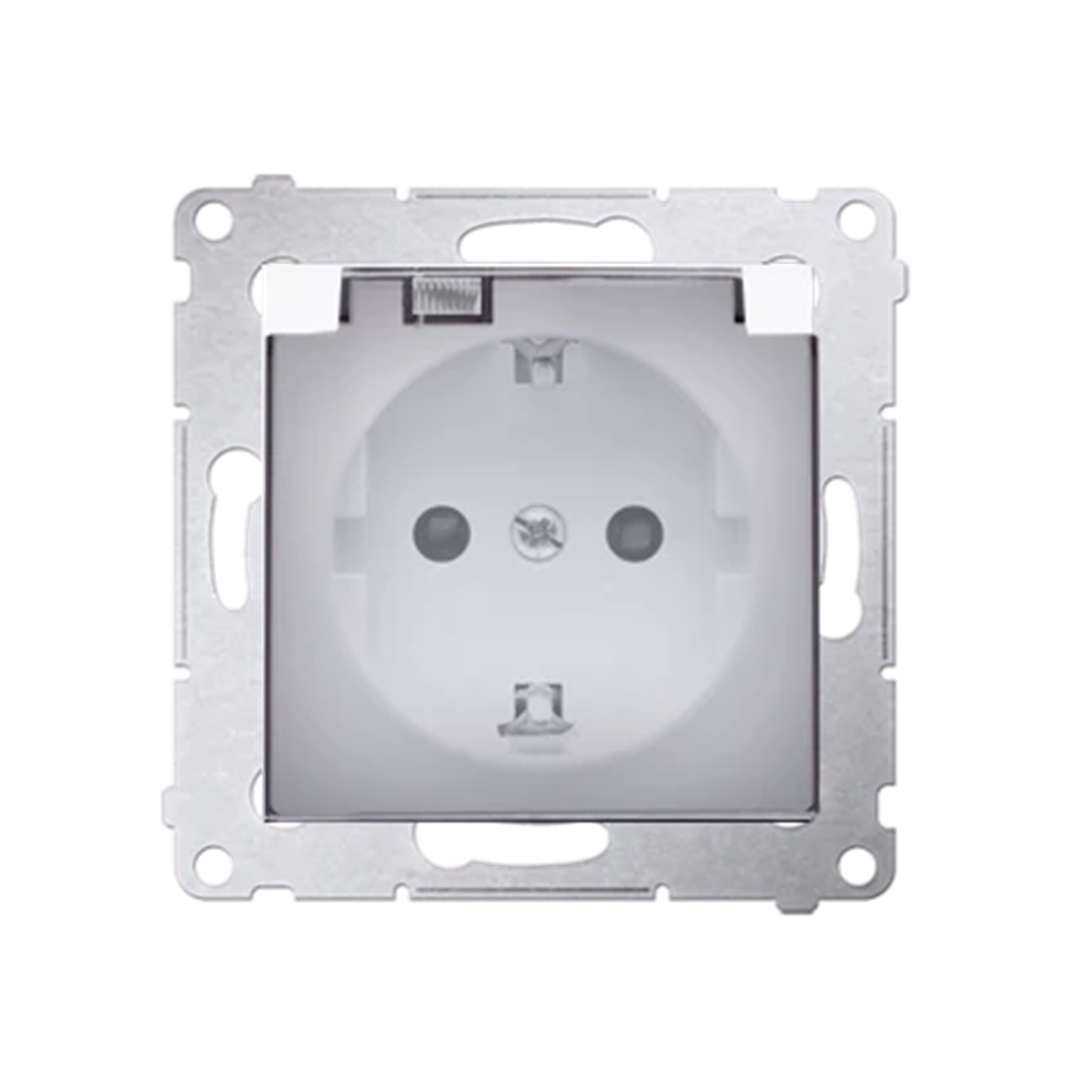

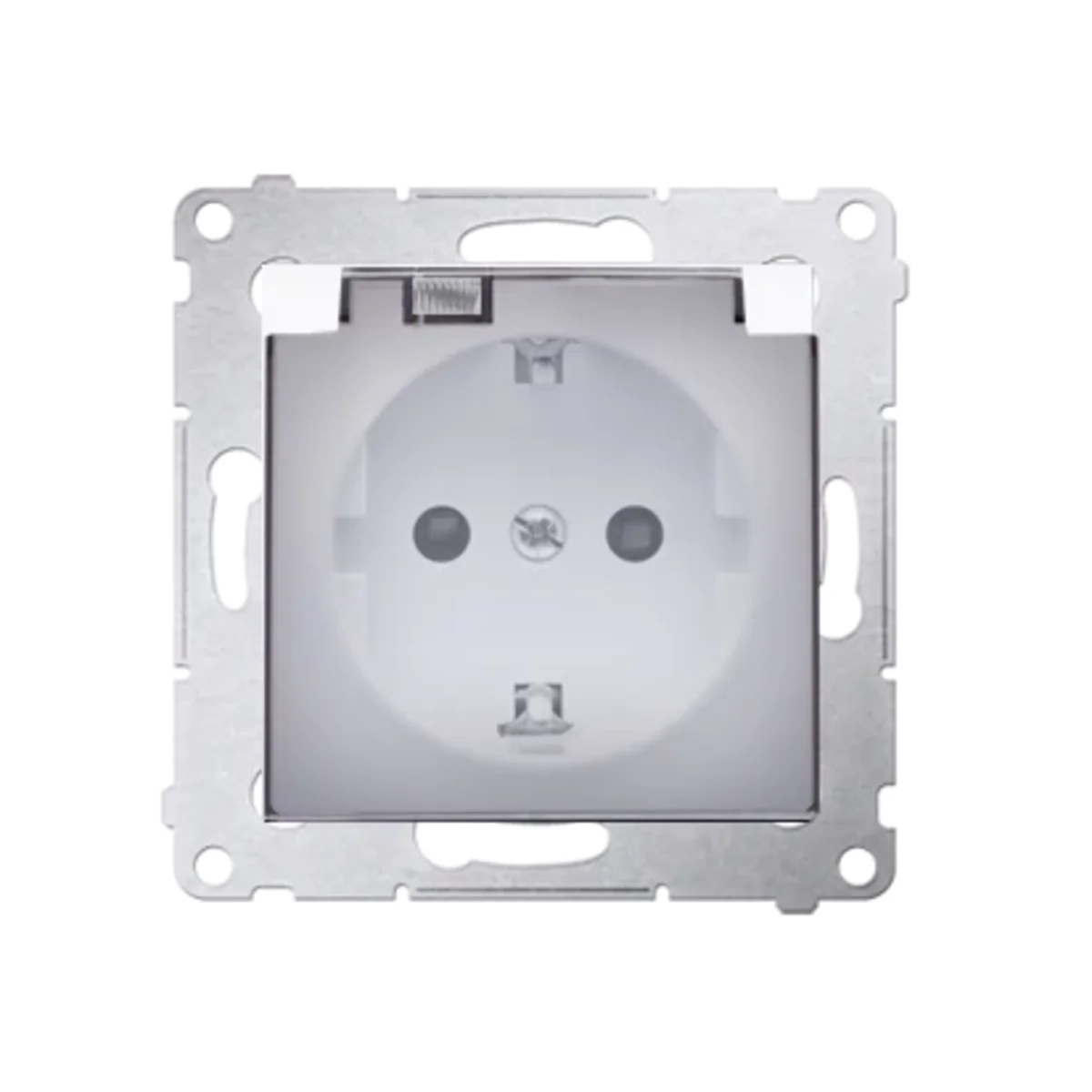

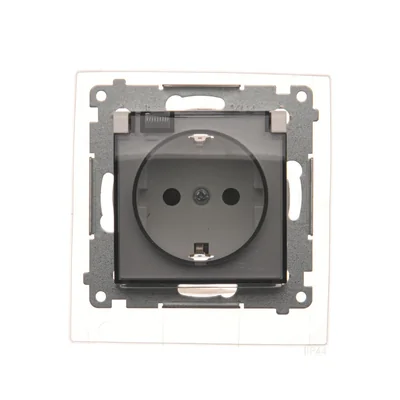

Schuko socket for IP44 version with shutters and frame gasket (module) 230V, white DGSZ1BZ.01/11A

local index:
MEB100KONT
Catalog No:
DGSZ1BZ.01/11A
EAN code:
5902787829971
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47.5
Number of sockets: 1
Price:
4,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic electric socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGSZ1BZ.01/11A.



FEATURES

  • Single.
  • With SCHUKO earthing.
  • With frame gasket.
  • With shutters for current paths< /strong>.
  • Module without frame; for frames from the Nature and Premium series.
  • Thread clamps.
  • Colour white.
  • Cloth transparent.
  • Rated current 16A.
  • Rated voltage 230V.
  • flush mounting.
  • Material PC.< /li>



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and user-friendly assembly mechanisms, distinguished by a noble form and rich colors. The hermetic electrical socket has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Rectangular
  • Fixing
    screw
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    89
  • Surface finish
    Shiny
  • Mounting depth [mm]
    31.5
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • Seal
    Yes
  • Depth [mm]
    47.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 54
  • Width [mm]
    84
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Exact material
    PC
  • PKWIU
    27.33.13.0

Other technical data

  • Number of units
    1
  • Colour
    White
  • Material
    Plastic
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Connection type
    Screwed terminal
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Frequency
    50 ... 60 Hz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,085 0,085 0,936
Width (m) 0,089 0,110 0,190
Length (m) 0,084 0,043 0,230
Depth (m) 0,047 0,160 0,100
