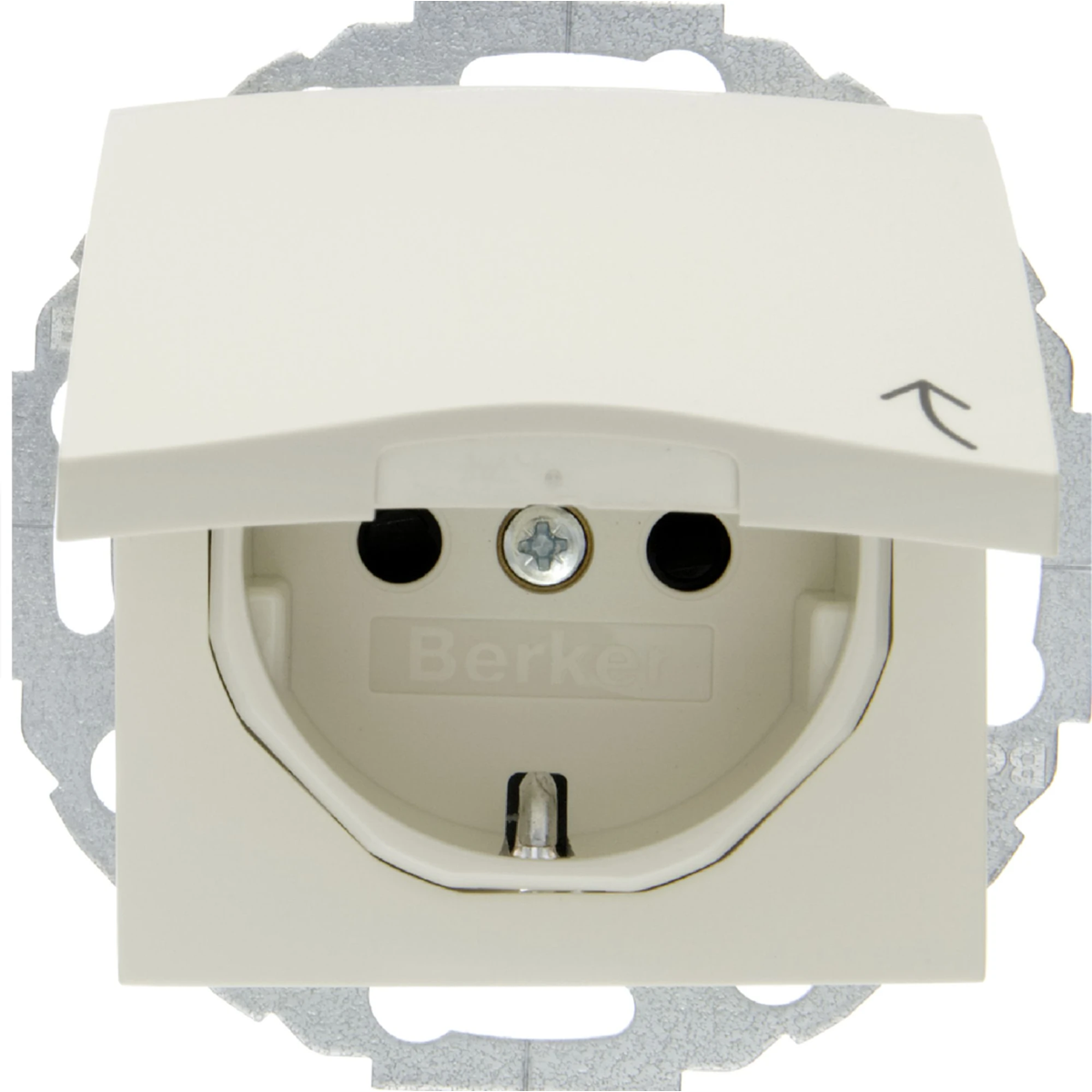

S.1 SCHUKO socket with a cover with increased protection of contacts glossy cream 47448982
Índice local:
MEB008BERK
Número de catálogo:
47448982
Código EAN:
4011334280743
Precio:
15,28 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto
SCHUKO earthed socket, with cover, with increased contact protection, Berker S.1 series.
Installation / Assembly:
- choice of the position of the built-in mechanism in 45° steps
Datos técnicos
-
Depth [mm]47.5
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyB.SQUARE
-
Width [mm]71
-
Groundschuko
-
Degree of mechanical protectionIK05
-
Accurate colorCreamy
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialThermoplastic
-
Number of sockets1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Surface finishShiny
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
PKWIU27.33.13.0
Otros datos técnicos
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Imprint/indicationOther
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)1013
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth47.5 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
Connection typePush-in clamp
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK05
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
Detalles del fabricante
-
FabricanteHAGER POLO Sp. z o. o.
-
Dirección43-100 Tychy Fabryczna 10
-
NIF6460015532
Empaquetado a granel
| una especie de paquete | Karton | Pakiet | Paleta |
| Cantidad | 10 uds. | 40 uds. | 1280 uds. |
| Peso (kg) | 0,875 | 3,953 | 146,499 |
| Ancho (m) | 0,160 | 0,300 | 0,800 |
| Longitud (m) | 0,069 | 0,225 | 1,050 |
| Profundidad (m) | 0,385 | 0,400 | 1,200 |
