R.CLASSIC USB charging socket mechanism for rotary series 3A 230V white 260219
local index:
MJU005BERK
Catalog No:
260219
EAN code:
4011334467854
Price:
72,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

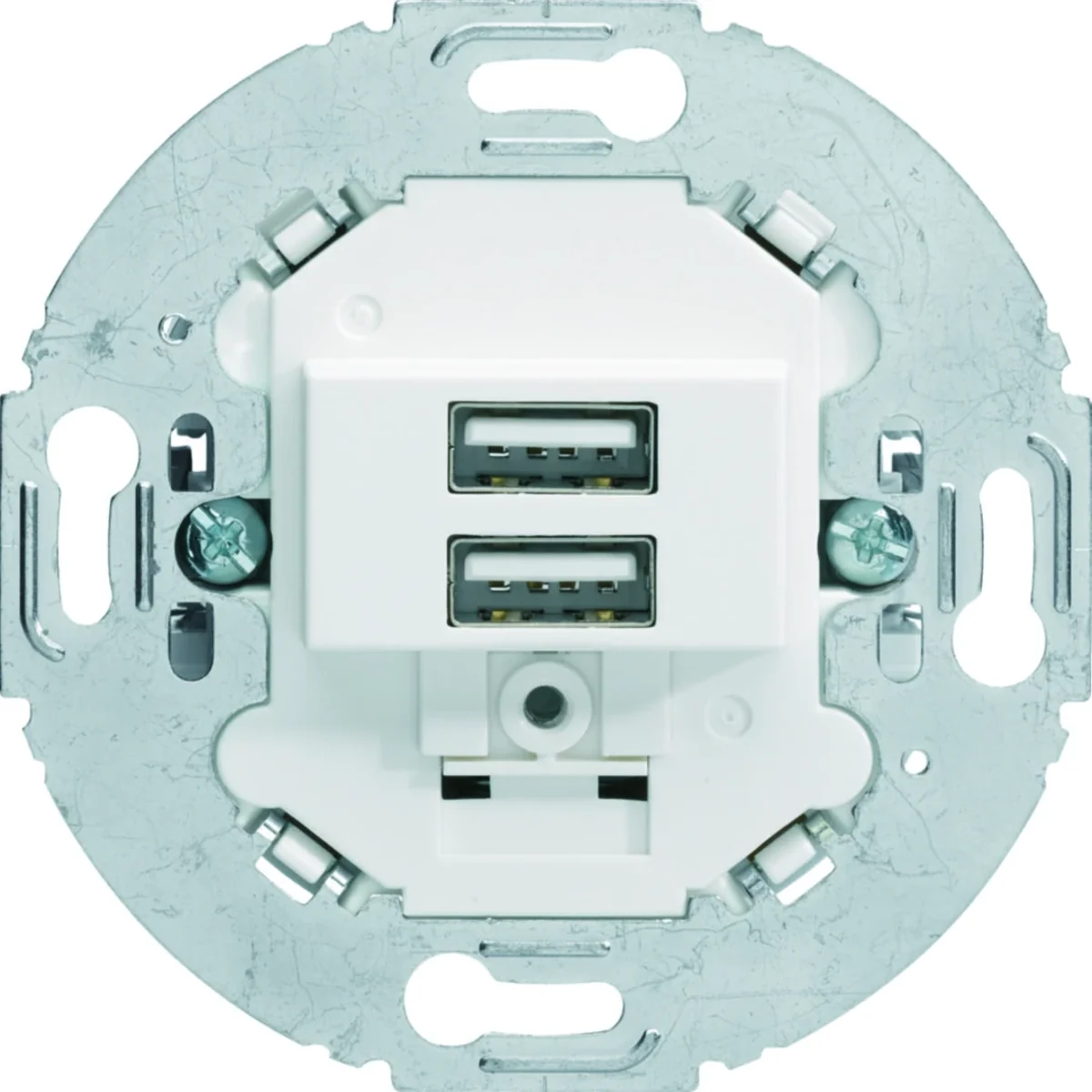

Mechanism of the USB charging socket from the R.classic series, from the manufacturer Berker. The product part number is 260219.
FEATURES
- With 2 USB type A sockets.< /li>
- White color.
- Short-circuit and overload protection (electronic fuse).
- Standby power consumption: 150mW maximum.
- Data transmission is not possible.
- To rotary series.
Technical data
-
Number of sockets2
-
Rated voltage [V]230
-
Rated current [A]3
-
FamilyR.CLASSIC
-
TypeSocket mechanism
-
Maximum conductor cross-section [mm²]2.5
-
VariantUSB
-
PKWIU27.33.13.0
-
ShapeRound
-
Output voltage [V]5
-
TypeUSB / power supply 5-24V
-
Level of securityIP20
-
Surface finishmatte
-
Terminal typeThreaded
-
For the frame systemYes
Other technical data
-
ModelBus
-
Operating voltage200 ... 250 V
-
Max. output current3000 mA
-
Mounting methodFlush-mounted
-
RAL-number9010
-
Number of outputs2
-
Frequency50 ... 60 Hz
-
Output voltage5 V
-
ColourWhite
-
Min. depth of built-in installation box34 mm
Bulk packaging
| A kind of package | Karton | Pakiet | |
| Quantity | 1 pcs. | 1 pcs. | 80 pcs. |
| Weight (kg) | 0,075 | 0,125 | 10,800 |
| Width (m) | 0,071 | 0,081 | 0,350 |
| Length (m) | 0,040 | 0,060 | 0,350 |
| Depth (m) | 0,071 | 0,081 | 0,350 |
