R.CLASSIC USB charging socket mechanism for rotary series 3A 230V anthracite 260215

local index:
MJU004BERK
Catalog No:
260215
EAN code:
4011334467861
Manufacturer: BERKER
Number of sockets: 2
Shape: Round
Rated voltage [V]: 230
Price:
76,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

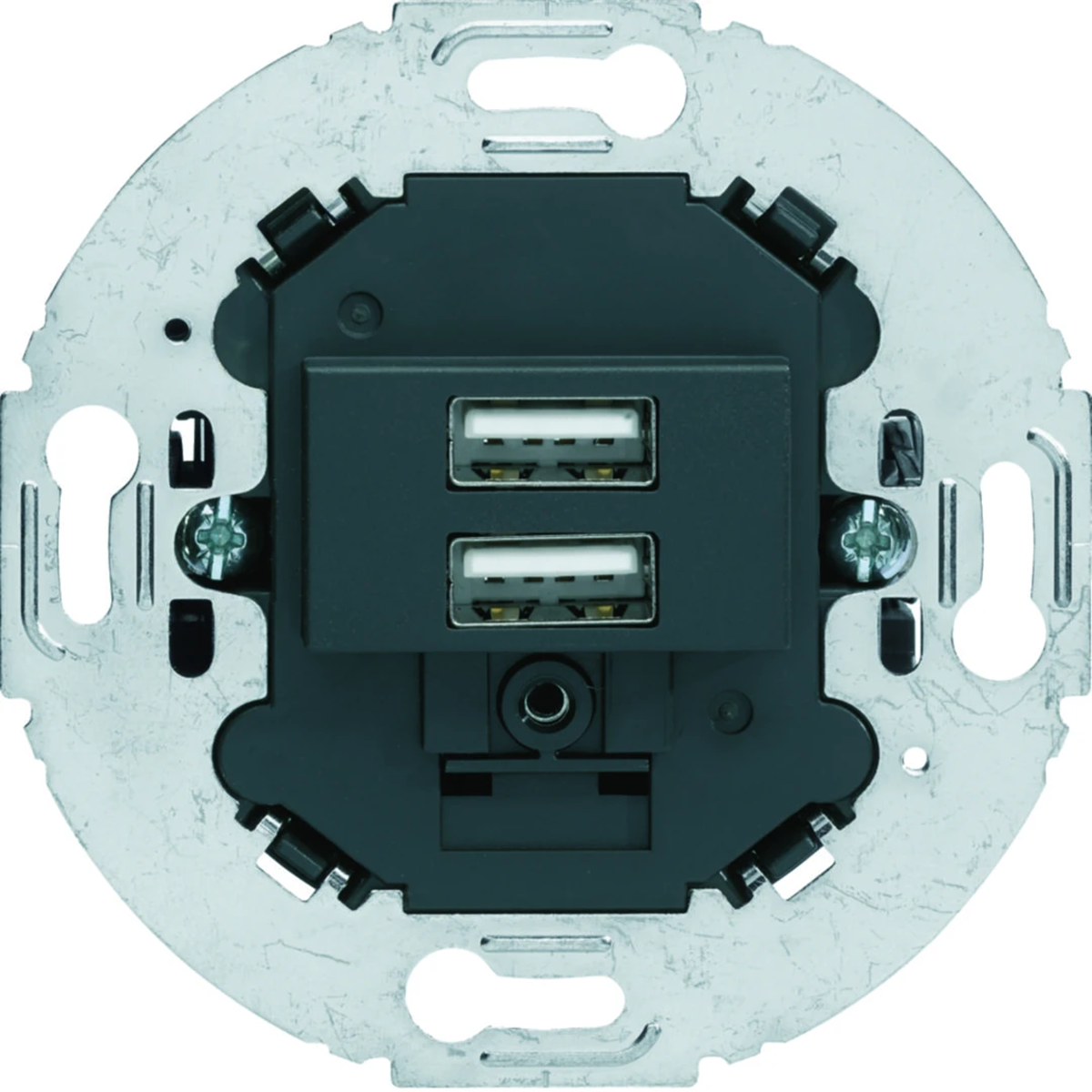

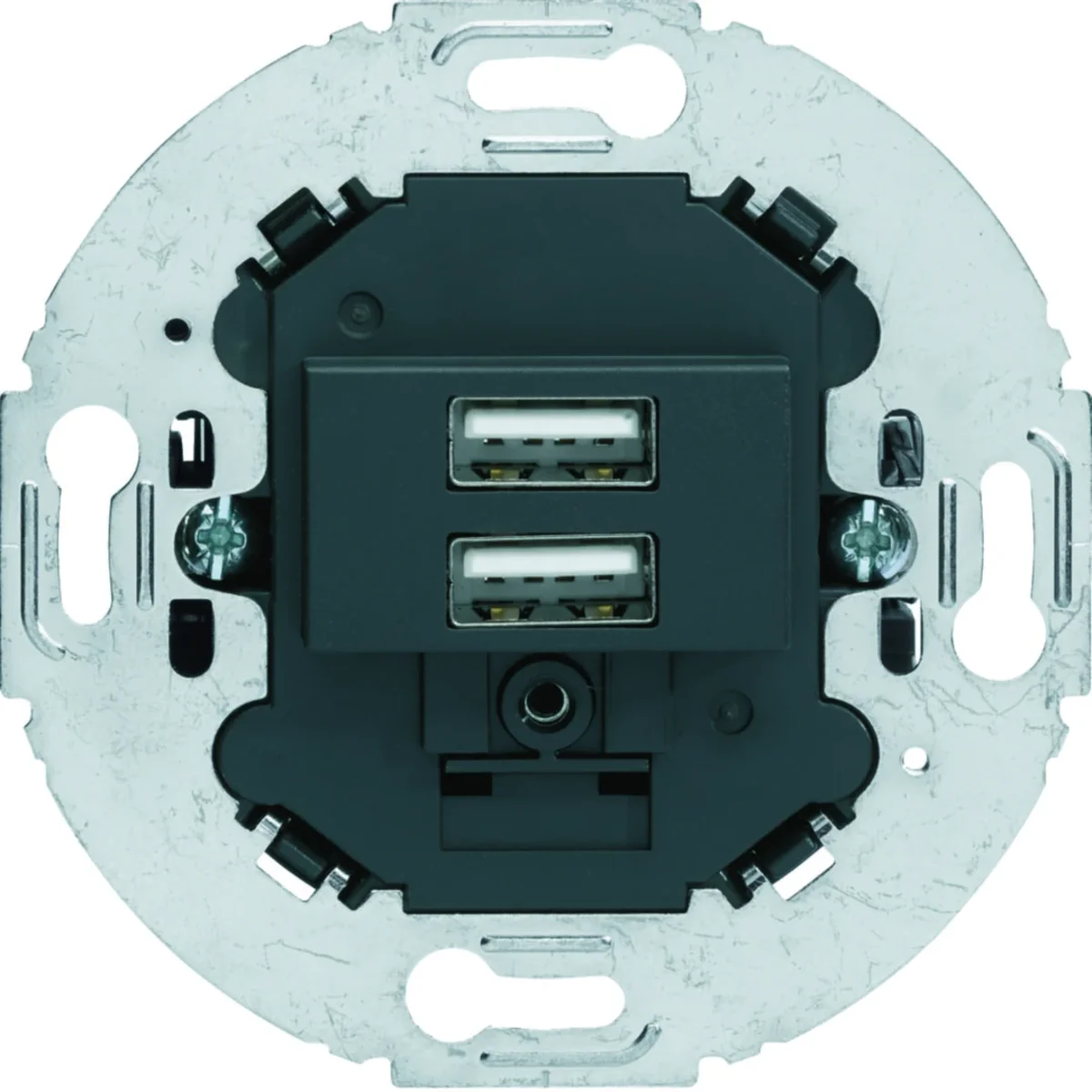

Mechanism of the USB charging socket from the R.classic series, from the manufacturer Berker. The product part number is 260215.



FEATURES

  • With 2 USB type A sockets.< /li>
  • Short-circuit and overload protection (electronic fuse).
  • Standby power consumption: 150mW maximum.
  • Data transmission not possible.
  • For rotary series.

Technical data

  • Number of sockets
    2
  • Rated voltage [V]
    230
  • Rated current [A]
    3
  • Family
    R.CLASSIC
  • Type
    Socket mechanism
  • Maximum conductor cross-section [mm²]
    2.5
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Shape
    Round
  • Output voltage [V]
    5
  • Type
    USB / power supply 5-24V
  • Level of security
    IP20
  • Surface finish
    matte
  • Accurate color
    Anthracite
  • Variant
    USB
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Other
  • Number of ports USB-C
    0
  • Frequency
    50 ... 60 Hz
  • Output voltage
    5 ... 5 V
  • Connection type
    Screwed terminal
  • Colour
    Anthracite
  • Device width
    70.8 mm
  • Device depth
    40 mm
  • Suitable for degree of protection (IP)
    IP20
  • Anti-bacterial treatment
    No
  • Number of ports USB-A
    2
  • Operating voltage
    230 ... 230 V
  • Max. output current
    3000 mA
  • Power consumption
    0.15 W
  • Mounting method
    Flush-mounted
  • RAL-number
    7021
  • Device height
    70.8 mm
  • Min. depth of built-in installation box
    34 mm
  • Impact strength
    Other

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 80 pcs. 640 pcs.
Weight (kg) 0,070 6,000 48,000
Width (m) 0,080 0,350 0,800
Length (m) 0,060 0,350 1,050
Depth (m) 0,080 0,350 1,200
