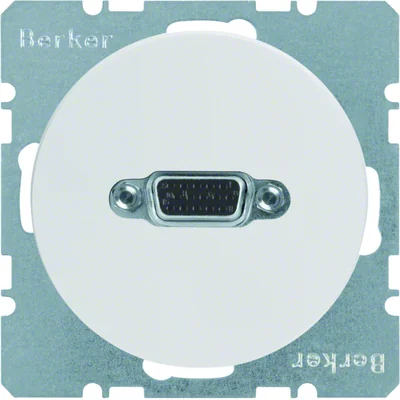

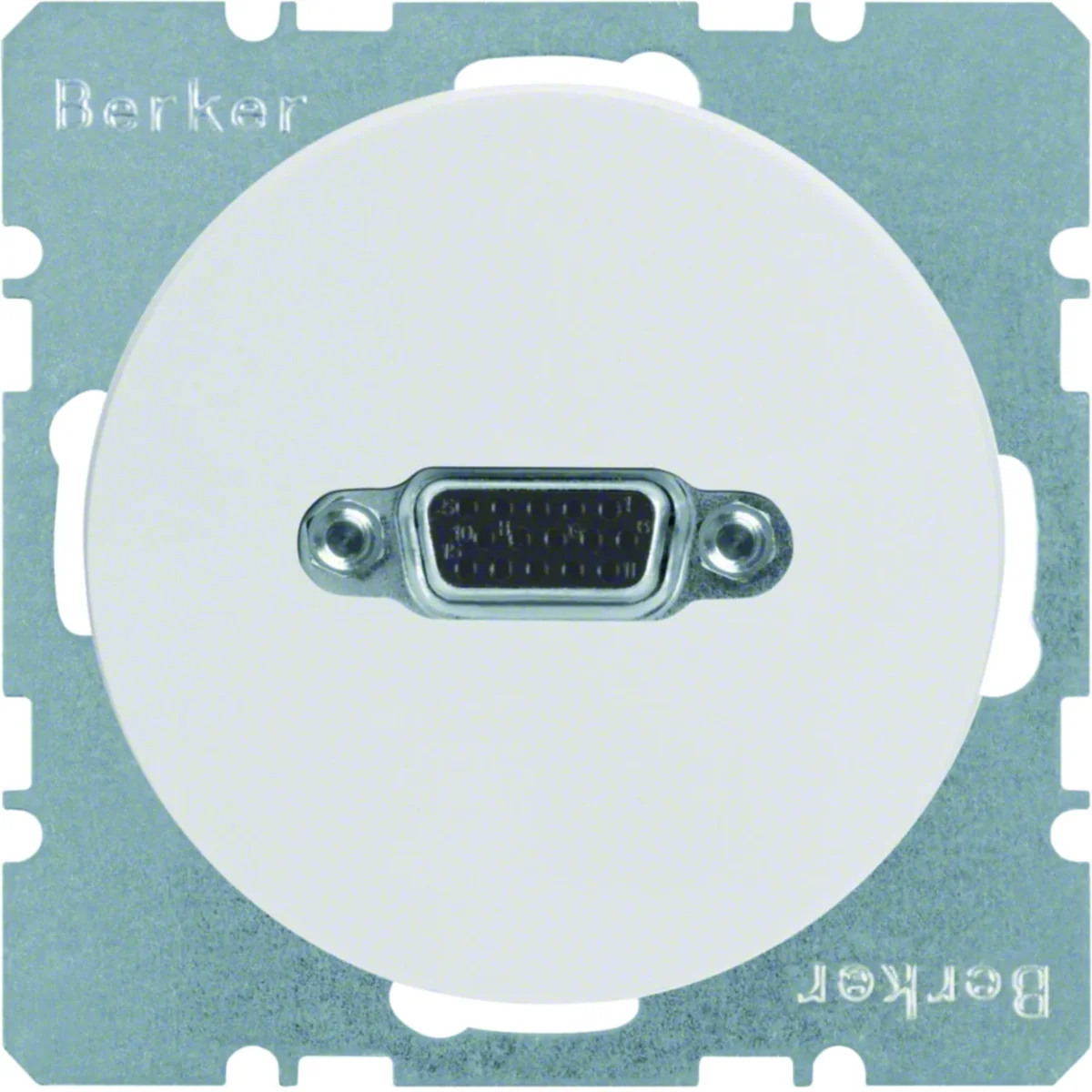

R.1/R.3 VGA socket with screw terminals, glossy white 3315412089

local index:
MEH019BERK
Catalog No:
3315412089
EAN code:
4011334367192
Manufacturer: BERKER
Number of sockets: 1
Color: White
Shape: Round
Price:
63,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

VGA socket from the R.1/R.3 series, from Berker. The product part number is 3315412089.



FEATURES

  • Single.
  • With straight-through output.
  • S-VGA compatible.
  • With 15-pin D-sub (front).
  • Video frequency range:  maximum 160 MHz.
  • Resolution: maximum 1280 x 1024 px.
  • Without spreader legs.
  • With screw-latch terminals for connecting 15- VGA cable.
  • With support ring.
  • Enables connection of PCs and laptops to display devices, e.g. monitors (LCD) and projectors.

Technical data

  • Number of sockets
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Family
    R.1 R.3 R.8
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Accurate color
    Snow white
  • Variant
    VGA
  • Exact material
    Material Metal
  • Color
    White
  • Material
    Plastic
  • Type
    HDMI / VGA
  • Resolution [px]
    1280 x 1024
  • Width [mm]
    71
  • Height [mm]
    71
  • Maximum conductor cross-section [mm²]
    1.5
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • With dust cover
    No
  • Outlet direction
    Straight
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    23.5 mm
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Shielded buses
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    13 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 40 pcs. 1280 pcs.
Weight (kg) 0,060 0,729 3,358 127,456
Width (m) 0,071 0,152 0,300 0,800
Length (m) 0,038 0,075 0,225 1,050
Depth (m) 0,071 0,295 0,400 1,200
