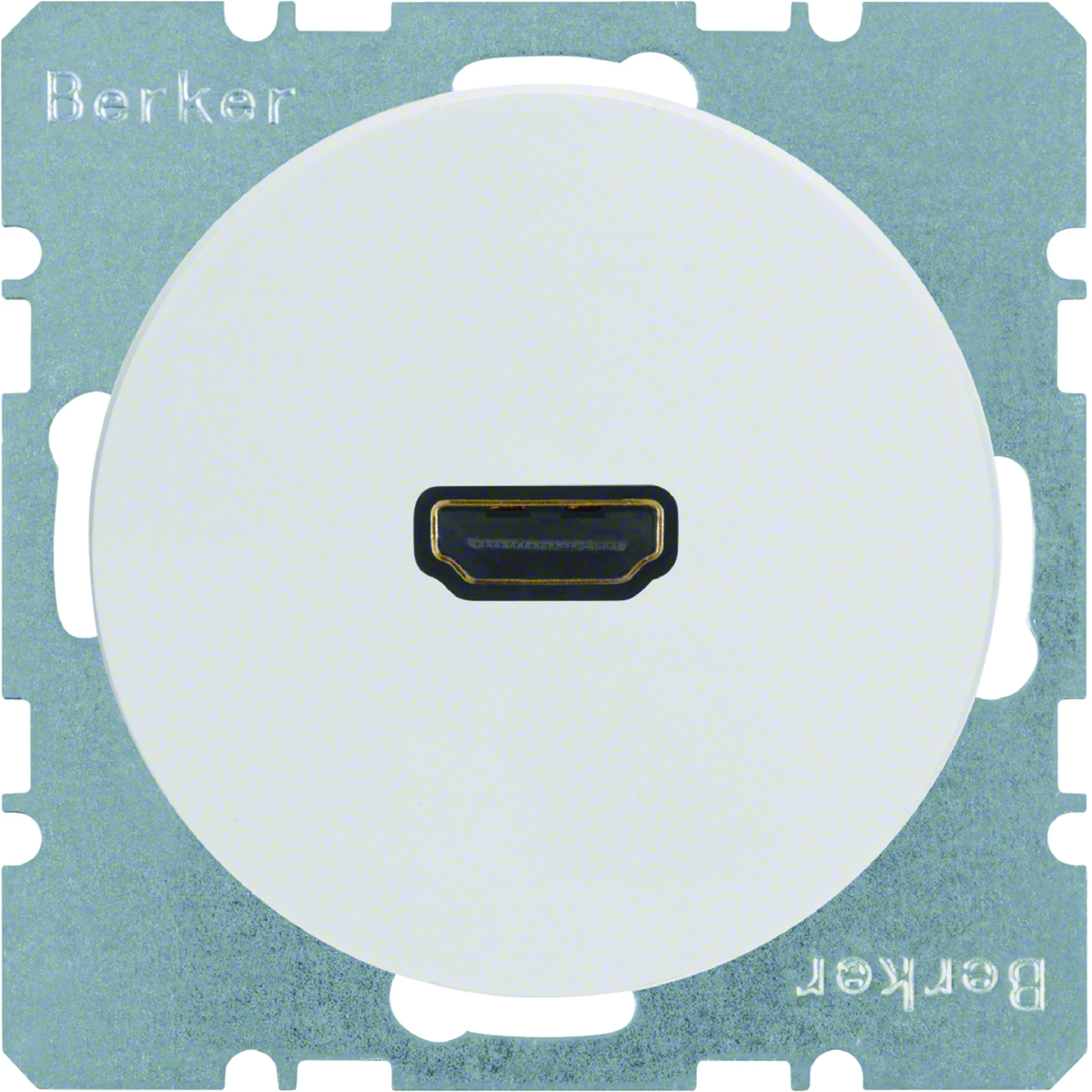

R.1/R.3 HDMI socket with 90° connection, glossy white

Click on the photo to enlarge

R.1/R.3 HDMI socket with 90° connection, glossy white
BERKER

R.1/R.3 HDMI socket with 90° connection, glossy white 3315432089

local index:
MEH047BERK
Catalog No:
3315432089
EAN code:
4011334370970
Price:
129,51 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

HDMI socket from the R.1/R.3/R.8 series, from the manufacturer Berker. Product part number is 3315432089.



FEATURES

  • 90 angle connection°.
  • Single.
  • With straight output.
  • 19-pole.
  • With HDMI™ type A.
  • Frequency range (vertical polarization): 50…85 Hz.
  • Resolution: up to 1920 x 1080 px.
  • Transmission speed : maximum 8.16 Gbit/s.
  • Gold-plated contacts.
  • Without spreaders, for screw connection.
  • For connecting digital devices to transmission of high definition audio and video signals, e.g. from a satellite receiver, DVD or BD player to an LCD or plasma screen.
Print the product sheet Report an error

Technical data

  • Number of sockets
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Family
    R.1 R.3 R.8
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Variant
    HDMI
  • Exact material
    Material Metal
  • Color
    White
  • Material
    Plastic
  • Type
    HDMI / VGA
  • Resolution [px]
    1920x1080
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Snow white
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    yes
  • With hinged lid
    no
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    no
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Shielded buses
    yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    18 mm
  • Utilization
    HDMI
  • With dust cover
    no
  • Outlet direction
    Straight
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    no
  • With buses/couplings
    yes
  • With strain relief
    no
  • Luster terminal
    no
  • Device width
    71 mm
  • Device depth
    28.3 mm
