R.1/R.3 HDMI socket black gloss 3315422045
local index:
MEH032BERK
Catalog No:
3315422045
EAN code:
4011334365457
Price:
151,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

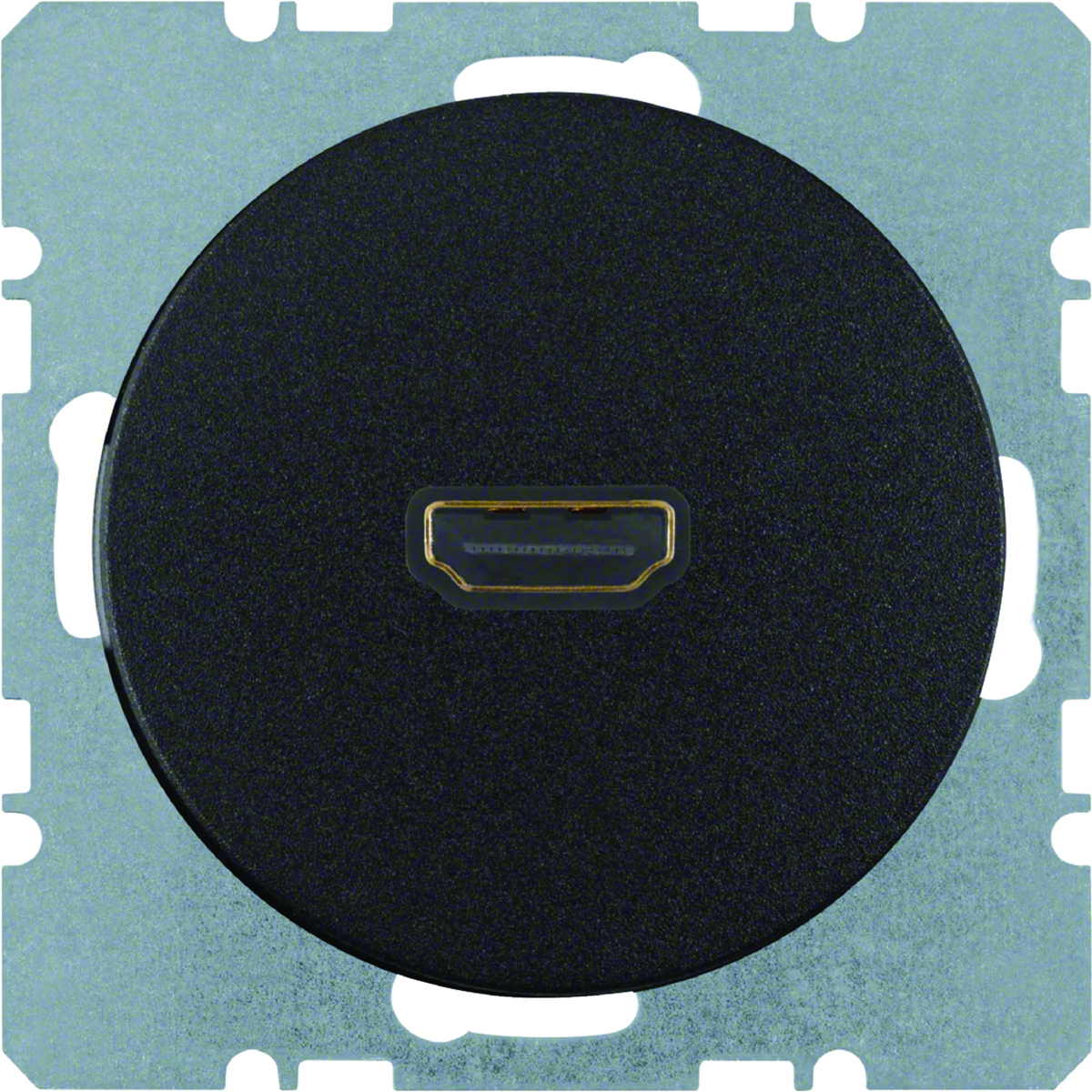

HDMI socket from the R.1/R.3/R.8 series, from the manufacturer Berker. The product part number is 3315422045.
FEATURES
- Single.
- With straight-through output.
- 19-pole.
- With HDMI type A socket.
- Frequency range (vertical polarization): 50…85 Hz.< /li>
- Resolution: up to 1920 x 1080 px.
- Transmission speed: up to 8.16 Gbit/s.
- Gold-plated contacts.
- Without spreader legs, for screw connection.
- For connecting digital devices for the transmission of high-resolution audio and video signals, e.g. from a satellite receiver, DVD or BD player to LCD or plasma screen.
Technical data
-
Number of sockets1
-
ShapeRound
-
InstallationFlush-mounted
-
FamilyR.1 R.3 R.8
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface finishShiny
-
VariantHDMI
-
Exact materialMaterial Metal
-
ColorBlack
-
MaterialPlastic
-
TypeHDMI / VGA
-
Resolution [px]1920x1080
-
Width [mm]71
-
Height [mm]71
-
Mounting depth [mm]16.8
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Support ringYes
-
With hinged lidNo
-
Imprintable labelWithout indication field
-
MaterialOther
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9005
-
Type of fasteningMounting with screw
-
Suitable for number of connectors1
-
Shielded busesYes
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box18 mm
-
UtilizationHDMI
-
With dust coverNo
-
Outlet directionStraight
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
ColourBlack
-
TransparentNo
-
With buses/couplingsYes
-
With strain reliefNo
-
Luster terminalNo
-
Device width71 mm
-
Device depth28.3 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 40 pcs. | 1280 pcs. |
| Weight (kg) | 0,649 | 3,038 | 117,216 |
| Width (m) | 0,152 | 0,300 | 0,800 |
| Length (m) | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,295 | 0,400 | 1,200 |
