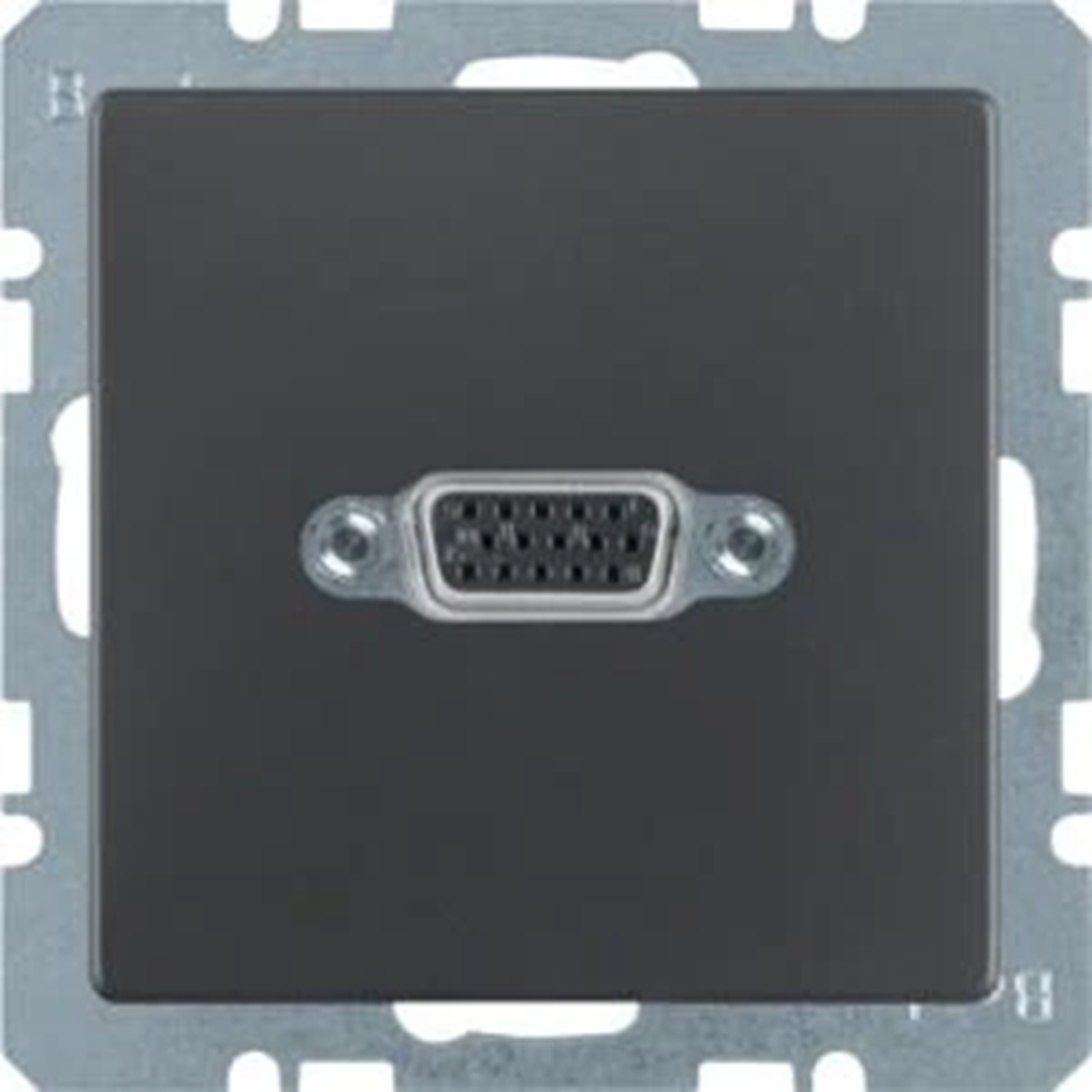

Q.1/Q.3 VGA socket with screw terminals anthracite velvet 3315416086

local index:
MEH021BERK
Catalog No:
3315416086
EAN code:
4011334379799
Manufacturer: BERKER
Number of sockets: 1
Color: Graphite
Shape: Square
Price:
83,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

VGA socket from the Q.1/Q.3/Q.7 series, from Berker. The product part number is 3315416086.



FEATURES

  • Single.
  • With straight-through output.
  • S-VGA compatible.
  • With 15-pin D-sub socket (front).
  • Video frequency range:  maximum 160 MHz.
  • Resolution: maximum 1280 x 1024 px.
  • Without spreader legs.
  • With screw-latch terminals for connecting 15- VGA cable.
  • With support ring.
  • Enables connection of PCs and laptops to display devices, e.g. monitors (LCD) and projectors.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Flush-mounted
  • Family
    Q.1 Q.3 Q.7
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Maximum conductor cross-section [mm²]
    1.5
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Graphite
  • Material
    Plastic
  • Type
    HDMI / VGA
  • Resolution [px]
    1280 x 1024
  • Width [mm]
    71
  • Height [mm]
    71
  • Surface finish
    velvet
  • Accurate color
    Anthracite
  • Variant
    VGA
  • Exact material
    Material Metal

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • With dust cover
    No
  • Outlet direction
    Straight
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Transparent
    No
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    23.5 mm
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Shielded buses
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    13 mm

Bulk packaging

A kind of package Pakiet
Quantity 10 pcs.
Weight (kg) 0,729
Width (m) 0,152
Length (m) 0,075
Depth (m) 0,295
