315502
0

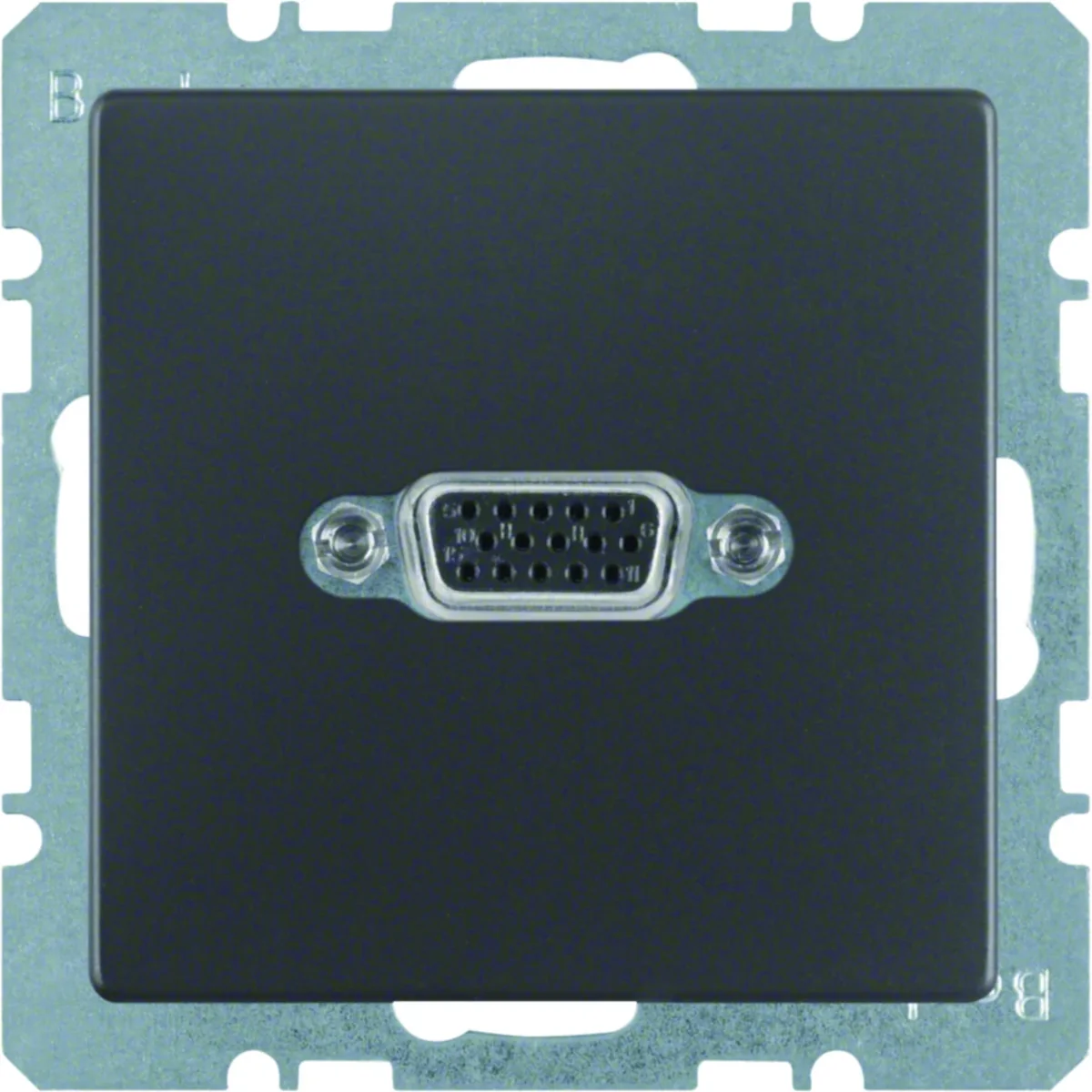

Q.1/Q.3 VGA socket anthracite velvet 3315406086
local index:
MEH007BERK
Catalog No:
3315406086
EAN code:
4011334379775
Price:
79,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
VGA socket from the Q.1/Q.3/Q.7 series, from Berker. The product part number is 3315406086.
FEATURES
- Single.
- With straight-through output.
- S-VGA compatible.
- With 15-pin D-sub (front).
- Video frequency range: up to 160 MHz.
- Resolution: up to 1280 x 1024 px.
- Without clamps, for screw connection.
- With socket on the back for for connection of a factory-prepared VGA cable.
- With riser ring.
- Enables connection of PCs and laptops to display devices, e.g. monitors (LCD) and projectors.
Technical data
-
Number of sockets1
-
ShapeSquare
-
InstallationFlush-mounted
-
FamilyQ.1 Q.3 Q.7
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Accurate colorAnthracite
-
VariantVGA
-
Exact materialMaterial Metal
-
ColorGraphite
-
MaterialPlastic
-
TypeHDMI / VGA
-
Resolution [px]1280 x 1024
-
Width [mm]71
-
Height [mm]71
-
Surface finishvelvet
-
Mounting depth [mm]12
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
With dust coverNo
-
Outlet directionStraight
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionLacquered
-
ColourAnthracite
-
TransparentNo
-
With buses/couplingsYes
-
With strain reliefNo
-
Luster terminalNo
-
Device width71 mm
-
Device depth23.5 mm
-
Support ringYes
-
With hinged lidNo
-
Imprintable labelWithout indication field
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with screw
-
Suitable for number of connectors1
-
Shielded busesYes
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box14 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 40 pcs. | 1280 pcs. |
| Weight (kg) | 0,055 | 0,655 | 3,060 | 122,920 |
| Width (m) | 0,071 | 0,160 | 0,300 | 0,800 |
| Length (m) | 0,038 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,295 | 0,400 | 1,200 |
