Q.1/Q.3 USB socket/3.5mm jack anthracite 3315396086
local index:
MEU012BERK
Catalog No:
3315396086
EAN code:
4011334379768
Price:
81,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

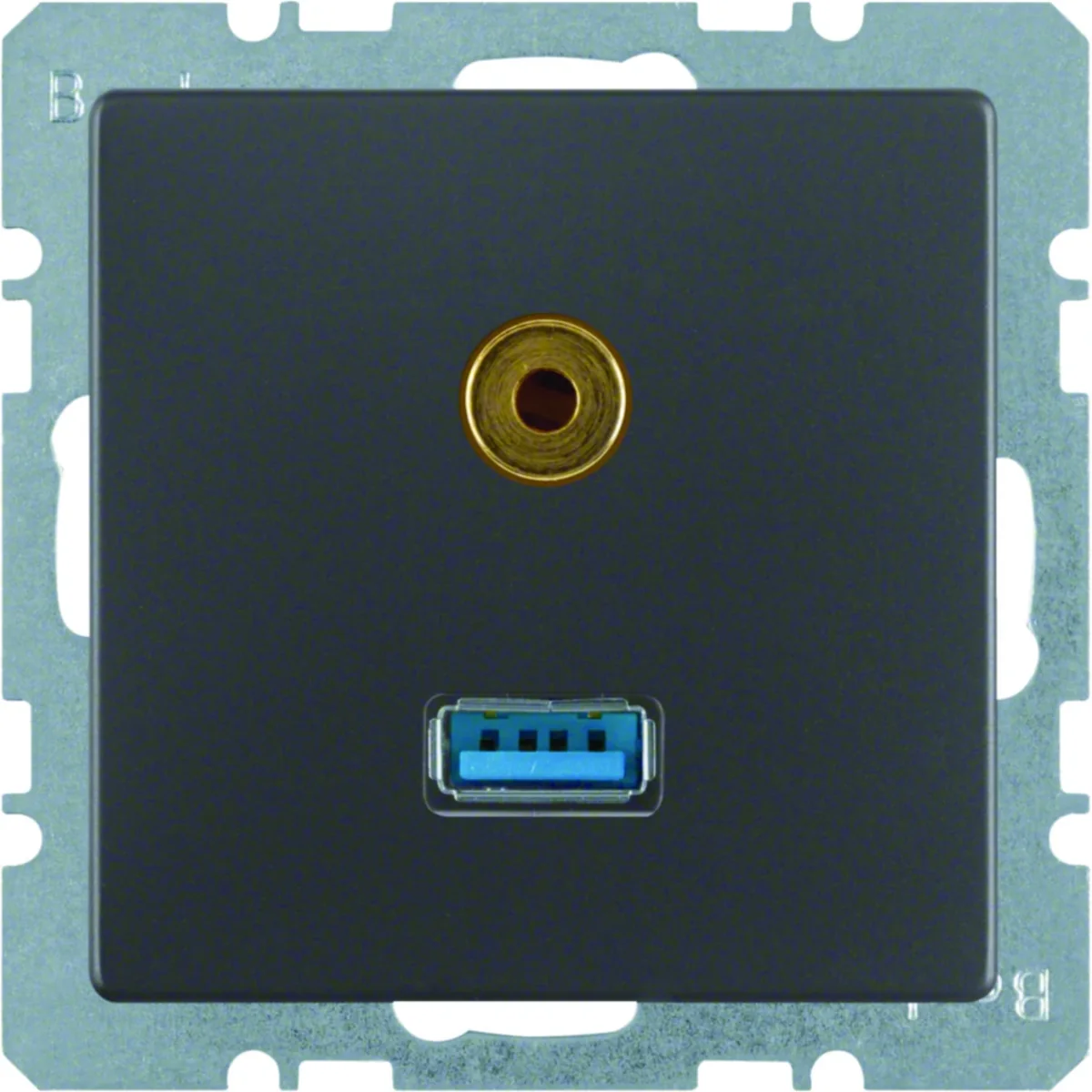

USB socket from the Q.1/Q.3/Q.7 series, from Berker. The product part number is 3315396086.
FEATURES
- USB port type A, compatible with USB 2.0.
- Gold-plated 3.5 mm jack, stereo (mini jack).
- With straight output.
- Audio frequency range: 20 Hz…20 kHz.
- USB transfer rate: max. 5 Gbit/s.
- Without struts.
- Intended for connecting portable devices such as mobile phones, MP3 players (mini audio), digital and computer cameras peripheral devices (USB 2.0).
- Recommended use of mounting boxes for electronic devices with increased volume in order to properly lay wireów.
Technical data
-
Depth [mm]36.4
-
ColorGraphite
-
MaterialPlastic
-
InstallationFlush-mounted
-
FamilyQ.1 Q.3 Q.7
-
Width [mm]71
-
Height [mm]71
-
Surface finishvelvet
-
VariantUSB
-
Extra socketJACK
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
Fixingscrews
-
TypeUSB / power supply 5-24V
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Accurate colorAnthracite
-
For the frame systemYes
-
Exact materialMaterial Metal
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Support ringYes
-
With hinged lidNo
-
Imprintable labelWithout indication field
-
MaterialOther
-
Surface protectionLacquered
-
ColourAnthracite
-
TransparentNo
-
With buses/couplingsYes
-
With strain reliefNo
-
Luster terminalNo
-
Device width71 mm
-
Device depth36.4 mm
-
UtilizationUSB/jack plug
-
With dust coverNo
-
Outlet directionStraight
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with screw
-
Suitable for number of connectors2
-
Shielded busesYes
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 40 pcs. | 1280 pcs. |
| Weight (kg) | 0,065 | 0,779 | 3,558 | 133,856 |
| Width (m) | 0,071 | 0,152 | 0,300 | 0,800 |
| Length (m) | 0,038 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,295 | 0,400 | 1,200 |
