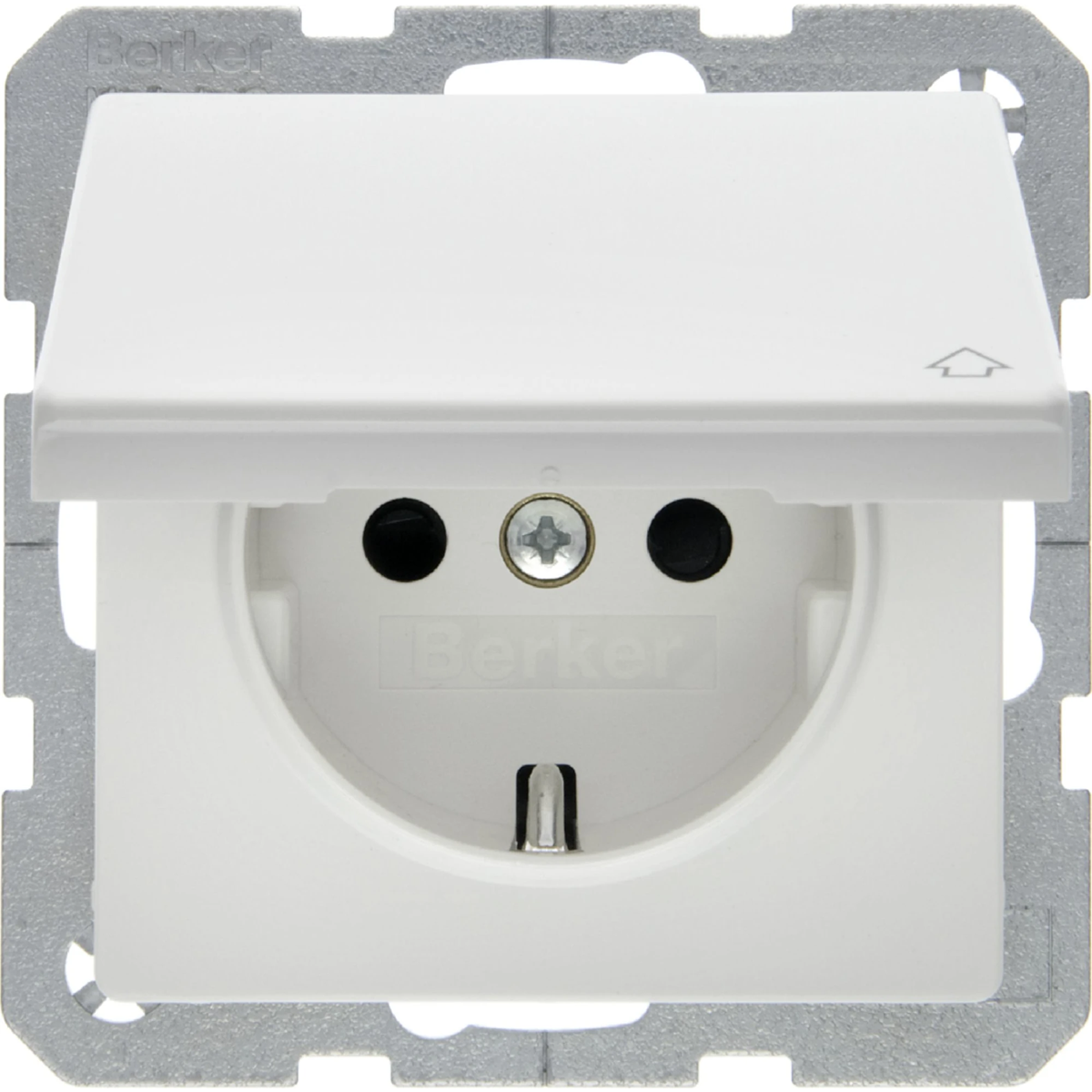

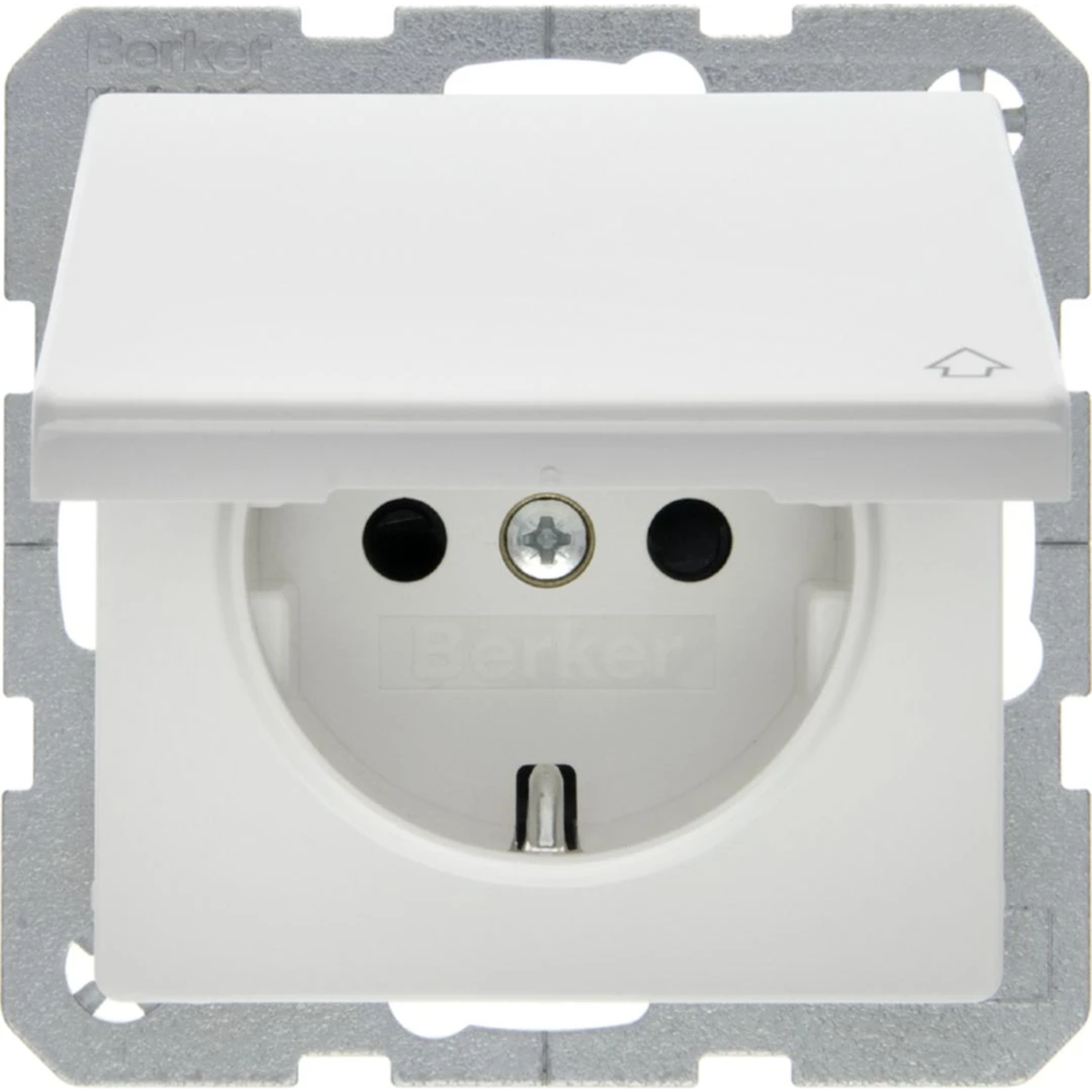

Q.1/Q.3 SCHUKO socket with a self-closing cover

Click on the photo to enlarge

Q.1/Q.3 SCHUKO socket with a self-closing cover
BERKER

Q.1/Q.3 SCHUKO socket with a self-closing cover 47516089

local index:
MEB021BERK
Catalog No:
47516089
EAN code:
4011334313328
Price:
14,22 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

SCHUKO earthed socket, complete, with cover, Berker Q.1/Q.3 series.

  • with self-closing
Print the product sheet Report an error

Technical data

  • Depth [mm]
    47.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Q.1 Q.3 Q.7
  • Width [mm]
    71
  • Ground
    schuko
  • Degree of mechanical protection
    IK02
  • Accurate color
    Snow white
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Additional information
    Self-closing lid
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Surface finish
    velvet
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Exact material
    Duroplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    no
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Other
  • With hinged lid
    yes
  • Label space/information surface
    no
  • RAL-number (similar)
    9010
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    yes
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    47.5 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    2
  • With signal lamp
    no
  • Number of units
    1
  • Number of phases
    1
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    yes
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK02
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm
